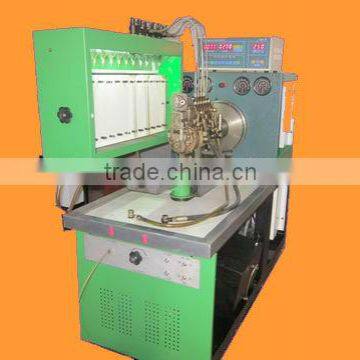

HY-WKD Diesel Fuel Injection Pump Electrical Test Bench/instrument/equipment

Name: HY-WKD Diesel Fuel Injection Pump Electrical Test Bench/instrument/equipment
Brand: Haiyu
SKU: 114682011
Availability: InStock

US$ 3,000 - 6,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Haiyu

Model Number:

HY-WKD

Taian Haiyu Machinery Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Haiyu

Model Number HY-WKD

Power Electronic

Usage Auto Testing Machine

Specifications

Injection Pump Test Bench
1.Power: 11kw
2.Voltage: 220V, or 380V.
3.Three phase four wire.
4.Cast iron operation platform

Injection Pump Test Bench

Power	11KW/15KW
Speed Range	stepless frequency conversion, multi-gear speed overhead, speed :50-400 circle/min or at will
Number of station can be debugged	12
Fuel supply	0-0.4MPa(low pressure) 0-4MPa(high pressure)
Overall dimension	length:2100mm width:700mm height:1470mm
Net weight	1000kg
Function	debugging the uniformity and quantity of the oil supply of each cylinder in injector pump
	debugging the test point and interval angle of oil supply of injector pump
	debugging the performance of different speed governor
	checking the tightness of injector pump
	Testing the quantity of oil return of distribution pump
	checking pressure compensator of distribution pump
	measuring the pressure of pump chamber
	measuring the advance angel
	measuring the travel of gear lever
