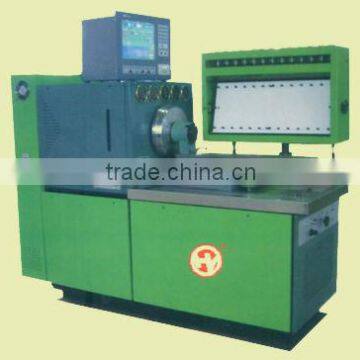

Automatical Control,test Inline Pump Test Bench

Name: Automatical Control,test Inline Pump Test Bench
Brand: Haiyu
SKU: 114681971
Availability: InStock

Negotiable MOQ: 1 Quarter (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Haiyu

Model Number:

HY-WKD Fuel Injection Pump Test Bench

Taian Haiyu Machinery Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Haiyu

Model Number HY-WKD Fuel Injection Pump Test Bench

Power Other, Electronic, 11KW/15KW

Usage Auto Testing Machine

Specifications

1.test bench
2.Measuring the advance angel
3.Measuring the travel of gear lever
4.Measuring the pressure of pump chamber

Power	11KW/15KW
Speed Range	stepless frequency conversion, multi-gear speed overhead, speed :50-400 circle/min or at will
Number of station can be debugged	12
Fuel supply	0-0.4MPa(low pressure) 0-4MPa(high pressure)
Overall dimension	length:2100mm width:700mm height:1470mm
Net weight	1000kg
Function	debugging the uniformity and quantity of the oil supply of each cylinder in injector pump
	debugging the test point and interval angle of oil supply of injector pump
	debugging the performance of different speed governor
	checking the tightness of injector pump
	Testing the quantity of oil return of distribution pump
	checking pressure compensator of distribution pump
	measuring the pressure of pump chamber
	measuring the advance angel
	measuring the travel of gear lever

Model of test stand	HY-WKD
Rotation speed range of main shaft	0~4000
Rotation direction of main shaft	Positive, negative
Testable cylinders of pump	12
Maximum output power	5.5/7.5/11/15/18.5
Height from center line of main shaft to work table(mm)	125
Oil supply pressure of fuel system(MPa)	Low pressure≥0.4 High pressure≥4.0
Supply capacity of fuel system(l/m)	≥8
Oil measuring frequency	0~1000
Control temperature of fuel oil(°C)	40±2
D.C. power source	12/24V
Power of motor	7.5/11/15kw
Pressure of air way(Mpa)	-0.1~1
Overall dimension	1820mm×850mm×1800mm
Weight of test stand	750kg
