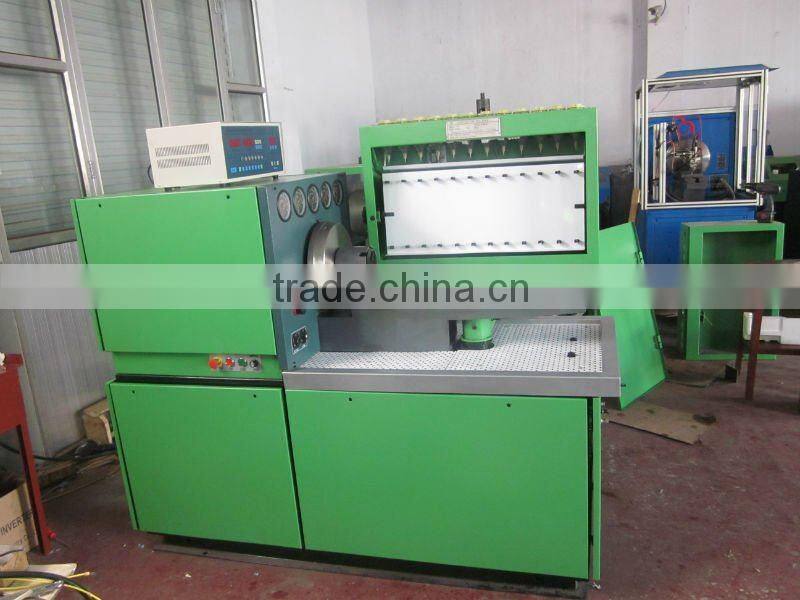

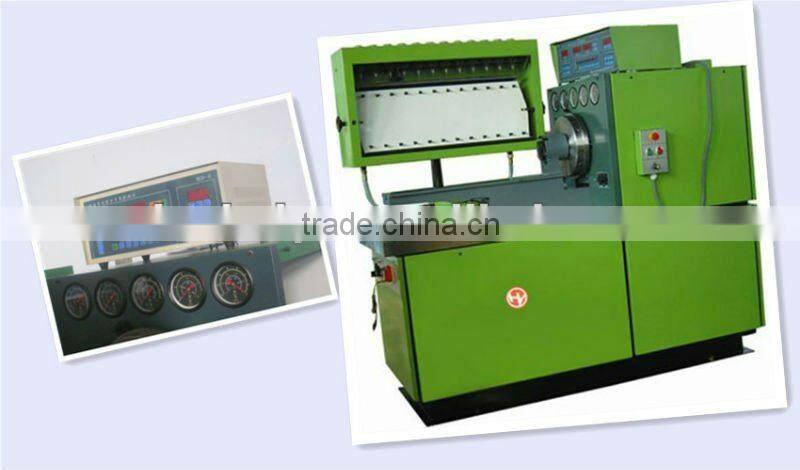

Haiyu , HY-WK Injection Pump Test Bench , Easy Operation

Name: Haiyu , HY-WK Injection Pump Test Bench , Easy Operation
Brand: Haiyu
SKU: 114680385
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Haiyu

Model Number:

HY-WK

Taian Haiyu Machinery Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Haiyu

Model Number HY-WK

Power Electronic

Usage Auto Testing Machine

Specifications

WK fuel injection pump test machine
1Secondary filter
2Filtering precision:10um
measuring the travel of gear lever

HY-WK Test Machine

1High tensile strength

2good toughness

3high resistance of vibration

4,Certification:ISO9001:2008

Power	11KW/15KW
Speed Range	stepless frequency conversion, multi-gear speed overhead, speed :50-400 circle/min or at will
Number of station can be debugged	12
Fuel supply	0-0.4MPa(low pressure) 0-4MPa(high pressure)
Overall dimension	length:2100mm width:700mm height:1470mm
Net weight	1000kg
Function	debugging the uniformity and quantity of the oil supply of each cylinder in injector pump
	debugging the test point and interval angle of oil supply of injector pump
	debugging the performance of different speed governor
	checking the tightness of injector pump
	Testing the quantity of oil return of distribution pump
	checking pressure compensator of distribution pump
	measuring the pressure of pump chamber
	measuring the advance angel
	measuring the travel of gear lever
