Help CenterHY-WKD Bosch Fuel Pump Test Bench(same as EPS711)
Related Products
-
Hot Seal !!!fuel Injection Pump Test Bench ( WKD) Haiyu Test BenchUS$ 3,000 - 4,800MOQ: 1 Set -
Support English HY-WK Fuel Injection Pump Test Bench ( LED )US$ 3,000 - 4,500MOQ: 1 Set
-
HY-WK Injection Pump Test Bench (12 Cylinder Test Bench )NegotiableMOQ: 1 Set
-
HY-WK Fuel Injection Pump Test Bench LED Display MachineNegotiableMOQ: 1 Set
-
HY-NK Injection Pump Testing Equipment,mechanical Speed RegulatorsNegotiableMOQ: 1 Set
Specifications
Pump test benchCast iron operation platform
Stable rail pressures
Secondary filter

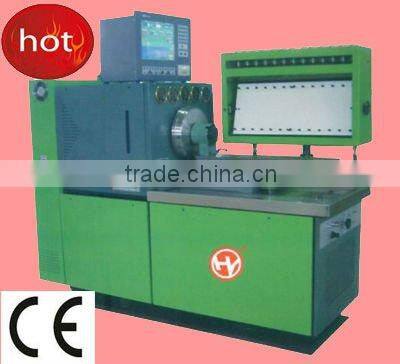

HY-WKD Diesel Fuel Injection Pump Test Bench(same as EPS711)
Features
1. Primary motor frequency changing speed
2. Large output torque, small fall speed value, high precision measurement
3. Ten kind of rotation speed presetting
4. Digital display of rotation speed, counting, temperature
5. Automatic control of fuel temperature
6. Positive and negative system with air resource
7. D.C.Supply 12V,24V
8. Protection system of over pressure, over load and over heat
Function>>
*Checking of sealing of fuel injection pump body;
*Measurement of the advance angle;
*Measurement of rack travel;
*Reliability test of fuel injection pump assembly;
*Reliability test of fuel injector’s assembly;
*Reliability of rotation speed regulators and advance device;
* Life test of major components and parts like fuel injection pumps.
Parameters
1.Rotation speed:0-4000 rpm/min
2. Fuel Tank volume: 60L
3. Automatic control of fuel temperature: 40±2°C
4. Test fuel filtering precision: 5μ
5. D.C. supply: DC12V/24V
6. Fuel supply pressure:
Low pressure: 0-0.4MPA
High pressure: 0-4MPA
7. Air pressure: 0.0.3MPA
8. Power supply: 380V-three phase or 220V-three/one phase
Power |
11KW/15KW |
Speed Range |
stepless frequency conversion, multi-gear speed overhead, speed :50-400 circle/min or at will |
Number of station can be debugged |
12 |
Fuel supply |
0-0.4MPa(low pressure) 0-4MPa(high pressure) |
Overall dimension |
length:2100mm width:700mm height:1470mm |
Net weight |
1000kg |
