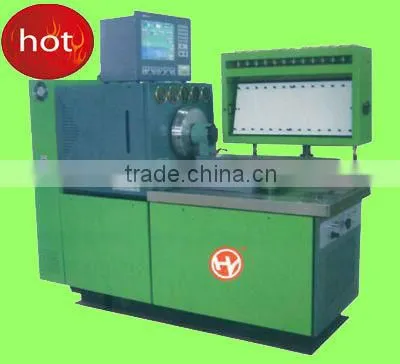

HY-WKD Bosch Diesel Test Bench,Test VE Pump

Name: HY-WKD Bosch Diesel Test Bench,Test VE Pump
Brand: Haiyu
SKU: 114676451

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Haiyu

Model Number:

HY-WKD

Taian Haiyu Machinery Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Haiyu

Model Number HY-WKD

Specifications

bosch diesel test bench
1.Filtering precision:10um
2.Secondary filter
3.Mechanical pump
4.Test VE Pump

HY-WKD Injector Pump Test Bench HIGH QUALITY

>>>>Characteristics:

1.Main motor frequency conversion adjust speed(0~4000 r/m adjust)

2. Small value of reduction of speed, large output torque

3. High measurement accuracy

4. The function of overvoltage, overload and short circuit

5. Many kinds of rotation speed presetting

6. Constant temperature controlled

7. Ultra low noise

8. Built-in air supply

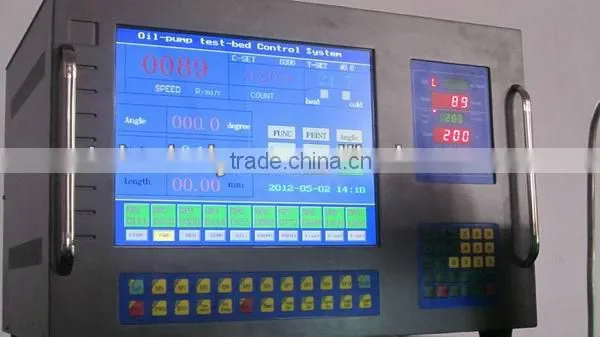

9. Advanced angle, rotation speed, count, temperature, are displayed on 17’’LCD

10. Pressure, rack bar are displayed on 17"LCD ( Price is extra)

10.Operating position: arbitrary side of the two work sides of the test bench

>>>>>Parameter:

Power	11KW/15KW
Speed Range	stepless frequency conversion, multi-gear speed overhead, speed 50-400 circle/min or at will
Number of station can be debugged	12
Fuel supply	0-0.4MPa(low pressure) 0-4MPa(high pressure)
Overall dimension	length:2100mm width:700mm height:1470mm
Net weight	1000kg
Function	debugging the uniformity and quantity of the oil supply of each cylinder in injector pump
	debugging the test point and interval angle of oil supply of injector pump
	debugging the performance of different speed governor
	checking the tightness of injector pump
	Testing the quantity of oil return of distribution pump
	checking pressure compensator of distribution pump
	measuring the pressure of pump chamber
	measuring the advance angel
	measuring the travel of gear lever
