Help CenterTesting 12-cylinder Fuel Injection Pump,HY-NK Fuel Injection Pump Test Bench
Related Products
-
HY-WKD Fuel Injection Pump Test Bench With Built-in Air SupplyNegotiableMOQ: 1 Set -
HY-WK Diesel Injection Test Bench With 11kw MotorNegotiableMOQ: 1 Set
-
HY-WK Diesel Injection Test Bench With 11kw MotorNegotiableMOQ: 1 Set
-
HY-WKD Bosch Fuel Injection Pump Test Bench, Industrial Computer ( CE )NegotiableMOQ: 1 Set
-
WKD Fuel Injection Pump Test Bench , CE Test Bench, Industrial Computer ControlNegotiableMOQ: 1 Set
Specifications
fuel injector test benchCast iron operation platform
three-phase four wire
Delixi electrical component
BOSCH pump

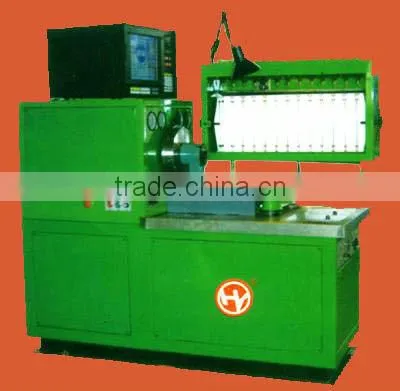

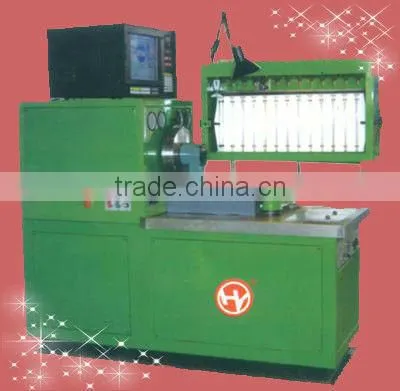

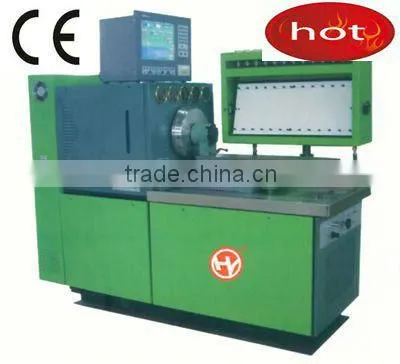

HY-NK Fuel Injector Pump Test Bench
1. Adjusting each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Adjusting the performance of different speed regulator.
4. Checking of the sealing of injection pump.
5. Testing of oil return of distributing pump.
6. Checking of the pressure compensatory device of distributing pump.
7. Measuring of the internal pressure of distributor pump.
8. Measuring of the advance angle.
Technical Parameters(BFC) | |||
|
3-phase power supply |
380V±10% |
|
|
|
Output power |
5.5/7.5/11/15/18.5/22kw |
Testing high pressure of oil supply |
0-3.5MPa |
Mode of speed regulation |
Frequency control |
Testing low pressure of oil supply |
0-0.35MPa |
Oil temperature automatic control |
40±2°C |
Maximal Injection quantity |
10L/Min |
Adjustable rotation speed range |
0~4000rpm |
VE internal pressure |
0-1.6MPa |
Small graduated flask volume |
45ml |
Range of air supply pressure |
0-0.15MPa |
Volume of oil tank |
60L |
Electric heater
|
1kW/220VAC |
DC. Supply |
12/24V |
Center height |
125mm |
|
Testing cylinders |
12 |
Overall dimensions (mm) |
2300*1200*1800mm |
Volume oil preset number |
0-1000times |
Gross weight (kg) |
1300kg |
Power |
11kw/15kw |
Speed range |
stepless frequency conversion, multi-gear speed overhead |
Speed range |
50-400 rpm or at will |
Debugged station |
12cylinders |
fuel supply |
0-0.4MPa(low pressure) 0-4MPa(high pressure) |
Filtering precision |
10um |
Fuel system |
using radiator, air temperature display and automatic control |
overall dimension |
1800×750×1410(mm) |
net weight |
1000kg |
