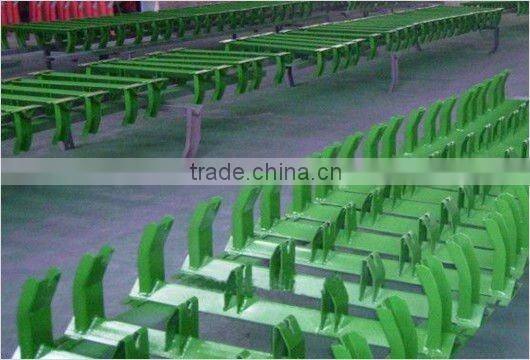

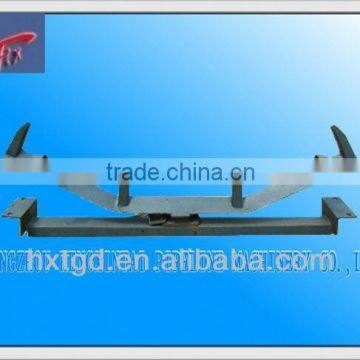

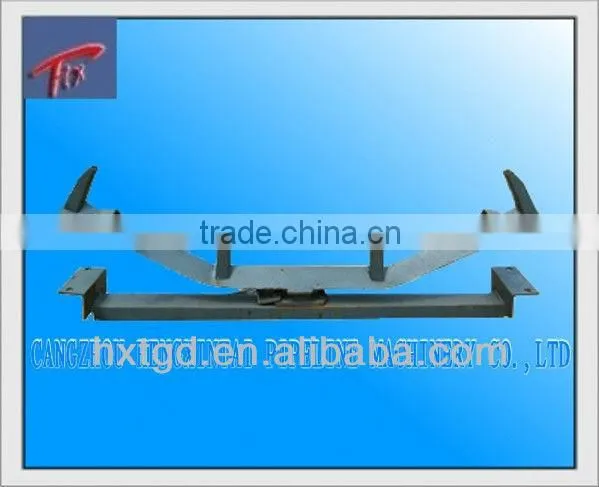

Conveyor roller frame
Standard Diameter |
Length Scope(mm) |
Bearings Type(Min-Max) |
Shell Wall Thickness |
|
mm |
Inch |
|
|
|
63.5 |
2 1/2 |
150-3500 |
6204 |
3.0mm-3.75mm |
76 |
3 |
150-3500 |
6204 205 |
3.0mm-4.0mm |
89 |
3 1/3 |
150-3500 |
6204 205 |
3.0mm-4.0mm |
102 |
4 |
150-3500 |
6204 205 305 |
3.5mm-4.0mm |
108 |
4 1/4 |
150-3500 |
6204 205 305 306 |
3.5mm-4.0mm |
114 |
4 1/2 |
150-3500 |
6205 206 305 306 |
3.5mm-4.5mm |
127 |
5 |
150-3500 |
6204 205 305 306 |
3.5mm-4.5mm |
133 |
5 1/4 |
150-3500 |
6205 206 207 305 306 |
3.5mm-4.5mm |
140 |
5 1/2 |
150-3500 |
6205 206 207 305 306 |
3.5mm-4.5mm |
152 |
6 |
150-3500 |
6205 206 207 305 306 307 308 |
4.0mm-4.5mm |
159 |
6 1/4 |
150-3500 |
6205 206 207 305 306 307 308 |
4.0mm-4.5mm |
165 |
6 1/2 |
150-3500 |
6207 305 306 307 308 |
4.5mm-6.0mm |
177.8 |
7 |
150-3500 |
6207 306 307308 309 |
4.5mm-6.0mm |
190.7 |
7 1/2 |
150-3500 |
6207 306 307308 309 |
4.5mm-6.0mm |
194 |
7 5/8 |
150-3500 |
6207 307 308 309 310 |
4.5mm-6.0mm |
219 |
8 5/8 |
150-3500 |
6308 309 310 |
4.5mm-6.0mm |
(a) Shaft: Dia.20mm/25mm/30mm in bright drawn steel material
(b) Shaft end: Be chamfered as 15mm and machined simultaneously
(c) Bearing: Single and double row deep groove ball bearing 2RZ and 2Z with C3 clearance
(d) Rubber: Heat vulcanization rubber. Wear resistant, anti-fire
(e) Labyrinth Seals: Multi-labyrinth seals and outboard circlip as retention cap
(f) Lubrication: Grease is lithium soap type grease with rust inhibitors
(g) Welding: Mixed gas shielded arc welding end
(h) Save costs of conveyor belt on maintenance as concentric design that decreases vibration
We can support series of conveyor idler(roller)/pulley/bearing housing !
We will quote to you as your specific information or as drawings.
