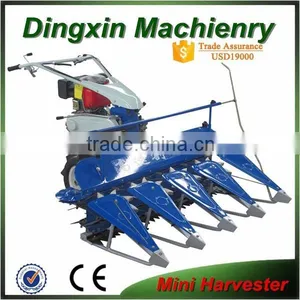

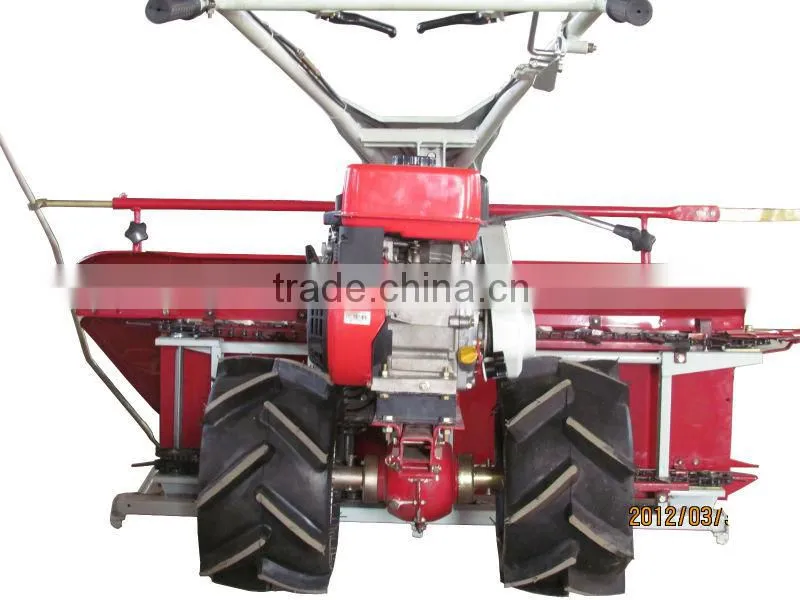

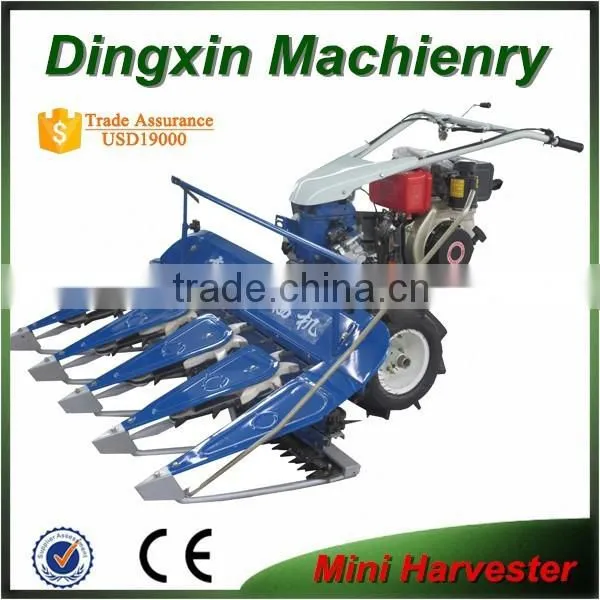

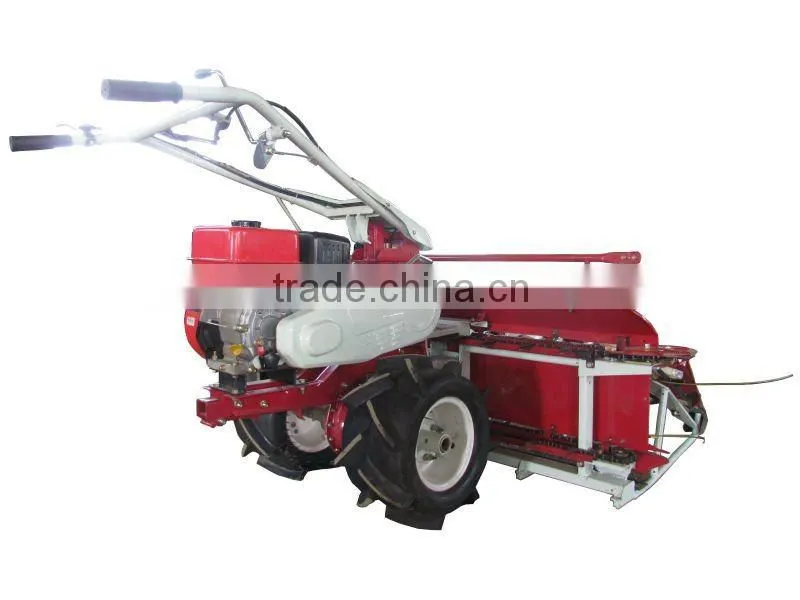

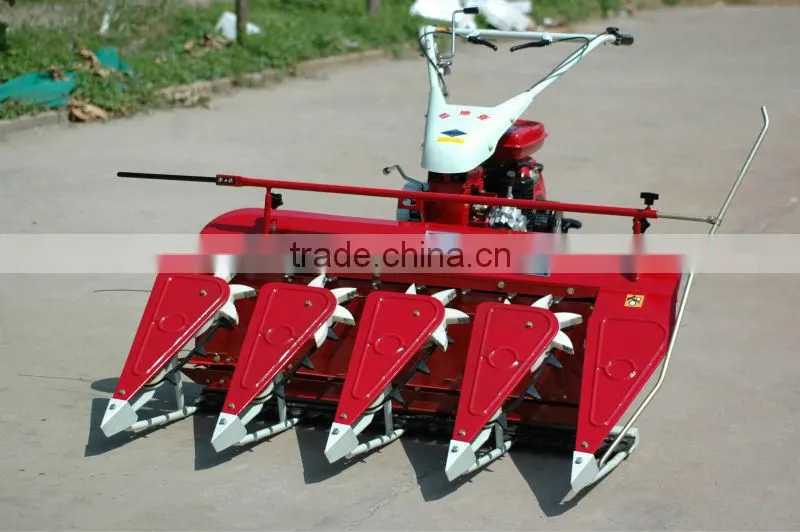

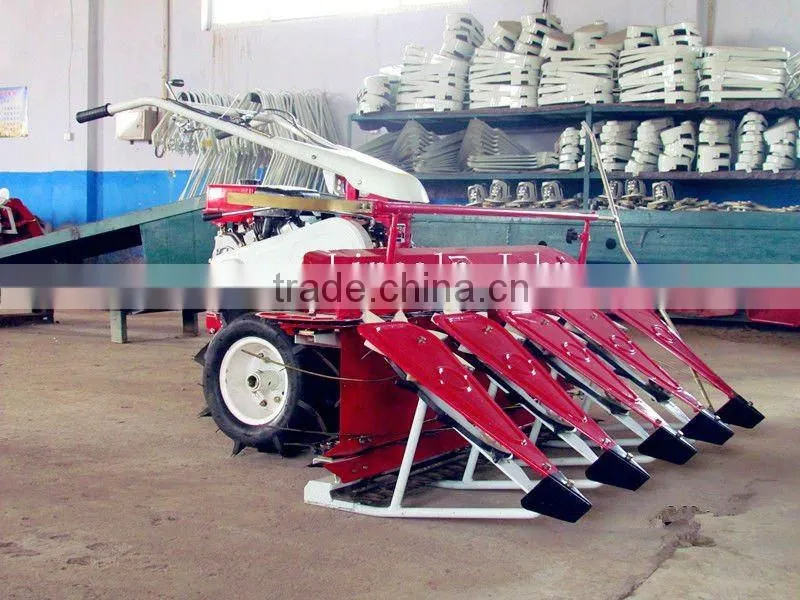

4S-20 small wheat Harvester
This is a very popular household type wheat, rice, reed, straw plant harvester,
its operation is convenient,the armrest rotating flexible, stronge engine power,
uses shaft drive and four lines harvest.
The engine uses 7.5HP diesel engine, its power is strong.
The blade is processed with high quality raw material and heat treatment,
good abrasion resistance.
It adopts shaft drive, the torque is large, the tire use broaden herringbone type,
which can move smoothly.
The width of the tire can be adjusted and the harvest speed also can be adjusted.
The convey finger tip covered by metal plate. Armrest can adjust up and down or so,
suitable for different size of harvesting operation.
Model |
4S-120 |
Cutting-Platform Way |
Vertical |
Cutting Width(mm) |
1200 |
Placing Type |
Sidewise & Banded Placed |
Productivity(hm²/h) |
≥0.3 |
Overall Dimensions(L*W*H mm) |
1850*1750*1060 |
Net weight(kg) |
Around 210 |
Matched Power(kw) |
≥4.0 |
Drive system |
Belt and shaft drive |
Working line number |
4 lines |
Number of operator |
1 |
Loss rate |
≤1% |
Stubble Height |
≤120mm |
Thanks for your attention on our products.
Any unclear pls feel free to contact us.
Candice Zheng Skype:licnjohnzheng
86-15964567196
