Help CenterCE Approved Alarm Flap Turnstile With IR Sensor
Related Products
-
CE Approved Waist High Turnstile,tripod Turnstile,Double Tripod Turnstile GAT-102AUS$ 560 - 680MOQ: 1 Piece -
CE Approved Waist High Turnstile,tripod Turnstile ,turnstile Gate GAT-102AUS$ 500 - 680MOQ: 1 Piece
-
Customized CE Dustproof Stainless Steel High Turnstile Tripod Turnstile With RFID ReaderNegotiableMOQ: 1 Piece
-
GRAND-ACCESS CE Approved 304 Stainless Steel Pole Swing TurnstilesNegotiableMOQ: 1 Set
-
CE Approved Flap Barrier Turnstile Gate ,fingerprint TurnstileUS$ 1,150 - 1,550MOQ: 1 Set
Speed gate Function:
1 Reasonable reliable design, low noise, smooth operation and long service life.
2 Opening arm speed can be set to meet the requirements of different occasions
3 With maintenance and use of fault self-test and alarm functions, user-friendly
4 With multiple operating modes to choose from, you can bi-directional card reader or fingerprint-limiting; While reader or fingerprint, the forbidden line of the other direction; One side of the card reader or fingerprint, and the other direction of free passage.
5 Anti-pinch, anti-bruise features, meet resistance in the arm reset process, within the prescribed time, motor automatically stops working, the default delay after reset until the reset date, and the intensity is very small(≤ 2Kg)
6 With function of scour protection, the gate signal is not received, the arm automatically locked
7 Arm adjustable with synchronization (for a double pendulum)
8 with automatic reset function, open the gate, if the passage fail within the stipulated time, the systemwill automatically cancel the prevailing authority.
9 Anti-trailing, to prevent too many people of non-permitted
10 with automatic reset function, open the gate, if the passage fail within the stipulated time, the systemwill automatically cancel the prevailing authority, and back to the c
11 Anti-Water, anti-sun, anti-cold, and anti- high temperature
12 Using a unique drive system, so that the gates locked at zero, unlock more accurate and reliable
13 Can be used in conjunction with other types of channel products together.
Spec. Data:
1. Cabinet Material: 304, 1.2 GB stainless steel
2. Internal structure: Steel frame structure
3. Arm wing material: Stainless steel, acrylic, etc.
4. Volume: 1400× 280× 980MM
5. Voltage: DC24V± 10%, 50Hz
6. Control signal: Relay signal input
7. Working temperature: -30 ºC~ 60ºC
8. Lighting Tip: Green passage, red closed to traffic
9. Pass speed: 30 passengers / min
10. Gate opening and closing time: Can be set freely
11. The whole life: A succession of more than 1 million times
12. Input interface: The +12 V level signal or the DC12V pulse signal pulse width> 100ms
13. Working noise: < 65 decibels
14. Waterproof and dustproof to IP32 above
15. Relative Humidity: ≤ 95%, no condensation

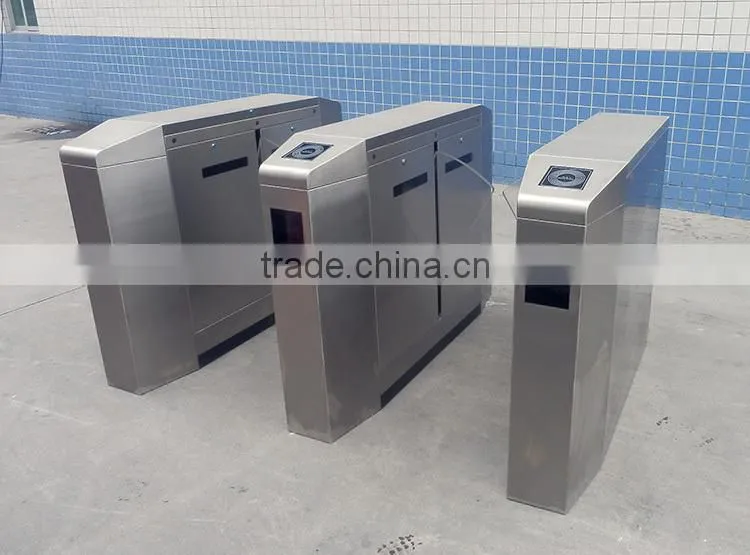

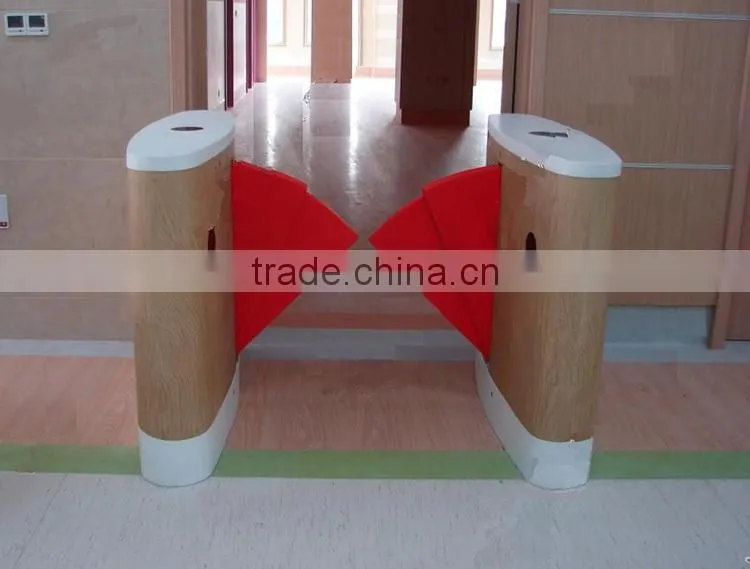

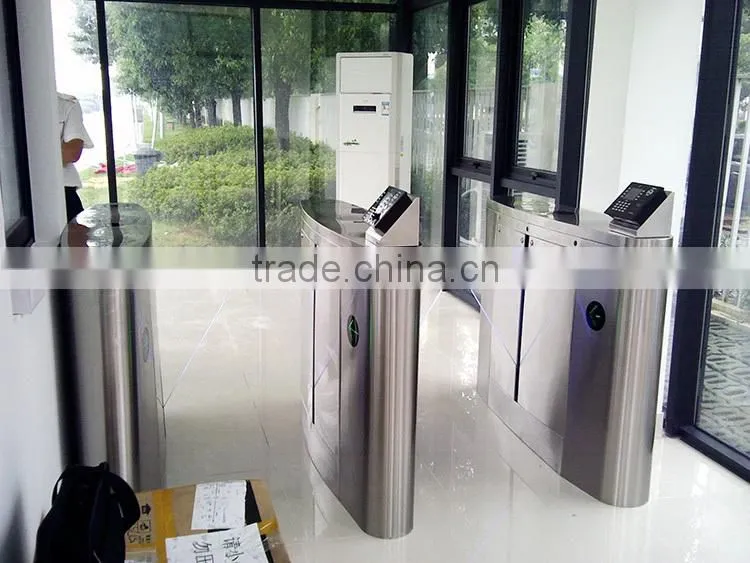

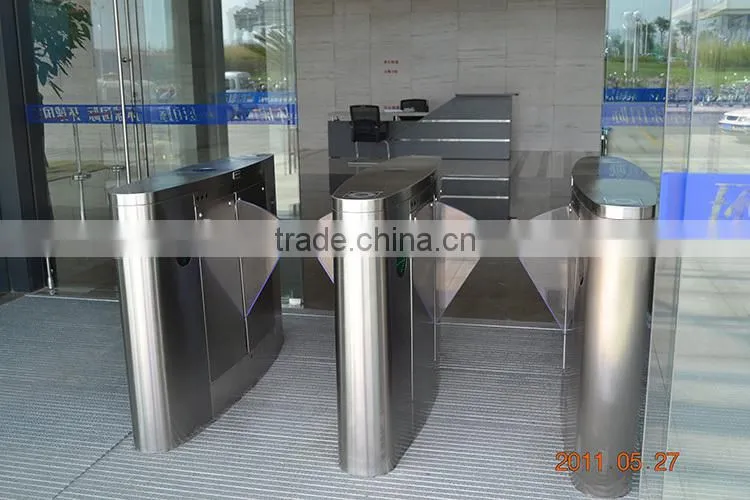

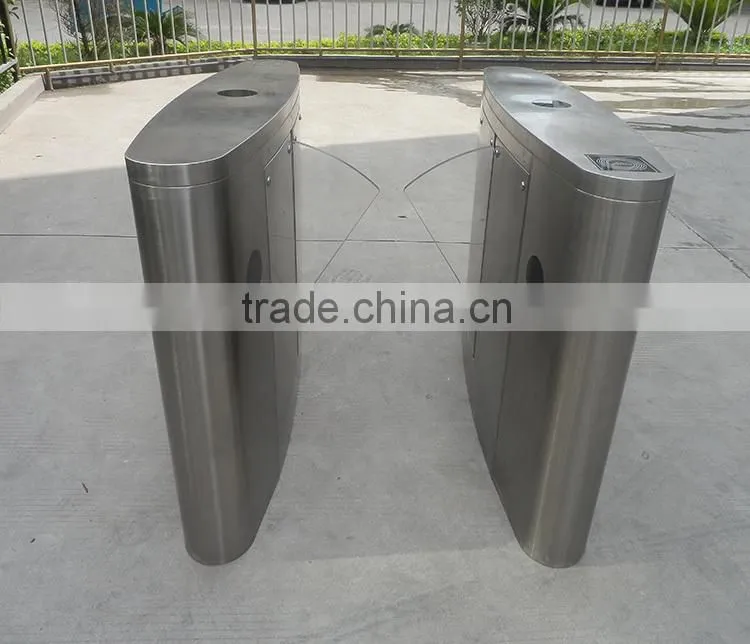

Product picture
We are a high-tech enterprise integrating the development, manufacture and marketing of security products, and were established in 2005, in Shenzhen, China. For our business goal, development strategy and service concept, we have been enjoying a good reputation both in domestic and overseas markets.
Our product range currently consists of turnstile, biometric access control, smart card system, Metal detector system. Featuring high quality standards, stylish yet highly functional designs, competitive prices and good services, our products have been successfully exported to more than 50 countries all over the world, enjoying a Good Reputation.
We have a galaxy of high-level technical, management and marketing personnel with hard-working, modest and honest quality. With an R&D center, a specialized factory, more than 4000 square meters of workshops, and strong customer service capability, we really have the confidence to make great achievements continuously. We also hope to be your good agent in China to help you source interested models. With our good services and best quality products at competitive prices, we are faithful to help you capture your market.
We are looking forward to creating miracles through win-win cooperation with international partners in the world trade.
Factory
Certificate
