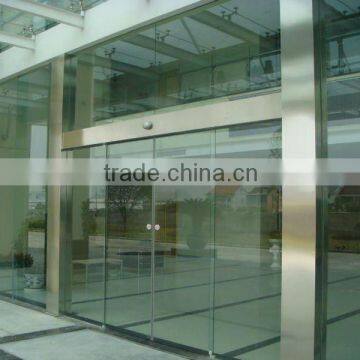

Automatic Glass Sliding Door Double Open Modle and Single Open Modle

Specifications

Automatic Glass Sliding Gate
Two Model:
Double Open Modle and Single Open Modle

Automatic Glass Sliding Gate



Technical Parameter
Two Model:Double Open Modle and Single Open Modle
Input voltage:AC200-250V 50/60Hz
Working Temperature:-20~+50centigrade

Motor spec:
parameter:DC24V/60W brushless machine
quiescent current:0.095A
Working current:1.6A for Double Open Modle,1.35A for Single Open Modle

Door leaf Weight: </=150Kg
Door leaf width:600-1250mm for the Double Open Modle,700-1300mm for the Single Open Modle

Open Speed: 10-50cm/s adjustable
Close Speed:10-50cm/s adjustable
The time of Opening:0-11s adjustable
Hand Push:</=3Kg
Normally the tracks length is : 2 times the net width of door .
Length of glass to double-open gate: net width of door + 100mm
Length of glass to single-open gate: net width of door + 50mm
