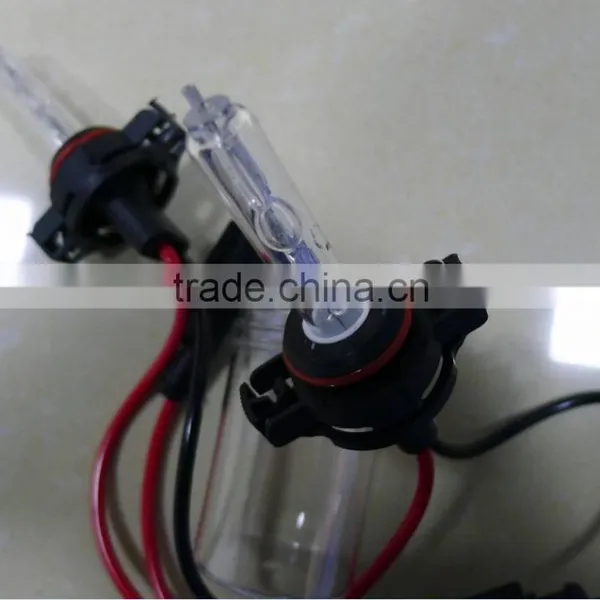

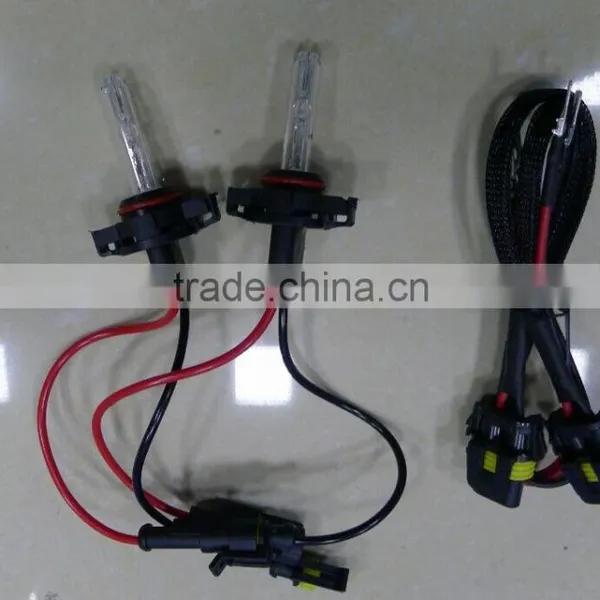

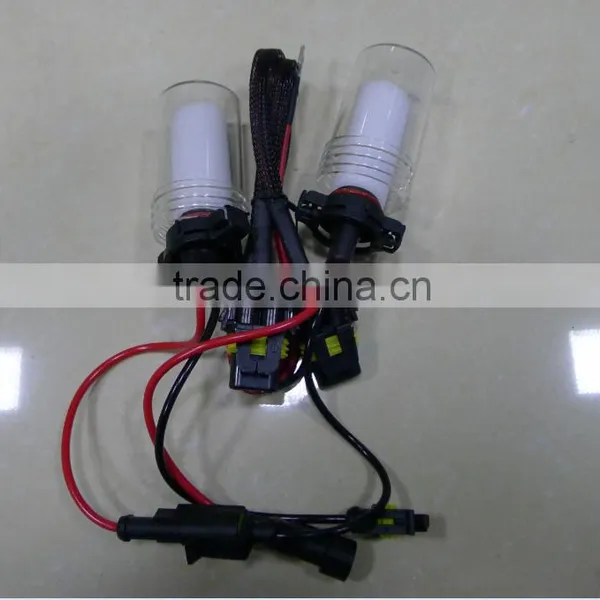

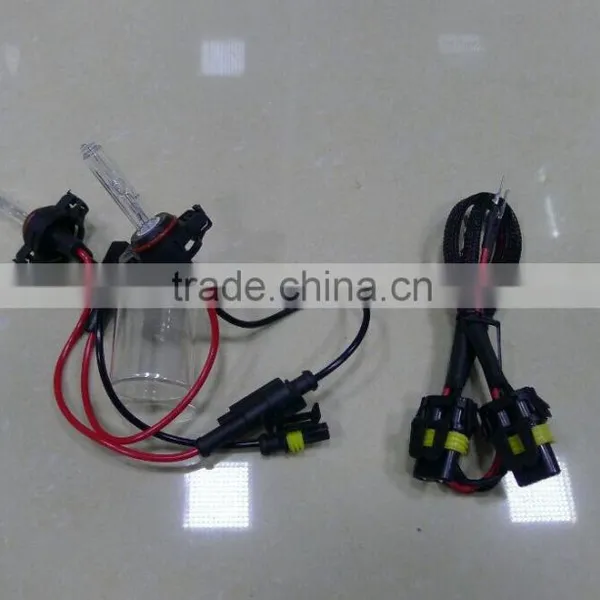

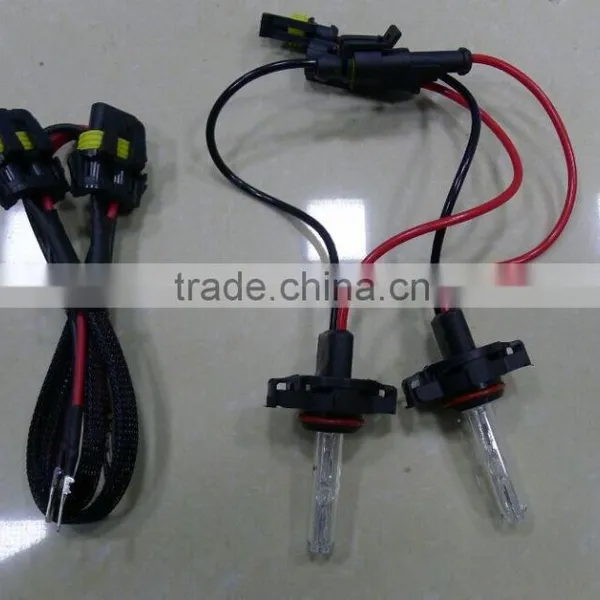

35W, Xenon 5202, HID 5202 bulbs, hid xenon h4 prices

Xenon HID kit, Xenon Bulbs, HID bulbs detail,

Xenon Bulbs, HID bulbs

White boxes of Xenon Bulbs/ HID bulbs

Xenon HID kit, HID ballasts. Xenon Ballst

1)Input Voltage Range DC9V~32V

2)Typical Operating Voltage DC12.8V

3)Typical Operating Voltage DC24V

4)Typical Input Current 3.2A, Condition: DC 12.8V Input

5)Typical Input Current 1.8A, Condition: DC 24V Input

6)Max. Inrush Current 15A

7)Output Power 33W±2W(Constant Power)

8)Output voltage AC85V±15V (Square Pulse, RMS70V~100V)

9)Output Frequency 260Hz~280Hz

10)Efficiency: ≥83%, Condition:

11)Ignition pulse Typical peak Voltage 23kV

12)Typical duration 1s

13)Cooling method Natural cooling

14)Input Protections Under voltage protection at 6V±1V

                               Over voltage protection at 34.5V±1V

                               Input connection-reverse protection

15)Output Protections Short circuit protection between two outputs

                                   Open circuit protection between two outputs

Operating temperature -30°C~+ 85°C

Storage temperature -40°C~+105°C

Xenon Kit, HID kits, XENON HID KITS,

35W,12V, AC, DC, 35W,24V, AC, 55W,12V.55W,24V

Our boxes is full, Many kinds of boxes is optional

Certificate for the goods

CE  E13  IP67  ISO  FCC

For the shipping

The different order quantity with the different shipment way:

1) the small order by DHL, UPS ,Fedex, TNT, EMS

  if you enquire the shiping cost, please tell us the country and Post code

2) more big and needed urgent order by air,there are many airline company are optional

 if you enquire the shiping cost, please let us know the airport name and approximate order.

3) for the big order by sea,the shipping cost is low.

if you enquire the shipping cost, pleas let us know the port of name and approximate order.

4) we also welcome you to choose your forwarders to deliver the package,

we will send the package to your forwarders warehouse.

All Our products with warranty

1) Most of products is one year warranty

2) Different model with different warranty detail:

  A: Car led bulbs T10,BA9S,S25,1156,1157, BA15S, PCB, T20,3156,3157 ,Festoon, 18month warranty,

  B: Xenon LED bulbs: H1,H3,H4,H7,H8,H9,H11,9005,9006, H13,9007.H4Bixenon. one year warranty,

  C: HID Xenon Ballasts: VKF11,VK07 VKF06, 3year warranty, VKF10.VKF01,VKA03, 18month warranty.

  D: LED headlight, one year warranty.

  E: LED Working Light , LED Light bar, all model are on year warranty.

3) How to resolve the warranty?

please cut the wire and send the picture to us by Email.

4) How to get the warranty?

we will add the new products to your new order together.

Our Showroom, it local in YongFu Road, it is center of auto accessories In China

Our warehouse is full, we can send the package in 1-3days.it is due to our full warehouse

All of them are car light, LED car bulbs, Xenon HID.
