Specifications
Long Range Reader1)Wiegand (26 / 34 / 42-bit), RS232(9600, n, 8, 1), RS485
2)Range:Within 1M
3)125KHZ
125KHZ 1M RFID Long Range Reader for Parking System
Features:
1) Low cost solution
2) Supports EM technology,125kHz
3) Comprehensive interface
4) Build-in antenna
5) Permanent reading and sending of ID number
6) Electronic potted, weather proof
7) Robust casing for harsh environment
8) LED and beeper indication
9) Pigtail for easy installation
10) OEM and ODM are welcome
11) Application: car parking, person / item tracking
Specifications:
1)Interface: Wiegand (26 / 34 / 42-bit), Magstripe, clock and data, RS232
(9600, n, 8, 1), EIA and TTL levels
2) RF frequency: 125kHz (±2kHz, auto tuning)
3) Technology: EM technology, EM4100 cards supported
4) Antenna: integrated antenna
5) Power: 7.5 - 13.6V DC, 300mA typical (200mA at 7.5V)
6) Response time: 200ms
7) Dimensions: 240 x 240 x 50mm
8) Material: ABS
9) Operation temperature: -20 to 60°C
10) Reading distance: 90 - 110cm, depending on transponders

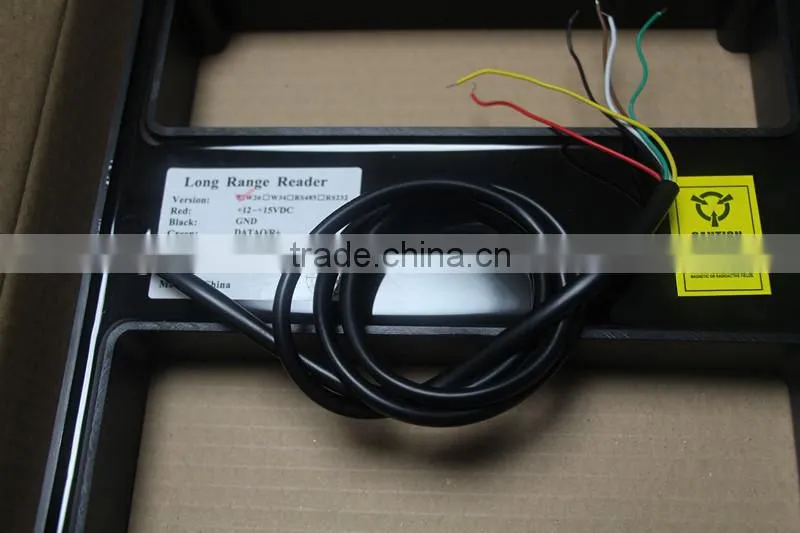

11) Cable: 10-way, 1m long

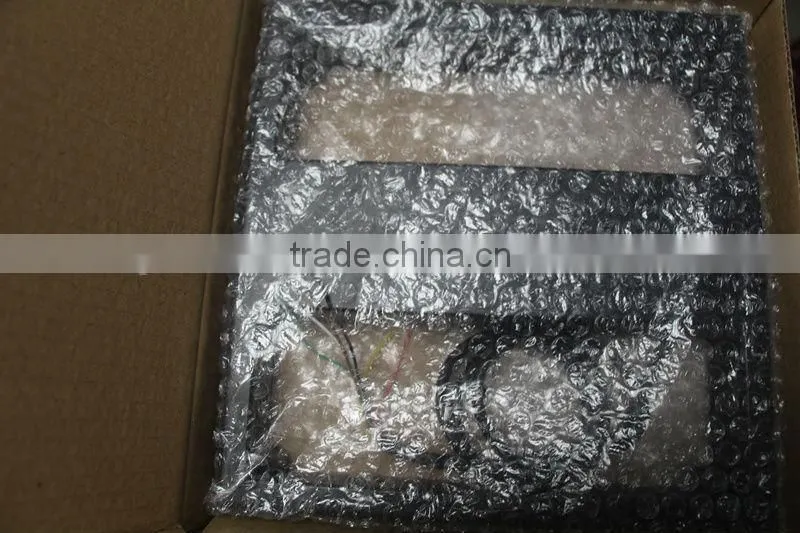

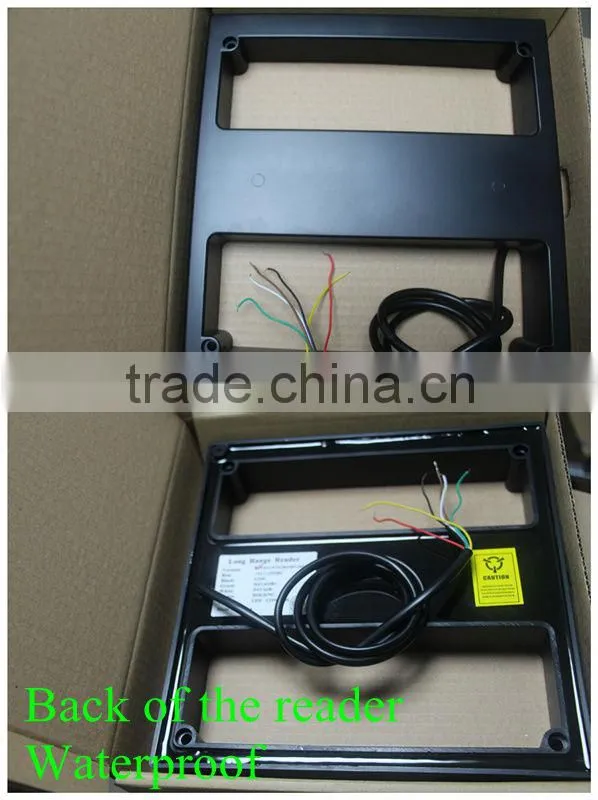

Images:
