Windows XP System,HY-CRI200B-I High Pressure Common Rail Injector and Pump Test Bench

Name and Model

System

Configuration Details

Remarks

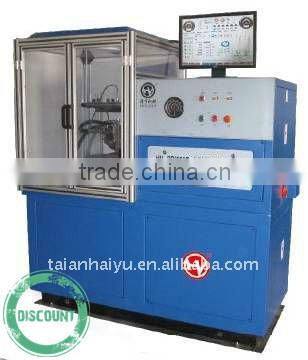

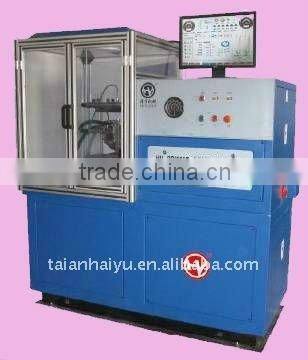

HY-CRI200B-I High Pressure Common Rail Injector Pump Test Bench

Main Engine System

1. Quadrupole electric motor (380V): 15KW. Alpha frequency converter: 18.5KW

2. The main frame is cold box board and aviation aluminum composite structure, cast iron operating platform.

3. Its control type is automatically computer control and display by screen.

4. The precision of weighing oil digital readout (weighing transducer) is 0.1ml.

5. Its revolving speed range is 0~1000r/min (adjustable) (digital readout).

6. Height of main engine center is 125mm.

Fixture Included

Oil Circuit System

1. Fuel delivery: 10L/min.

2. Fuel delivery pressure: 0~1Mpa.

3. Rail pipe is BOSCH.

4. Rail pressure: 0~200Mpa.

5. The rail pipe is controlled by automatically closed cycle, and pressure display (precision±0.1Mpa) with overpressure protection.

6. Oil temperature (adjustable) is controlled automatically, heated by heating pipe and refrigerated through strong refrigeration unit.

7. Its filtering type is tertiary filter.

Electrical equipment

1. It has built-in electrical box and convert box.

2. Short-circuit protection.

Data base

It has more than 400 kinds of standard build-in data, which can be upgraded.

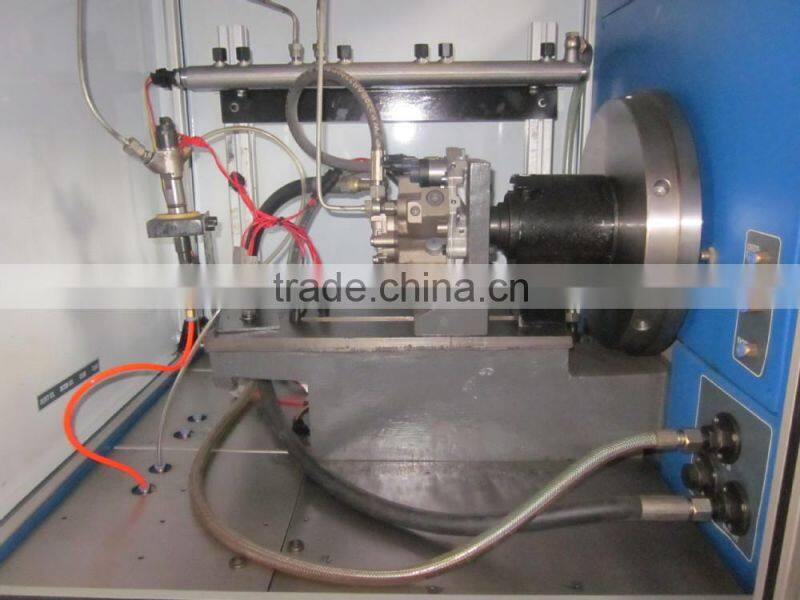

Testing fuel injector and high pressure pump

1. It can test 1 fuel injector every time.

2. It can test 6 fuel injectors at most in the same time (Price is extra).

3. The types it can test including BOSCH, DENSO, DELPHI, and SIEMENS.

Overall dimension

Length: 1600mm, Width: 800mm,

Height: 1695mm

Weight

Net weight: 1000kg.
