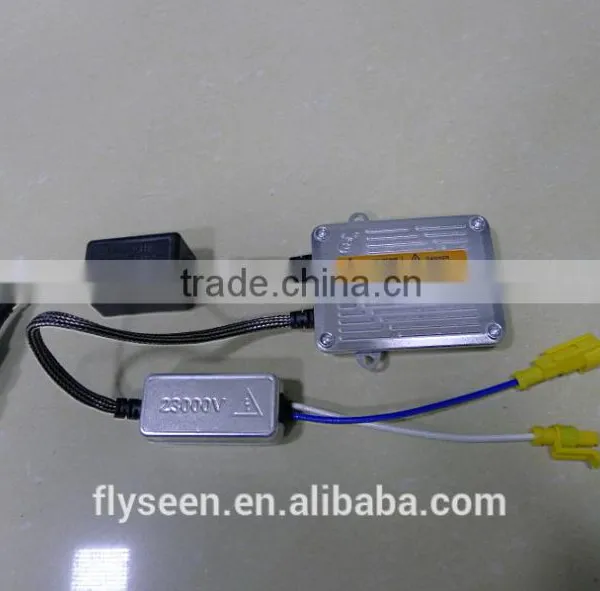

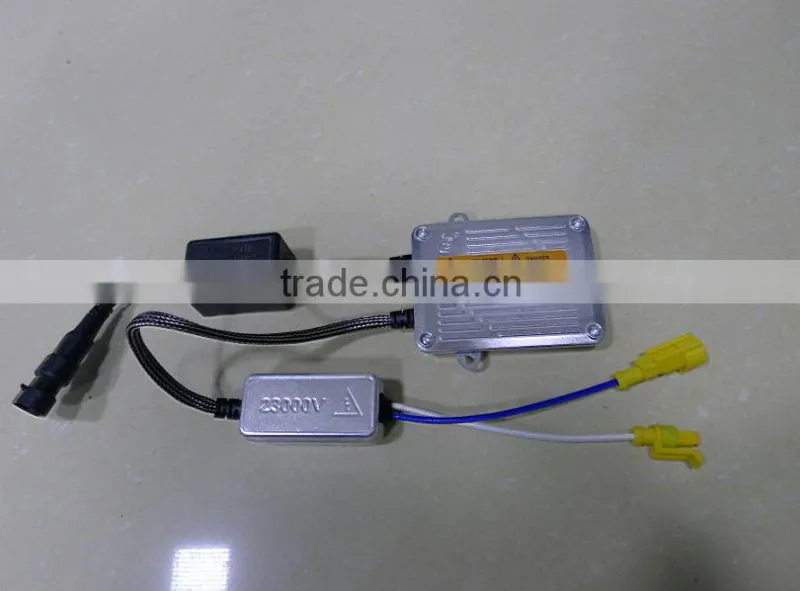

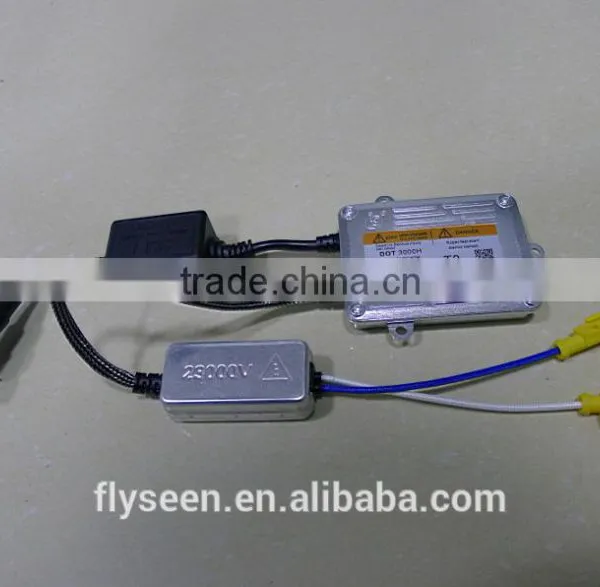

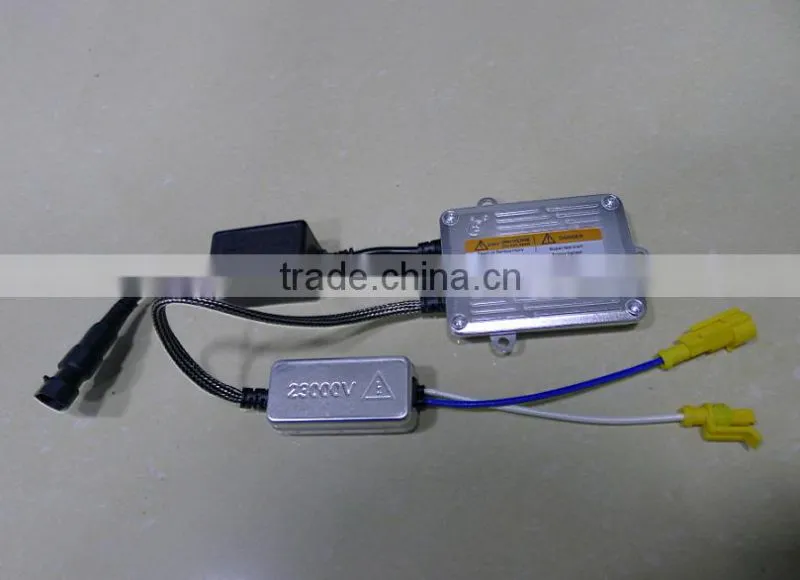

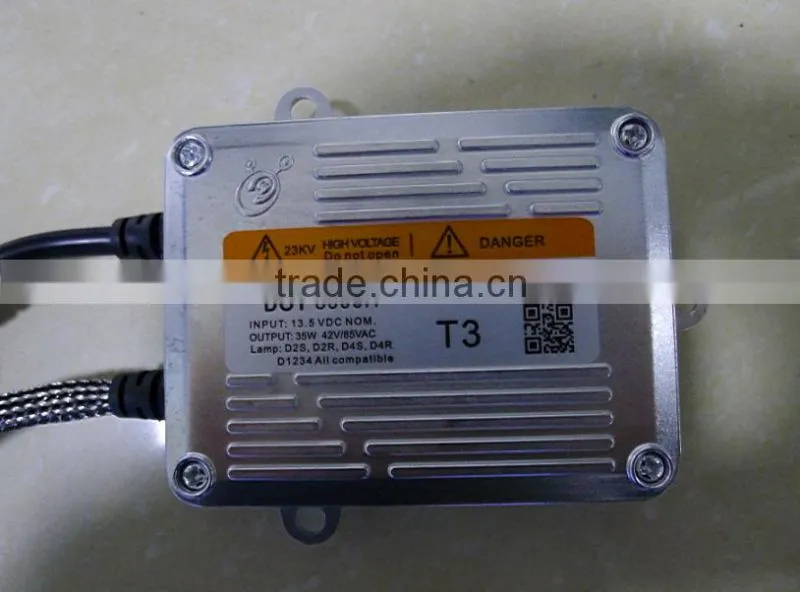

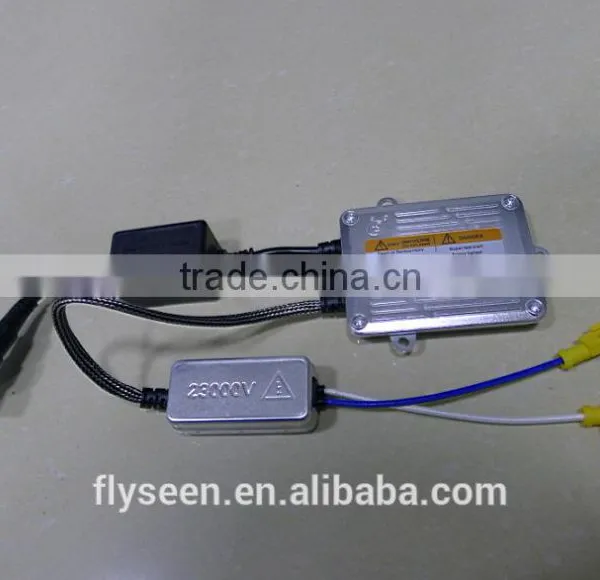

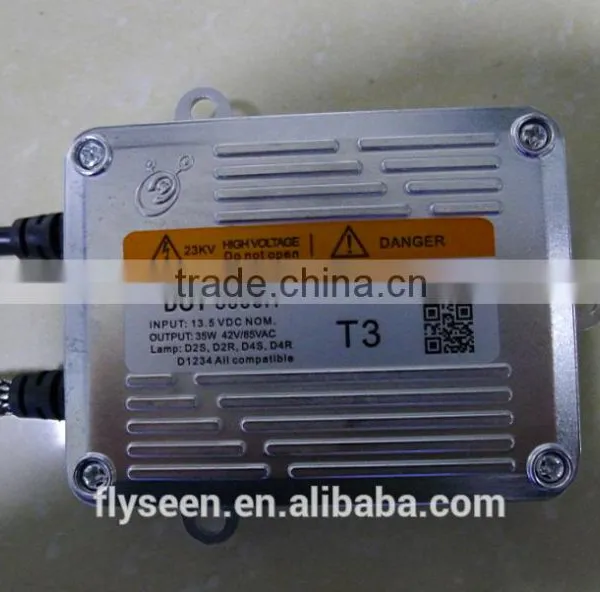

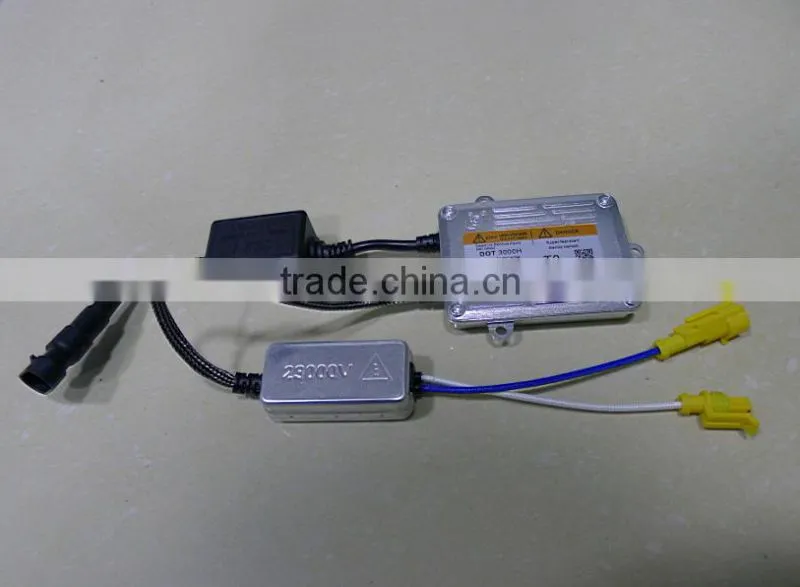

Error Free 35W canbus ballast,35w canbus error light canceller hid ballast,hid ballast 35w

Xenon HID kit, Xenon Bulbs, HID bulbs detail,

Xenon Bulbs, HID bulbs

White boxes of Xenon Bulbs/ HID bulbs

Xenon HID kit, HID ballasts. Xenon Ballst

1)Input Voltage Range DC9V~32V

2)Typical Operating Voltage DC12.8V

3)Typical Operating Voltage DC24V

4)Typical Input Current 3.2A, Condition: DC 12.8V Input

5)Typical Input Current 1.8A, Condition: DC 24V Input

6)Max. Inrush Current 15A

7)Output Power 33W±2W(Constant Power)

8)Output voltage AC85V±15V (Square Pulse, RMS70V~100V)

9)Output Frequency 260Hz~280Hz

10)Efficiency: ≥83%, Condition:

11)Ignition pulse Typical peak Voltage 23kV

12)Typical duration 1s

13)Cooling method Natural cooling

14)Input Protections Under voltage protection at 6V±1V

                               Over voltage protection at 34.5V±1V

                               Input connection-reverse protection

15)Output Protections Short circuit protection between two outputs

                                   Open circuit protection between two outputs

Operating temperature -30°C~+ 85°C

Storage temperature -40°C~+105°C

Xenon Kit, HID kits, XENON HID KITS,

35W,12V, AC, DC, 35W,24V, AC, 55W,12V.55W,24V

Our boxes is full, Many kinds of boxes is optional
