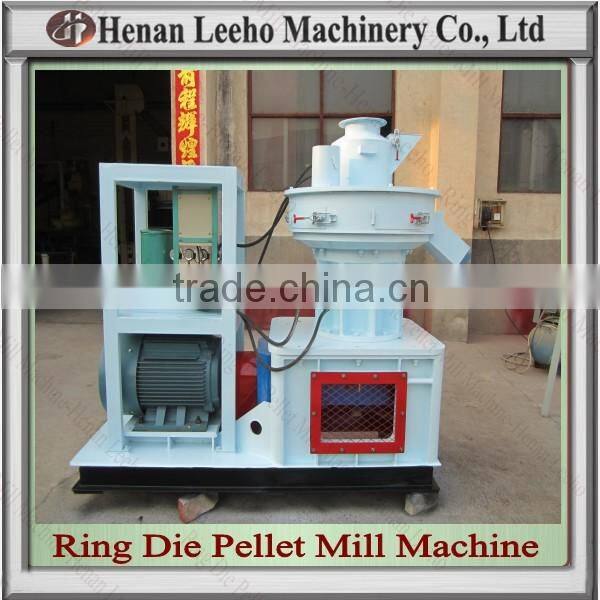

New Technical Palm Bunch Pellet Ring Die Machine
- 90 Set / Sets per Month
- China Main Port
- T/T Credit Card
- BEFZ Household Kitchen Scale High Precision Mini Digital Balance 0.01g digital pocket scale Capacity 500g/0.01g Pocket Scale
- 2014 New arrival western ladies Rivet new fashion belt with flower leather pattern buckle Wholesale /Retail sell
- Dung cleaning machine
- mini rice mill
- stainless steel seeds roaster
- incense stick making machine
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | LHO |
Model Number: | KL450 | Voltage: | 380V50HZ or Optional | Power(W): | 45KW |
Weight: | 2900KGS | Certification: | CE ISO | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Hot sale sawdust pellet machine line1.easy to operate
2.lower price
3.economy and durability
4.capacity:400-4000kg/h
Palm Bunch Wood Log Fiber Pellet Machine
Introduce of pine wood log pellet machine
The pellet machine is applied to the shapless material with low adhesiveness such as the rice husk, sunflower seed husk, peanut shell and other fruit shell branch, trunk, bark, crop straws, rubber, cement ,ash and other chemical materials. The pellet machine can be widely used in the feed plant, wood processing, fuel plant, fertilizer plant and chemical plant etc. It is the ideal pressing shaping equipment with low investment and high profit.
Process of pine wood log pellet processing line
Crushing system:
Raw material too big, we need use crush the material into 3-5mm. It can crusher wood log, straw, bamboo, catton, wood branches, wood pallet etc which can usd for making pellet. The final material wil be usd for making pellet
Drying System
Raw material to beprocessed is too wet, the line require the dryer to dry the material to below15%. We can use coal, pellet etc as fuel.
Pelleting System
It is main process for this line which produce the pellet,the pellet used for industry, boiler , factory etc. This machine can produce the pellet size with 4-12mm.
Model | KL-900 | KL-750 | KL-550 | KL-450 |
Main Power(KW) | 90 | 75 | 55 | 45 |
Discharge Power(KW) | 1.5 | 1.5 | Main Ber Drive | Main Bear Drive |
Electric Dry Oil Pump(KW) | 0.37 | 0.37 | 0.37 | 0.37 |
Weight(T) | 6.8 | 5.6 | 3.6 | 2.9 |
Speed of main bear(r/min) | 1450 | 1450 | 1450 | 1450 |
Voltage(V/HZ) | optional | optional | optional | optional |
Mould Diameter(mm) | 550 | 500 | 450 | 400 |
Pellet Size(mm) | 4-12 | 4-12 | 4-12 | 4-12 |
Temperature(degree) | 80-100 | 80-100 | 80-100 | 80-100 |
Material Moisture(%) | 15-25 | 15-25 | 15-25 | 15-25 |
Capacity(kg/h) | 1.2-1.5 | 1-1.2 | 0.8 | 0.6 |
Cooling System:
cool down the output pellets and remove some moisture of pellet
Sieving
remove the dusts and crushed pellets
Packing
package the pellets into bags of required sizes
Our Advantage of fruit wood pellet processing line
• Feeding vertically and directly to pelletizing room.
• Die static, rollers rotating, materials centrifugal, evenly distributed around.
• Double-layer dies, up and down dual use, high capacity and energy saving.
• Ring die, vertical structure, conducive to the pelletizing room cooling.
• Independent output device, ensure formation rate of pellets.
• Independent lubrication system, bring precise & automatic lubrication to bearings.
• Feeding system is equipped with inverter which can bring stepless adjustable feeding speed.
