Bare Conductor Overhead Aluminum Conductor steel reinforced ACSR conductor
Overhead Conductor Bare Conductor
- The product is applicable for AC50 Hz transmission and distribution lines.
- The mechanical properties and electrical performance of cables meet the requirements of national standard GB/T1179-2008.
Overhead Power Transmission Line AAC Conductor bare conductor
BS 215 standarded ACSR cable ( aluminium conductor steel reinforced )
1. Application
The bare conductor:AAC,AAAC,ACSR,AACSR,ACAR and Galvanized steel wire, are used in overhead electrical power transmission and distribution lines with various grade voltage.

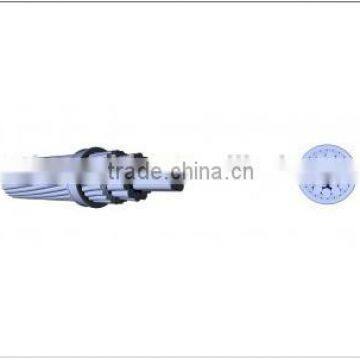

Construction: Bare aluminum alloy 1350-H19 wires, concentrically stranded around a Class A galvanized coated steel core wire. ACSR consists of a galvanized steel core of 1 wire, 7 wires, 19 wires etc. surrounded by concentric layers of aluminum wire.
2. Standards
Our Bare conductor can meet or exceedthe item of cable international standards, such as:IEC 61089, BS 215 part1(AAC), BS 215 part2, BS 324201 (AAAC), DIN 48201 part 5 (AAC), DIN 48204, ASTM B231(AAC), ASTM B232(ACSR), BS EN 50182, BS EN 50183(AAAC), GB/T 1179-2008. Also we accept the OEM and the new design cable as customers.

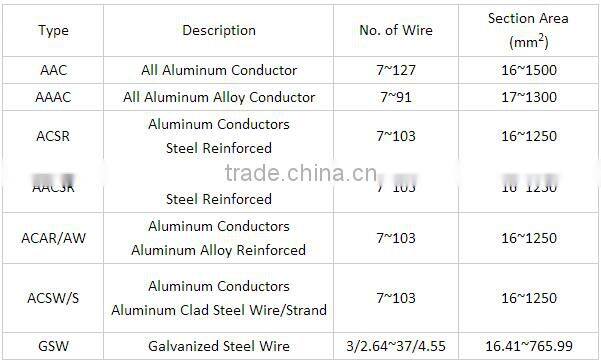

3. Specification
1.Aluminum conductor
2.Concentric-Lay-Stranded
3.Coated Steel Reinforced
4.ASTM,BS,CSA,DIN,IEC etc. Standards
Following the American Standards ( ASTM )
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
B-341 Aluminum-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-500 Zinc Coated and Aluminum Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)

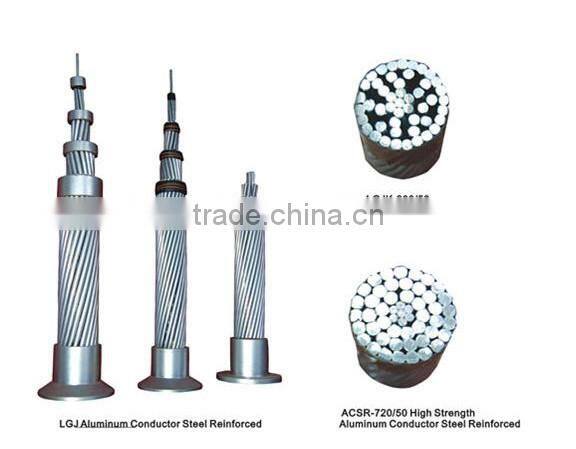

•Product Show
Overhead Conductor(ACSR, AAC, AAAC, ACSS/TW, ACCC, AACSR, ACAR, OPGW)Bare Conductor
Motian is a brand of Sichuan Motian Cable Co., Ltd, a Chinese leader in the energy and telecom cables and systems industry.
We mainly aim at managing XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated abc cable overhead cables, and stranded aluminum and ACSR. Annual product capacity of cables and wires is over 30,000 kilometers.
We obtained the certificate of ISO9001 and BV, and Cables must met the standards of China Compulsory Certification(CCC).
Motiancables and wires are widely used in the construction of buildings, airports, power transportation, urban and rural power network reformation and other main projects. Both of our products and factory are greatly commended by customers.
Now we seek for business cooperation all over the world. We sincerely welcome you to visit us.
• More than 10 Years Experience Focus On Cables & OEM manufacturing
All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.
The packing material is depended on the weight and size of cable.
The good information, manufacture information, and the client's information is firmly printed on each size of drum.
After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.
The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.
• Authoritative certificates supported ISO:9001, BV, CCC
