Head 100 Meter Deep Well Pump

Head 100 Meter Deep Well Pump thumbnail-1
Head 100 Meter Deep Well Pump photo-1
US$ 1,100 - 2,200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
XINYA
Model Number:
submersible solar pump
Contact Supplier Request Quote Chat Now
Zhejiang Xinya Pump Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name XINYA
Model Number submersible solar pump
Theory Other, AC brushless
Structure Multistage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other, solar power
Pressure High Pressure
Application Submersible

head 100 meter deep well pump



Product Description

Product Feature



Price includes

1. Solar pump with 1.5m cable, longer cable is available

2. Sealed Controller

3. Water level sensor or float switch:10meter cable, longer cable is available

4. Cable connector

5. Spare screw

6. Installation Manual



Solar PV panels may be purchased separately.



MATERIAL OF PARTS:
Outlet: stainless steel
Pump body: stainless steel
Motor body: stainless steel
Inpeller: stainless steel



ADVANCED TECHNOLOGY:
1.Application innovation
Compared with the traditional alternating current machine,the efficiency is improved 25% by the permanent magnetism,
direct current,brushless, non-sensor motor.


2.Technics innovation

Adopt double plastic package for rotor and stator,
motor insulation≥300MΩ,
the motor security was much improved.

High technique products adopting MPPT .



3.Structure innovation

Oil filling,convenient installation and environmental protection.

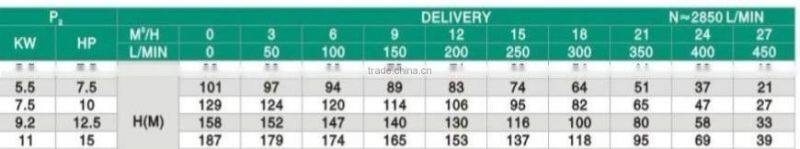

PRODUCT MODELS:
Model Impeller

Voltage

(V)

  Power
(KW)

Max Flow

(M3/H)

Max Head

(M)

Outlet

(IN)

Outer Diameter

(MM)

Weight

(KG)
6SPSC18-6

Centrifugal

(Stainless steel)

 380 5.5 33 86 3" 138*1286 62
6SPSC18-7 380 7.5 33 101 3" 138*1331 63
6SPSC18-9 380 7.5 33 129 3" 138*1471 68
6SPSC18-11 380 9.2 33 158 3" 138*1610 73
6SPSC18-13 380 11 33 187 3" 138*1770 81

head 100 meter deep well pump

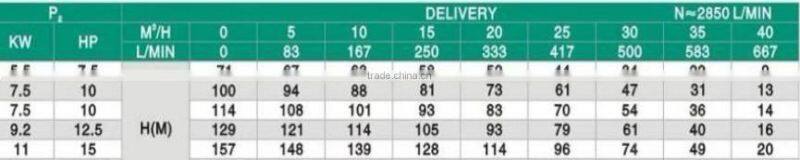

6SPSC30-5

Centrifugal

(Stainless steel)

 380 5.5 49 71 3" 138*1286 62
6SPSC30-7 380 7.5 49 100 3" 138*1444 67
6SPSC30-8 380 7.5 49 114 3" 138*1478 68
6SPSC30-9 380 9.2 49 129 3" 138*1602 72
6SPSC30-11 380 11 49 157 3" 138*1779 81

head 100 meter deep well pump

  NEW   Model Impeller voltage
(V)		  Power
(W)

Max Flow

(M3/H)

 Max Head
(M)

Outlet

(IN)

Outer Diameter

(MM)
6SPSC35/31-D288/2200

Centrifugal

(Stainless steel)

 288 2200 35 31 3" 150
6SPSC35/45-D252/3500 252 3500 35 45 3" 150
6SPSC35/63-D288/4500 288 4500 35 63 3" 150
6SPSC49/15-D288/2200 288 2200 49 15 3"/4" 150
6SPSC49/31-D252/3500 252 3500 49 31 3"/4" 150
6SPSC49/42-D288/4500 288 4500 49 42 3"/4" 150
6SPSC70/20-D252/3500 252 3500 70 20 4" 150
6SPSC70/32-D288/4500 288 4500 70 32 4" 150
6SPSC78/17-D252/3500 252 3500 78 17 4" 150
6SPSC78/28-D288/4500 288 4500 78 28 4" 150

 head 100 meter deep well pump



Application                                                                                                                                  head 100 meter deep well pump

head 100 meter deep well pump

head 100 meter deep well pump



Packaging & Shipping

Packing



Carton box with pump, controller and free accessories.


Shipping

1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;

2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

3. Customers specifying freight forwarders or negotiable shipping methods!

4. Delivery Time: 5-10 days for samples; 15-25 days for batch goods.

Payment Terms

Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance against BL copy.

Our Services

Why choose us?

1. We are Alibaba Assessed 7 years Gold Supplier.

2. We are a factory manufacturing solar pump, best production capability ,best quality control, Best Service .

3.100% QC inspection Before Shippment.

4. CE certificated,competitve price.

5. 7*24 online EMAIL service!

Company Information

 head 100 meter deep well pump

FAQ

FAQ

Q1. When can I get the quotation?

We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price, please send the message on trade manager or call us directly.



Q2. Can I buy one as sample?

Yes, of course. MOQ of solar pump is 1 piece. For the other kind of products (water pump, air compressor and welding machine),  you need to pay all the fee when we make the sample.



Q3.  Can you make OEM?

Yes, you can put your logo and brand on the box.



Q4. What is your main market?

Eastern Europe,  Southeast Asia. Mid East, South America, Northern Europe.



Q5. Are you a factory or trading company?

We are the factory which focused on water pump for more than 25 years, focused on air compressor for more than 15 years, focused on solar pump for 5 years.
