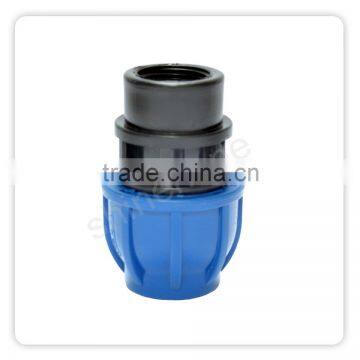

HDPE Pressure Piping Female Adaptors
- 0 per Month
- Ningbo / Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Material | Plastic | Technics | Other, Injection | |
| Type | Coupling | Place of Origin | Zhejiang, China | |
| Model Number | P.704 | Connection | Female | |
| Shape | Equal | Head Code | Other, Circle |
Product Description
Specifications
1.Push fit fittings Used extensively worldwide2.Fast & reliable connections.
3.Perfect sealing under all conditions
1. Reducing Couplings for PE pressure piping applications.
2. Size range from D20 - D110
3. Working Pressure: PN10 at the temperature of 20ºC.
1. Dimensions and characteristics according to EN 712/713/715/911; ISO 3501/3503/3458/3459.
2. To be installed on PE pipes conforming to ISO 11922; DIN 8072/8074; UNE 53131.
3. Also approved for use with PVC flexible hose (contact us for available sizes).
4. Threads (BSP) manufactured according to standard ISO 7; DIN 2999. Also available in ASTM/NPT standards.
1. Female Adaptors used extensively worldwide.
2. Female Adaptors tested and approved by the world's premier certification institutes.
3. Fast & reliable connections.
4. Female Adaptors perfect sealing under all conditions.
5. Performance: Approved for use with drinking water.
6. Applications: Performance Series: water distribution, irrigation, industry,swimming pools, cable conduits
| Part | Material | Color |
| Body | PP | Black |
| Nut | PP | Black |
| Clinching ring | POM | White |
| Blocking bush | PP | Black |
| O Ring gasket | NBR | Black |
| Reinforcing ring | Stainless Steel | Natural |
| Female Adaptor P.704 | ||||
| COD | D(mm) | Qty/Ctn | ||
| P.704.020 | Φ20x1/2" | 600 | ||
| P.704.025 | Φ25x1/2" ; 3/4" | 406 | ||
| P.704.032 | Φ32x3/4" ; 1" | 252 | ||
| P.704.040 | Φ40x1-1/4" | 150 | ||
| P.704.050 | Φ50x1-1/2" | 120 | ||
| P.704.063 | Φ63x2" | 48 | ||
| P.704.075 | Φ75x2-1/2" | 40 | ||
| P.704.090 | Φ90x3" | 27 | ||
| P.704.110 | Φ110x4" | 12 | ||
Installation
| Installation d.20-63mm Female Adaptors | |
 | 1. Cut the pipe square at 90° to the length using a pipe outter. |
| | 2. Insert on the pipe in the following order collar and clinching and place the O-ring on the mouth of the pipe.(fig 2 & 3) |
| 3. Insert the body of the joint until the gasket is struck in the body itsel.(fig 4) |
| 4. Insert the body of the joint the gasket has slid inside the body. |
| 5. Fully tighten the nut. The nut can be tightened manually up to d.32mm, but for larger diameter it is advisable to use a wrench. |
| Installation d.75-90mm Female Adaptors | |
| 1. Cut the pipe square at 90° to the length using a pipe cutter. Lubricate the pipe and the gasket so that the fittings sit correctly on the pipe. Insert the fittings onto the pipe in the following order: ring nut, clinching ring, thrust bushing and put the gasket on the mouth of the pipe. |
| 2. Push the body of the fitting on the pipe until the gasket is pushed inside the body. (fig.2) |
| 3.Push the body of the fitting on the pipe until the gasket is struck in the body itself (fig.2) |
| Installation d.110mm Female Adaptors | |
| | 1. Cut the pipe square at 90° to the length using a pipe cutter. Lubricate the pipe and the gasket so that the fittings sit correctly on the pipe. Insert the fittings onto the pipe in the following order: ring nut, clinching ring, thrust bushing, gasket and body of the fitting. |
| 2. Fully tighten the nut until the gasket is stuck inside the body. |
| 3. Untighten the nut, open the clenching ring and insert it on the pipe, fully tighten the nut using a belt or chain wrench. |
1. Have cooperated with a lot of importers in the world for more than 8 years.
2. Experienced in handling OEM orders.
3. Quick delivery time for decent orders.
4. Own designing team for decent orders.
5. Free samples could be provided.
Yuhuan Shinehone Plastic Industrial Factory is a manufacturer of high pressure pipe works. Our industrial pipe fittings have various applications and are currently being used in many industries around the world.
Founded in 1997, Shinehone has and continues to develop advanced techniques in the production of cost effective thermoplastic pressure pipe fittings and valves. We also offer a wide range of push fit fittings for drip irrigation, impact sprinklers and swing joints. Additionally, we manufacture filters used for a wide range of irrigation systems related applications. Our products are safe and friendly to the environment and our production processes are socially responsible.
We welcome and look forward to the opportunity to work with you on your pipes and fittings need.
