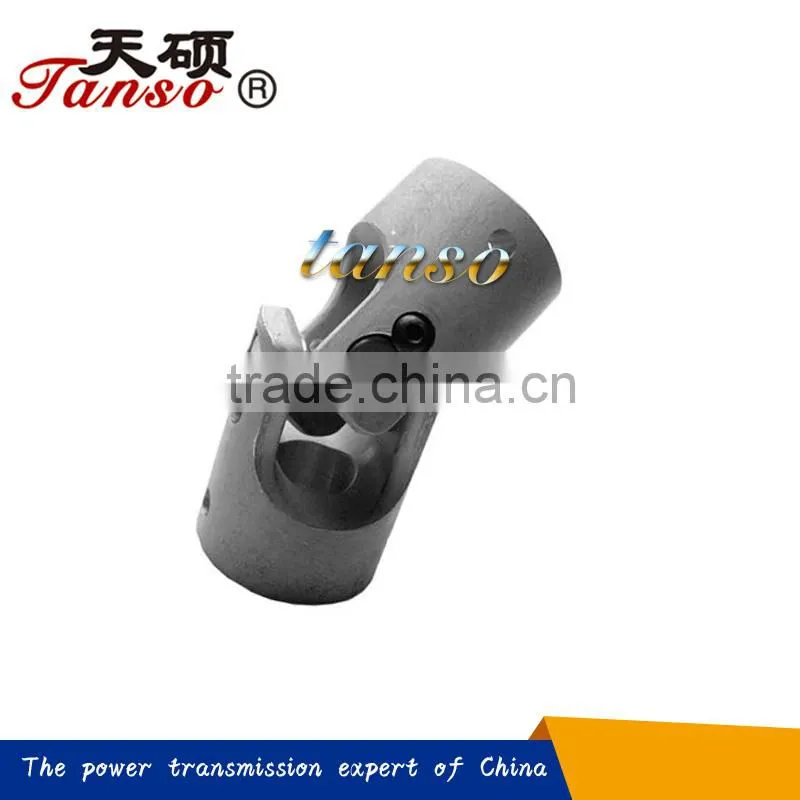

WSD/WS Single or Double Universal Joint
US$ 50.99 - 1,000.99
MOQ: 10 Units
Key Specifications
Get Latest Price
Structure:
Double
Material:
Alloy Steel
Operating Angle:
30°
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Structure
Double
Material
Alloy Steel
Operating Angle
30°
Place of Origin
Hebei, China
Model Number
WSD/WS
Brand Name
Tanso
precision joint
1.suitable for every application in the range of general engineering up to maximum speed of 4000 min

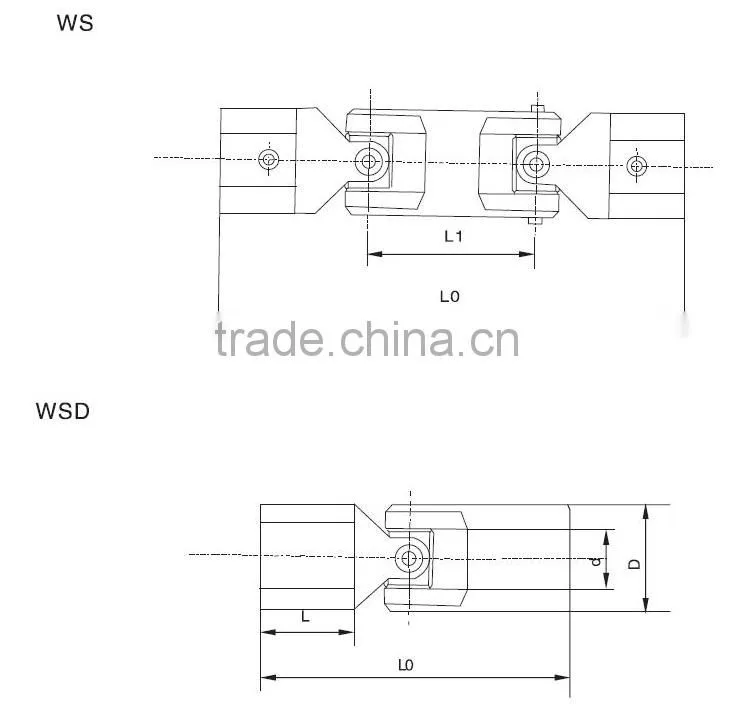

2. Type WSD precision single joint type WS precision double joint
3.Maximum articulation angle 30 for each joint
4.Avaiable with finish bore H7,on request with keyway,hexagon bore or square bore.
| Model | Torque(TN N.m) | d(H7) | Outer diameter | Total length | Weight (m/kg) | moment of inertiakg. | |||
| WSD | WS | ||||||||
| Y type | J1 type | Y type | J1 type | ||||||
| WS1 | 11.2 | 8 | 16 | 60 | 60 | 80 | 80 | 0.32 | 0.08 |
| WSD1 | 9 | 66 | 60 | 86 | 80 | 0.23 | 0.06 | ||
| 10 | |||||||||
| WS2 | 22.4 | 10 | 20 | 70 | 64 | 96 | 90 | 0.64 | 0.15 |
| WSD2 | 11 | 84 | 74 | 110 | 100 | 0.93 | 0.1 | ||
| 12 | |||||||||
| WS3 | 45 | 12 | 25 | 90 | 80 | 122 | 112 | 2.1 | 0.24 |
| WSD3 | 14 | 1.45 | 0.17 | ||||||
| WS4 | 71 | 16 | 32 | 116 | 82 | 154 | 130 | 8.56 | 0.56 |
| WSD4 | 18 | 5.92 | 0.32 | ||||||
| WS5 | 140 | 19 | 40 | 144 | 116 | 192 | 164 | 20.6 | 1.04 |
| WSD5 | 20 | 16.3 | 0.72 | ||||||
| 22 | |||||||||
| WS6 | 280 | 24 | 50 | 152 | 124 | 210 | 182 | 68.9 | 1.89 |
| WSD6 | 25 | 172 | 136 | 330 | 194 | 58 | 1.28 | ||
| 28 | |||||||||
| WS7 | 560 | 30 | 60 | 226 | 182 | 296 | 252 | 207 | 3.9 |
| WSD7 | 32 | 148 | 2.82 | ||||||
| 35 | |||||||||
| WS8 | 1120 | 38 | 75 | 240 | 196 | 332 | 288 | 396 | 7.25 |
| WSD8 | 40 | 300 | 224 | 392 | 336 | 585 | 5.03 | ||
| 42 | |||||||||
