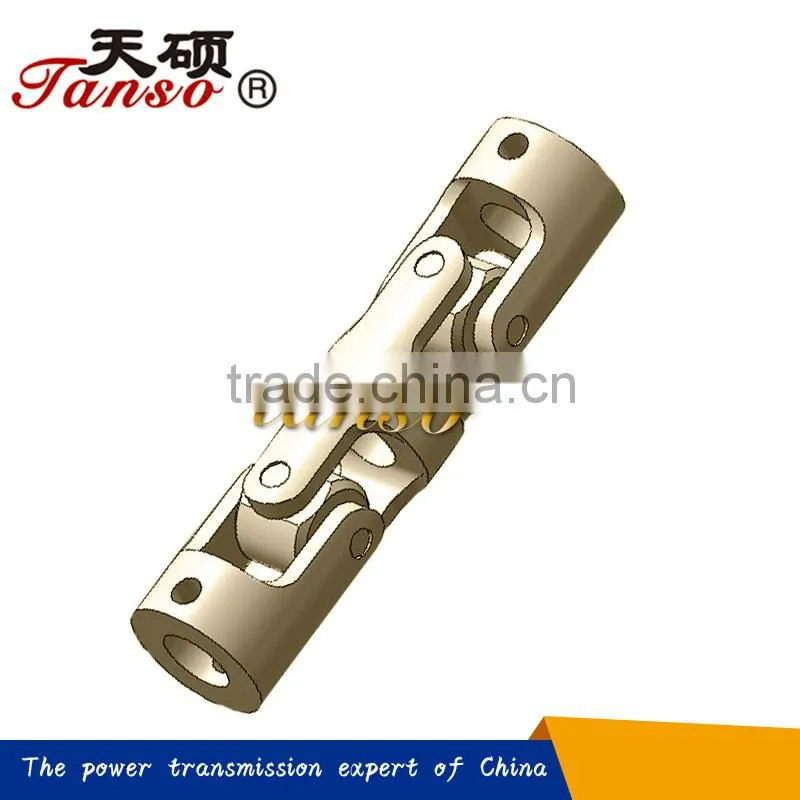

Help CenterDouble Universal Joint
US$ 9 - 100
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Type:
Universal Joint
Material:
Other, Steel, 45# steel
Size:
Standard Size
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Type
Universal Joint
Material
Other, Steel, 45# steel
Size
Standard Size
Place of Origin
Hebei, China
Brand Name
Tanso, Tanso
Model Number
WS, WS
Warranty
6 Months
A universal joint, (universal coupling, U-joint, Cardan joint, Hardy-Spicer joint, or Hooke's joint) is a joint or coupling in a rigid rod that allows the rod to 'bend' in any direction, and is commonly used in shafts that transmit rotary motion. It consists of a pair of hinges located close together, oriented at 90° to each other, connected by a cross shaft. The universal joint is not a constant velocity joint.
WS universal coupling is suitable for retating system which the two axis angle <45,nominal torque 11.2~1120N*m.
Features of WS universal coupling:
1.Available in your choice of round, hex, splined, or keyway bore
2.Lubrication is required for optimal wear – boots and lubricant extend universal joint life
3.Max angular mislegnment:45o
