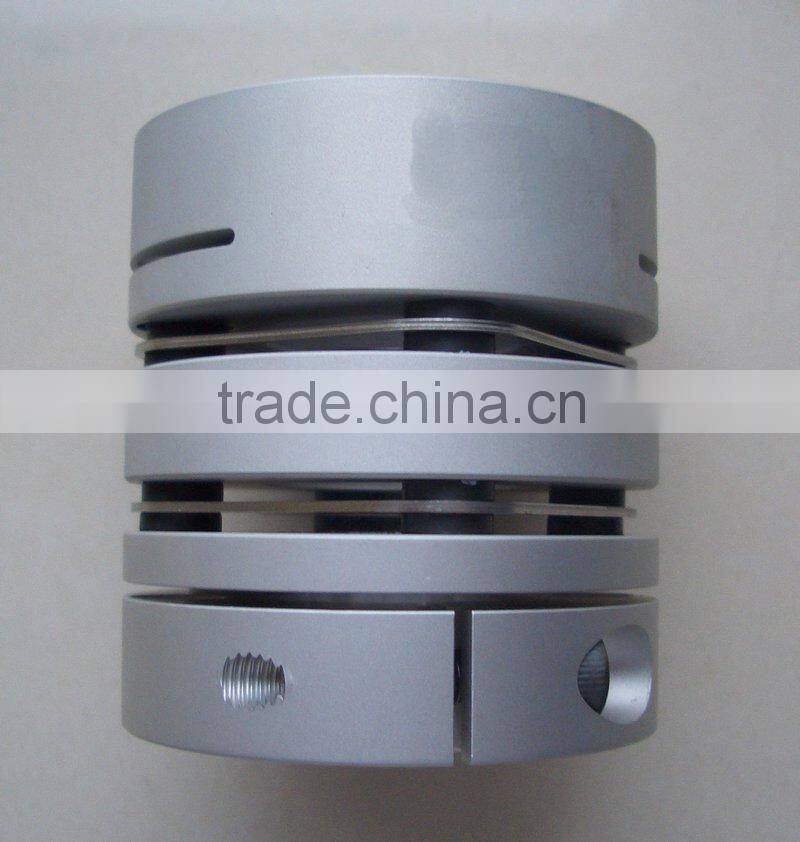

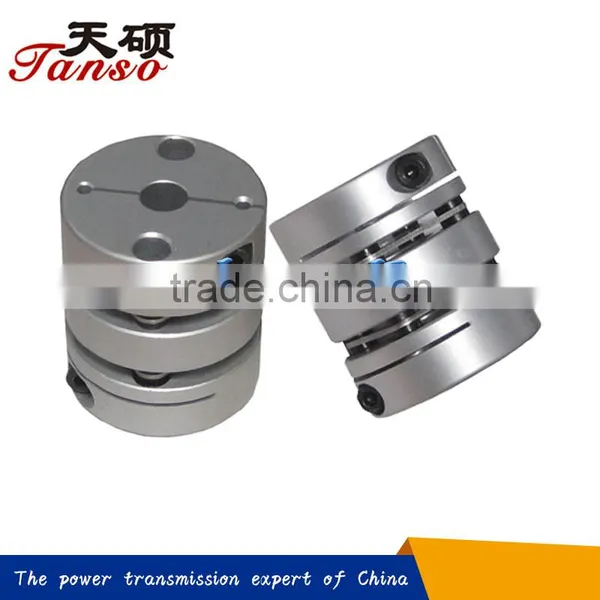

Double Plate Clamp Type Disc Coupling

Cangzhou Tanso Coupling Co., Ltd.
Double Plate Clamp Type Disc Coupling thumbnail-1
Double Plate Clamp Type Disc Coupling photo-1
US$ 5 - 20 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Structure:
Disc
Flexible or Rigid:
Flexible
Standard or Nonstandard:
Standard
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Structure Disc
Flexible or Rigid Flexible
Standard or Nonstandard Standard
Material Aluminium
Brand Name Tanso
Place of Origin Hebei, China
Model Number TS3D

Tanso mini disc coupling is non-backlash, lube-free coupling ,and has high torsional stiffness, maximizing the benefit of servomotors. Based on finite element analysis, the disc is optimally designed to ensure reliable torque transmission, while absorbing misalignment smoothly.

Features of TS3D mini disc coupling:

1.High torque capacity and excellent response

2.Zero backlash

3.Stainless steel discs absorbs parallel ,angular and axial misalignments

4.Identical clockwise and anticlockwise rotational characteristics

5.Clamp type

6.For servomotor,stepmotor connection

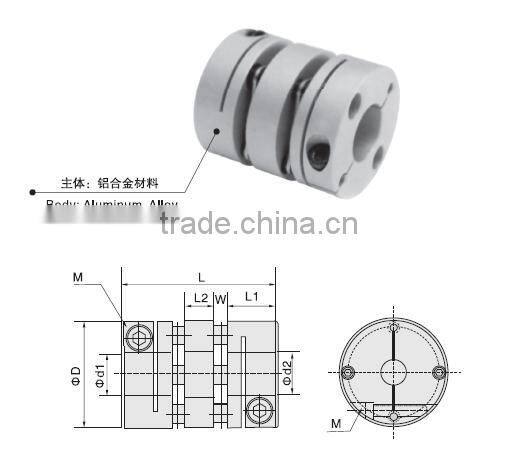

Double plate clamp type disc coupling

Double plate clamp type disc coupling

Fundamental dimensions

Model

Φ d1Φd2
Bore diameter

ΦD

L

F





L1

M

Wrench Torque
N·m



TS3D-26

5 6 8
9.525 10

26

35

2.5

7.0

M3

1.5



TS3D-34

8 9.525 10
11 12 14

34

45

3.1

10.6

M4

1.5



TS3D-39

10 11 12
14 15 16

39

49

4.1

10.8

M4

2.5



TS3D-44

11 12 14
15 16 19

44

50

4.5

11.0

M4

2.5



TS3D-56

14 15 16 19
20 22 24

56

63

5.0

13.0

M5

7.0



TS3D-88

19 20 22
24 30 35

68

74

6.0

14.0

M6

12



TS3D-82

24 28 30
35 38 40

82

98

8.0

22.0

M8

16



Parameters

Model

Rated Torque
(N·m)

Max Torque
(N·m)

Max Rotational Frequency
(rpm)

Moment of inertia
kg·m2

Static Torsioral Stiffness
N m/rad

Parallel misalignment
mm

Angular misalignment

Mass
g

TS3D-26

1.4

2.8

10000

1.8×10-6

0.04

1.5

±0.4

34

TS3D-34

2.8

5.6

10000

8.9×10-5

0.04

1.5

±0.4

70

TS3D-39

5.8

11.6

10000

2.4×10-5

0.04

1.5

±0.4

118

TS3D-44

8.7

17.4

10000

3.2×10-5

0.04

1.5

±0.4

142

TS3D-56

25

50

10000

1.1×10-4

0.04

1.5

±0.4

296

TS3D-88

55

110

10000

2.8×10-4

0.04

1.5

±0.4

544

TS3D-82

80

160

10000

1.0×10-3

0.04

1.5

±0.4

1020
