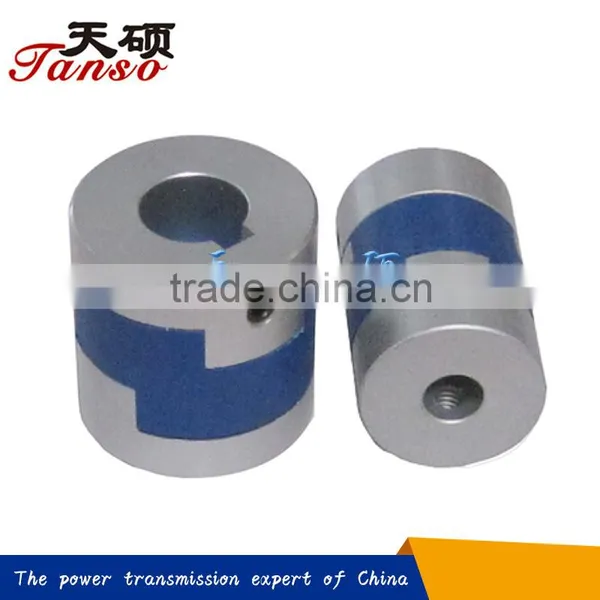

Tanso Oldham Shaft Coupling

Tanso Oldham Shaft Coupling thumbnail-1
Tanso Oldham Shaft Coupling photo-1
US$ 6 - 10 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Structure:
Oldham
Flexible or Rigid:
Flexible
Standard or Nonstandard:
Standard
Contact Supplier Request Quote Chat Now
Cangzhou Tanso Coupling Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Structure Oldham
Flexible or Rigid Flexible
Standard or Nonstandard Standard
Material Aluminium
Brand Name Tanso
Place of Origin Hebei, China
Model Number TS6C

An Oldham coupling has three discs, one coupled to the input, one coupled to the output, and a middle disc that is joined to the first two by tongue and groove. The tongue and groove on one side is perpendicular to the tongue and groove on the other. The middle disc rotates around its center at the same speed as the input and output shafts. Its center traces a circular orbit, twice per rotation, around the midpoint between input and output shafts. Often springs are used to reduce backlash of the mechanism. An advantage to this type of coupling, as compared to two universal joints, is its compact size. The coupler is named for John Oldham who invented it in Ireland, in 1821, to solve a paddle placement problem in a paddle steamer design.

Features of TS6C oldham coupling:

1.Allows high parallel and angular misalignments

2.Zero backlash

3.High torsional stiffness and response

4.Simple configuration enable ease of assembly

5.Clamp type

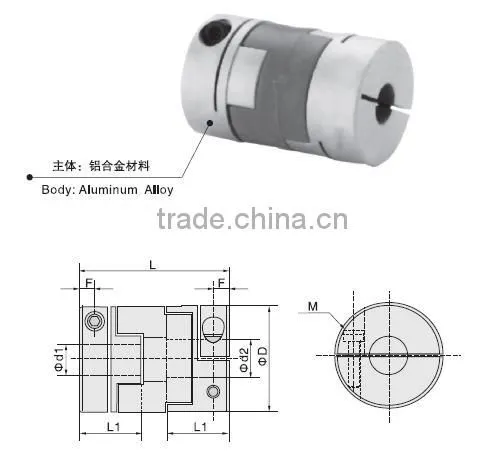

Tanso oldham shaft coupling

Model

Φ d1Φd2
 Bore diameter

ΦD

L

F

L1

M

Wrench Torque
N·m

TS6C-16

4 5 6

16

30

3.0

13

M2.5

0.7

TS6C-20

6 6.35 8

20

33

3.0

14

M2.5

1.7

TS6C-25

6 6.35 8
9.525 10

25

39

3.8

17

M3

4.0

TS6C-32

8 9.525 10
11 12 14

32

45

4.5

19

M4

7.0

TS6C-40

12 14
15 16

40

50

7.0

23

M5

7.0

TS6C-50

14 15 16
18 19 20

50

58

8.0

27

M6

15

TS6C-63

16 18 19
20 24 25

63

71

10

33

M8

30

TS6C-70

25 28 30
32 35

70

77

12

35

M8

35



Model

Rated Torque
(N·m)

Max.Torque
(N·m)

Max.Rotational Frequency
(rpm)

Moment of inertia
kg·m2

Static Torsioral Stiffness
N m/rad

Parallel misalignment
mm

Angular misalignment

Mass
g

TS6C-16

0.7

1.4

9000

5.0×10-7

29

1.0

3.0

12

TS6C-20

1.6

3.2

7400

1.4×10-7

58

1.4

3.0

20

TS6C-25

3.0

6.0

5800

4.1×10-6

125

1.9

3.0

36

TS6C-32

5.5

11.0

4700

1.2×10-5

260

2.4

3.0

66

TS6C-40

9.0

18.0

3600

3.8×10-5

505

2.8

3.0

114

TS6C-50

19.0

38.0

3000

1.0×10-4

780

3.3

3.0

206

TS6C-63

33.0

66.0

2400

3.5×10-4

1200

3.8

3.0

454

TS6C-70

80

160

2200

2.1×10-4

1600

3.9

3.0

560
