Bellows Coupling

Bellows Coupling thumbnail-1
Bellows Coupling photo-1
US$ 7.5 - 9 MOQ: 5 Sets
Key Specifications
Get Latest Price
Structure:
Metal Bellows
Flexible or Rigid:
Flexible
Standard or Nonstandard:
Standard
Contact Supplier Request Quote Chat Now
Cangzhou Tanso Coupling Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Structure Metal Bellows
Flexible or Rigid Flexible
Standard or Nonstandard Standard
Material Aluminium
Brand Name Tanso
Place of Origin Hebei, China
Model Number TS1Z

A bellows coupling is a flexible coupling for transmitting torque between two shafts while allowing for angular misalignment, parallel offset and even axial motion, of one shaft relative to the other. This design utilizes a single piece of material and becomes flexible by removal of material along a spiral path resulting in a curved flexible beam of helical shape.

Features of TS1Z bellows coupling:

1.Using locking assemblies connect

2.Zero backlash

3.Spring action bellows configuration absorbs parallel ,angular and axial misalignments

4.Identical clockwise and anticlockwise rotational characteristics

5.Material:stainless steel

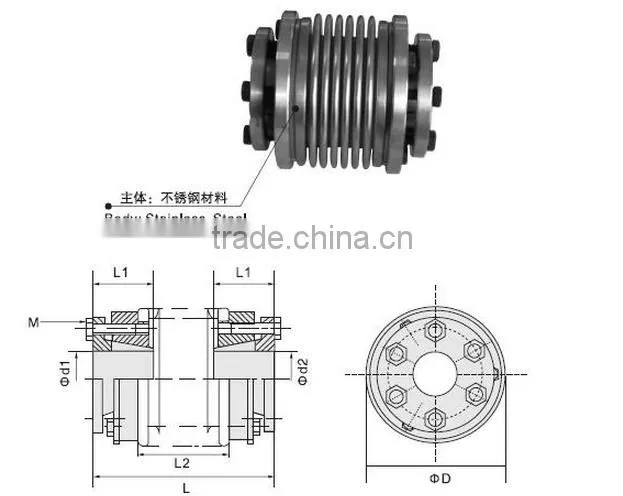

Model

Φ d1Φd2
Bore diameter

ΦD

L

L1

L2

M

Wrench Torque
(N·m)

TS1Z-40

10 11 12
14 15 16

40

55

19

24

M4

3.0

TS1Z-55

11 12 14
16 19 20

55

65

22

31

M4

6.0

TS1Z-65

14 16 19
24 25 28

65

76

27

37

M5

8.0

TS1Z-82

19 20 24
28 30 35 38

82

88

32

41

M5

10.0



Model

Rated Torque
(N·m)

Max.Torque
(N·m)

Max.Rotational Frequency
(rpm)

Moment of inertia
kg·m2

Static Torsioral Stiffness
N m/rad

Parallel misalignment
mm

Angular misalignment

Axial misalignment
mm

Mass
g

TS1Z-40

13

26

8000

9×10-5

1.5×10-4

0.15

2

1.5

210

TS1Z-55

28

56

6000

2.9×10-4

3.5×10-4

0.2

2

1.5

400

TS1Z-65

56

112

5000

4.6×10-4

6.8×10-4

0.25

2

1.5

790

TS1Z-82

120

240

4500

1.1×10-3

1.2×10-4

0.28

2

1.5

1210
