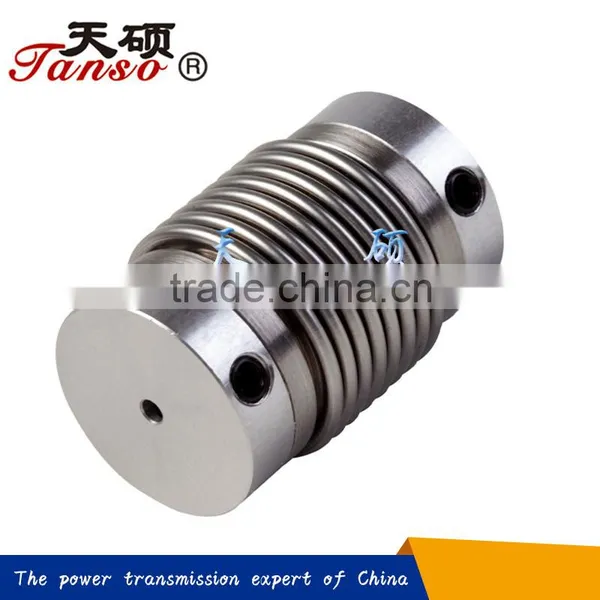

TS1 Setscrew Type Bellows Coupling

A bellows coupling is a flexible coupling for transmitting torque between two shafts while allowing for angular misalignment, parallel offset and even axial motion, of one shaft relative to the other. This design utilizes a single piece of material and becomes flexible by removal of material along a spiral path resulting in a curved flexible beam of helical shape.

Features of TS1 bellows coupling:

1.High torque capacity and excellent response

2.Zero backlash

3.Spring action bellows configuration absorbs parallel ,angular and axial misalignments

4.Identical clockwise and anticlockwise rotational characteristics

5.Set screw type
