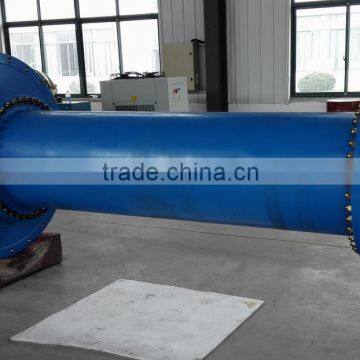

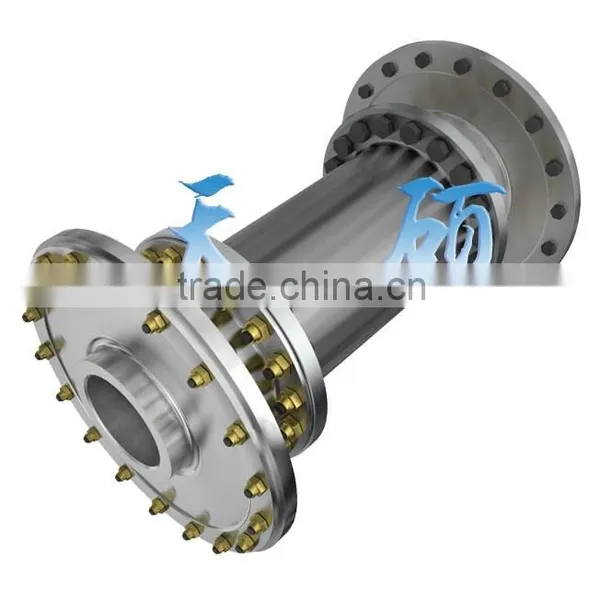

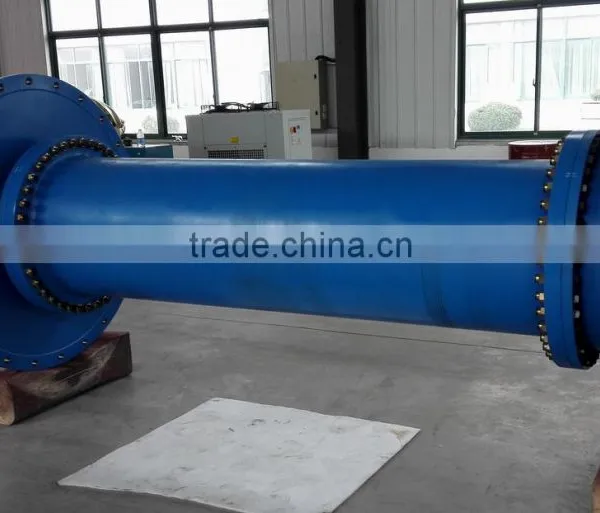

TARM Series Diaphragm Coupling

Name: TARM Series Diaphragm Coupling
Brand: Tanso
SKU: 114567863
Availability: InStock

US$ 500 - 2,000 MOQ: 1 Set

Key Specifications

Structure:

Disc

Flexible or Rigid:

Flexible

Standard or Nonstandard:

Standard

Cangzhou Tanso Coupling Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XINGANG

Delivery Detail:

Delivery time depends on order quantity.

Structure Disc

Flexible or Rigid Flexible

Standard or Nonstandard Standard

Material Stainless Steel

Brand Name Tanso

Place of Origin Hebei, China

Model Number TARM

TARM series product is high-speed ,low-torque diaphragm coupling,which has following features:

Lighter weight,lower additional bending moment and better dynamic performence in high speed.
Easy assembly and disassembly.
Due to its light weight ,simple design and superior balance repeatability,the TARM series diaphragm is ideal for most application.
The alloy steel bolts with high strength provide long service life.

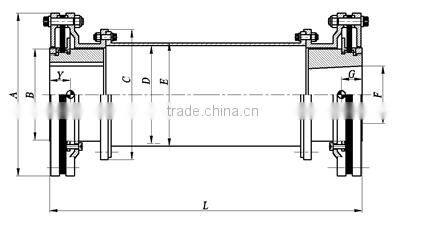

Dimension and performence parameter:

Type	Tightening torque (Nm)	Mass (Kg)	Torsional rigidity KT	Moment of inertia (Kgm^2)	data of middle section per meter			Angular misalignment		Axial misalignment
Type	Tightening torque (Nm)	Mass (Kg)	Torsional rigidity KT	Moment of inertia (Kgm^2)	Mass (Kg)	Torsional rigidity ΔKT(Nm /radxE+06)	Moment of inertia (Kgm^2)	Max θmax (deg)	Angular rigidity Kθ	Max (mm)	Axial force (N)
TARM150	15	12.36	0.17	0.018	5.3	115.82	0.0115	0.25o	0.62	1.35	426.1
TARM180	30	18.7	0.32	0.038	7.2	213.32	0.023	0.25o	1.51	2	813.7
TARM230	45	36.04	0.73	0.113	12.8	532.25	0.058	0.25o	3.11	2.5	1398.2
TARM280	120	62.4	1.64	0.303	18.5	1456.11	0.138	0.25o	8.35	3	2336.3
TARM330	120	104.1	3.17	0.705	30.2	3273.3	0.325	0.25o	13.34	3.5	3249.5
TARM380	160	143.8	5.21	1.289	39.5	5866.7	0.514	0.25o	17.12	3.5	3997.8
TARM430	160	226.9	8.09	1.536	55.35	10265.2	1.039	0.25o	28.79	3.5	6492.5
TARM560	220	589.2	26.9	11.45	143.2	37652.9	3.63	0.25o	66.3	3.5	11245.4

Tips:

In the table,the length L is standard value which is designed according to the performance.And we can supply couplings of other length L.
Each standard coupling selection can be customized for any given application.
Contact Tanso engineer for coupling selections requiring:Higher speed,axial/angular misalignment or torque.
