TARS series diaphragm coupling
- 5 Set / Sets per Month
- XINGANG
- screw pump coupling HSNH280-54A for power plant
- Customized flexible steel motor shaft coupling pump coupling
- China manufacturer Motor side coupling DTPD30FM002 for power generation
- Made in China Type 03 Coupling U238/2ZT(DY) for thermal power plant
- Made in China Type 03 Coupling U238/2ZT(DY) for thermal power plant
- CoupTec Coupling Technology: Innovating Torque Transmission Solutions-supply of china
Product Details
Structure: | Disc | Flexible or Rigid: | Flexible | Standard or Nonstandard: | Standard |
Material: | Stainless Steel | Brand Name: | Tanso | Place of Origin: | Hebei, China |
Model Number: | TARS |
Product Description

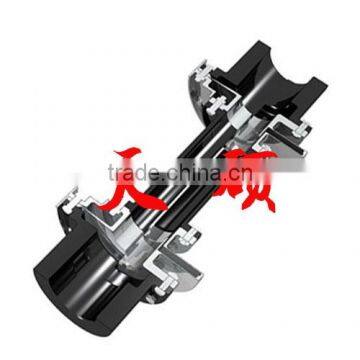

TARS series diaphragm coupling is the basic type of short wheelbase flexible diaphragm coupling,and has following features:
- Light weight, simple structure.
- Easy assembly and disassembly.
- Due to its light weight ,simple design and superior balance repeatability,the TARS series diaphragm is ideal for short-wheelbase application.
- The alloy steel bolts with high strength provide long service life.

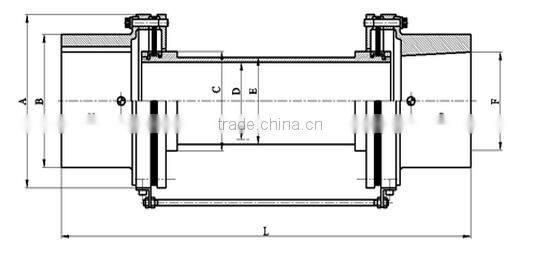

Dimensions and performence parameter :
Type | Rated torque (kNm) | Peak torque (kNm) | Max speed (rpm) | A
(mm) | B
(mm) | C
(mm) | D
(mm) | E
(mm) | F
(mm) | L standard (mm) |
TARS150 | 6.5 | 9.6 | 32000 | 150 | 115 | 83 | 63 | 71 | 82 | 580 |
TARS180 | 10.5 | 15.8 | 25000 | 180 | 140 | 98 | 72 | 84 | 92.5 | 610 |
TARS230 | 19.6 | 30.5 | 20000 | 230 | 185 | 126 | 93 | 107 | 127 | 670 |
TARS280 | 37.5 | 56 | 18000 | 280 | 215 | 148 | 111 | 129 | 152 | 700 |
TARS330 | 72.3 | 108.4 | 15000 | 330 | 270 | 178 | 134 | 155 | 190 | 765 |
TARS380 | 101.7 | 152.5 | 12000 | 380 | 307 | 198 | 176 | 245 | 215 | 765 |
TARS430 | 158.2 | 238.3 | 10000 | 430 | 355 | 240 | 214 | 285 | 254 | 825 |
TARS560 | 452 | 1016 | 6000 | 560 | 480 | 340 | 293 | 340 | 343 | 1000 |
Type | Tightening torque (Nm) | Mass (Kg) | Torsional rigidity KT | Moment of inertia (Kgm^2) | Data of middle section per meter | Angular misalignment | Axial mislignment | ||||
Mass (Kg) | Torsional rigidity ΔKT(Nm /radxE+06) | Moment of inertia (Kgm^2) | Max θmax (deg) | Angular rigidity Kθ (Nm/radxE+03) | Max (mm) | Axial force (N) | |||||
TARS150 | 15 | 13.12 | 0.15 | 0.019 | 5.3 | 76.9 | 0.0115 | 0.25o | 0.71 | 1.35 | 490.1 |
TARS180 | 30 | 19.2 | 0.32 | 0.047 | 7.2 | 181.67 | 0.023 | 0.25o | 1.73 | 2 | 825.2 |
TARS230 | 45 | 37.89 | 0.85 | 0.182 | 12.8 | 472 | 0.046 | 0.25o | 3.72 | 2.5 | 1423.9 |
TARS280 | 120 | 65.32 | 1.67 | 0.413 | 18.5 | 1001.7 | 0.092 | 0.25o | 8.99 | 3 | 2557.9 |
TARS330 | 120 | 105.2 | 3.43 | 1.09 | 30.2 | 2008.2 | 0.196 | 0.25o | 14.17 | 3.5 | 3456.7 |
TARS380 | 160 | 135.3 | 5.09 | 1.92 | 39.5 | 3383.4 | 0.323 | 0.25o | 18.22 | 3.5 | 4016.5 |
TARS430 | 160 | 210.5 | 8.92 | 3.11 | 55.35 | 6970.3 | 0.68 | 0.25o | 30.19 | 3.5 | 6993.2 |
TARS560 | 220 | 675 | 34.8 | 22.52 | 143.2 | 32100.7 | 3.09 | 0.25o | 71.2 | 3.5 | 11844.6 |
Tips:
- In the table,the length L is standard value which is designed according to the performance.And we can supply couplings of other length L.
- Each standard coupling selection can be customized for any given application.
- Contact Tanso engineer for coupling selections requiring:Higher speed,axial/angular misalignment or torque.
