pe Bottle UV Curing Machine, Tunnel Drying Machine ,glass Cup uv Drying Machine

pe Bottle UV Curing Machine, Tunnel Drying Machine ,glass Cup uv Drying Machine photo-1
pe Bottle UV Curing Machine, Tunnel Drying Machine ,glass Cup uv Drying Machine photo-2
pe Bottle UV Curing Machine, Tunnel Drying Machine ,glass Cup uv Drying Machine photo-3
pe Bottle UV Curing Machine, Tunnel Drying Machine ,glass Cup uv Drying Machine photo-4
pe Bottle UV Curing Machine, Tunnel Drying Machine ,glass Cup uv Drying Machine photo-5
pe Bottle UV Curing Machine, Tunnel Drying Machine ,glass Cup uv Drying Machine photo-6
US$ 1,000 - 4,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, UV lamp drying equiment
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, UV lamp drying equiment
Place of Origin Guangdong, China
Brand Name LC
Model Number 4000S2
Voltage AC 220V 380V
Power(W) 2KW/1UV lamp
Dimension(L*W*H) 2200*600*1700mm
Weight 310KG
Certification CE
Warranty 1 Years
After-sales Service Provided Engineers available to service machinery overseas

pe bottle UV curing machine, tunnel drying machine ,glass cup uv drying machine

Product Description



Product name

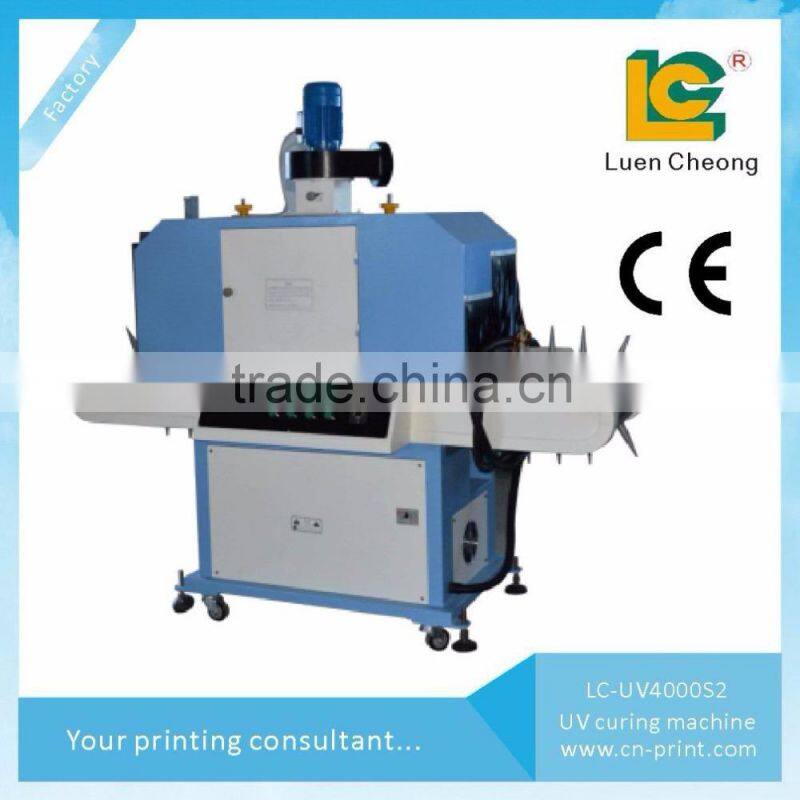

Round/Plane Surface UV Curing oven Machine/light uv glue curing machine LC-4000S2

Model No

LC-4000S2

Certificate

CE, ISO-9001-2000

Brand Name

LC,China

Parameter

1.Max UV curing   round bottle  high :320mm
2.Max  UV curing Products width  :  400mm
3. UV Curing  bottle diameter :
 12-24mm
4. curing size of workpiece: Cylinder  products :320X400mm
5.Conveyor speed:0~10m/min ;
6.. (United Kingdom)UV lamp power:4KW
7.  UV Drying products  speed:1800~3000PCS/HR
8.Total power:5KW
9..Machine dimension: L:2200mm W:600mm H:1700mm

Free fittings

1. 1 bag tooling box
2. 1 pcs English operating instruction

Advantage

1. The conveyer speed can adjustment according to the products drying condition;
2. Conveyer belt mabe by tefulong materials;
3. Famous brand UV lamp installed ;
4. Cooling fan installed on the side to remove the heat in curing chamber;

Description

Plane/Plane UV curing machine is used for curing printed UV ink,UV glue,UV paint,UV varnish etc.
UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating temperature

is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, stepless speed adjustment.The Conveyor speed can be adjusted according to product’s

 characteristics

Usage

Electron, Hardware, Auto, Toys, Gifts, Plastics parts,Plastics products, House appliances, work of art,

Stationery, Ornament, cosmetic, sports apparatus .UV drying for UV ink .

customer

USA, Germany,Europe,South Africa, South Asia,South-east Asia etc

Delivery time

Within 7 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

Plywood case/ as required

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

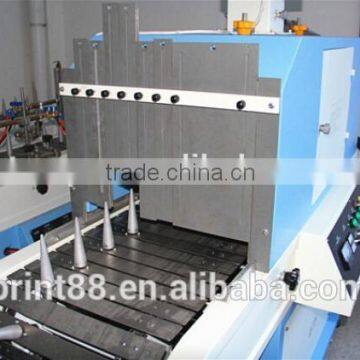

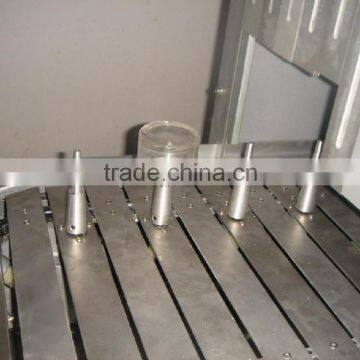

Product Effects

pe bottle UV curing machine, tunnel drying machine ,glass cup uv drying machine

pe bottle UV curing machine, tunnel drying machine ,glass cup uv drying machine
pe bottle UV curing machine, tunnel drying machine ,glass cup uv drying machinepe bottle UV curing machine, tunnel drying machine ,glass cup uv drying machine

sample picpe bottle UV curing machine, tunnel drying machine ,glass cup uv drying machine



pe bottle UV curing machine, tunnel drying machine ,glass cup uv drying machine




videos connected

pe bottle UV curing machine, tunnel drying machine ,glass cup uv drying machine

/watch?v=dckxjYcB0xo&list=UUZ_O_e55jo4RKcPTjjKl8qg

/watch?v=aeqLCxdMg0c

/watch?v=pm8si1QyJr4



Packaging & Shipping

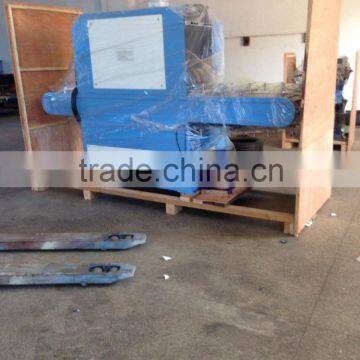

Package: machine wrapped with PVC film, package in plywood case

Shipping: by sea, by air, by express

pe bottle UV curing machine, tunnel drying machine ,glass cup uv drying machinepe bottle UV curing machine, tunnel drying machine ,glass cup uv drying machine




Company Information



pe bottle UV curing machine, tunnel drying machine ,glass cup uv drying machine

LUEN CHEONG GROUP LTD was specializing in manufacturing LC brands . including :various pad printer, silk screen printer, hot foil stamping machine, UV Curing machine for 25 years.


We passed ISO-9001-2000 certification in 2001, and we are a member of SGIA and all of our industrial printers had passed CEstandard.

we are the gold membership ofAlibaba and got a huge credit all the world .

There are customers from 98 countries to visit our factory and we had a good cooperation.

  pe bottle UV curing machine, tunnel drying machine ,glass cup uv drying machine

Our Services



1.All of machines provide an English operation instruction.

2.All of machines can guarantee 1 year for free and provide specific video .

3.Welcome to visit our factory and we supply technology training any time.



In order to benefit good rights and interests for our customers, we have done the testing strictly before the machine exports; try to provide the best after-sales service for our customers.



Company Purpose: The best quality, leading technology, and provide the best product and service for our customers.

pe bottle UV curing machine, tunnel drying machine ,glass cup uv drying machinepe bottle UV curing machine, tunnel drying machine ,glass cup uv drying machine

FAQ

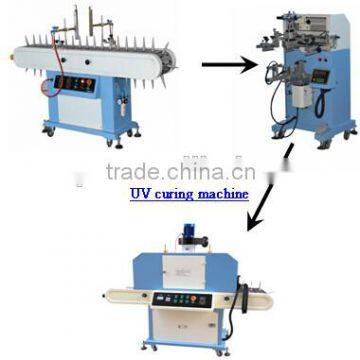

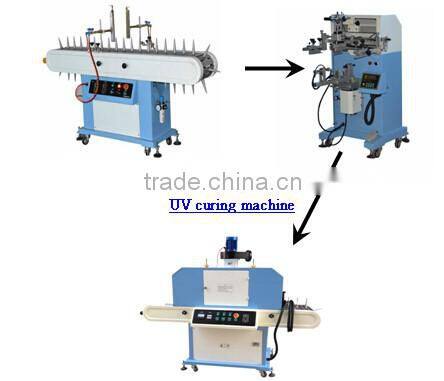

  1. Screen printing process of PP PE plastics bottle

                                    pe bottle UV curing machine, tunnel drying machine ,glass cup uv drying machine

 feel free to contact us!



pe bottle UV curing machine, tunnel drying machine ,glass cup uv drying machine
