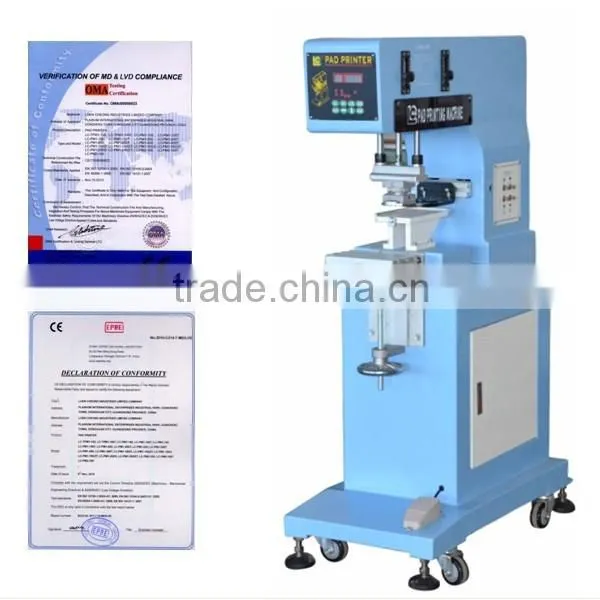

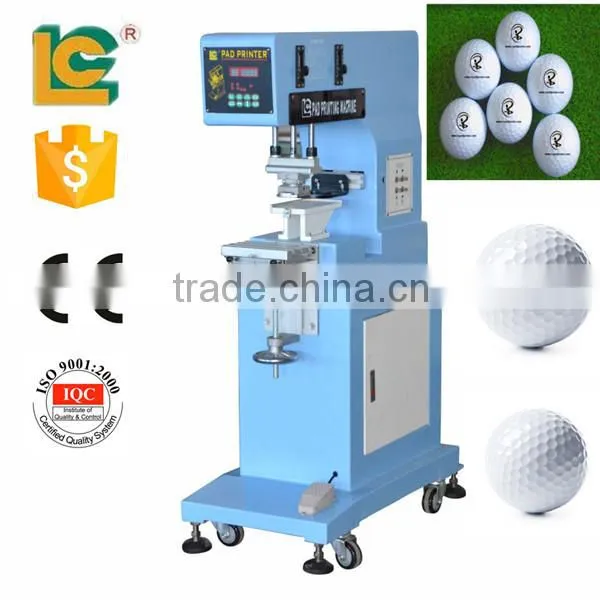

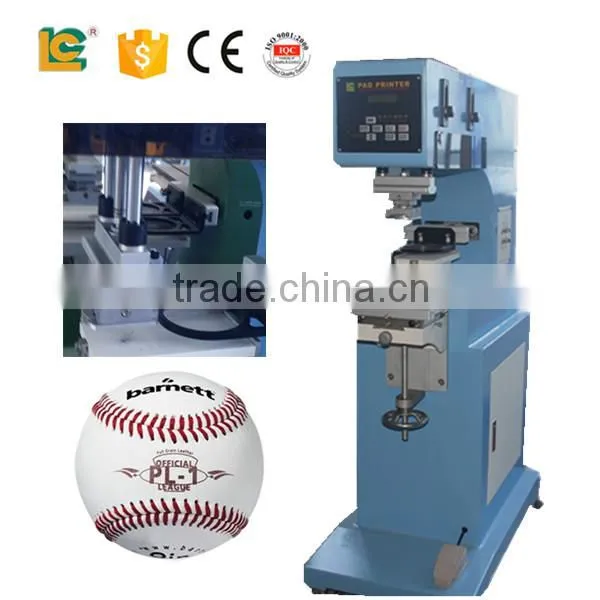

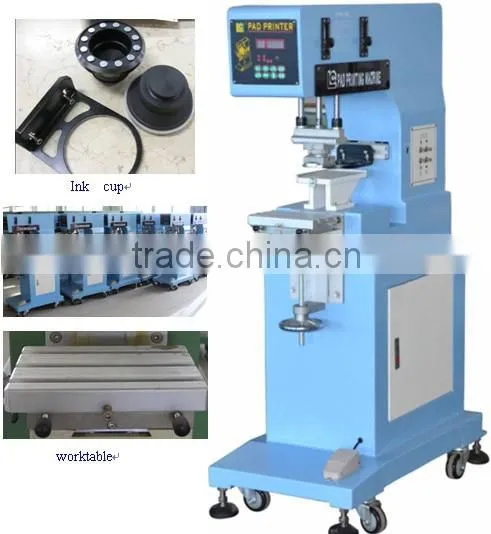

Penumatic 1 Color Closed Ink Cup Golf Ball Pad Tampo Printing Machine

Penumatic 1 Color Closed Ink Cup Golf Ball Pad Tampo Printing Machine photo-1
Penumatic 1 Color Closed Ink Cup Golf Ball Pad Tampo Printing Machine photo-2
Penumatic 1 Color Closed Ink Cup Golf Ball Pad Tampo Printing Machine photo-3
Penumatic 1 Color Closed Ink Cup Golf Ball Pad Tampo Printing Machine photo-4
Penumatic 1 Color Closed Ink Cup Golf Ball Pad Tampo Printing Machine photo-5
Penumatic 1 Color Closed Ink Cup Golf Ball Pad Tampo Printing Machine photo-6
US$ 1,800 - 2,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, pad printer
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Plate Type Other, pad printer
Place of Origin Guangdong, China
Brand Name LC
Model Number LC-PM1-150T
Usage Card Printer, Cloths Printer, Label Printer, Paper Printer, Other, Card Printer, Cloths Printer, Label Printer, Paper Printer, Golf Ball Printer
Automatic Grade Semi-Automatic
Voltage AC110V/220V
Gross Power 50w
Dimensions(L*W*H) 1300*460*1400mm
Weight 103kg
Certification CE ISO-9001-2001
After-sales Service Provided Engineers available to service machinery overseas

Dongguan China Penumatic Sealed cup golf ball pad tampon printing machine

Product Description

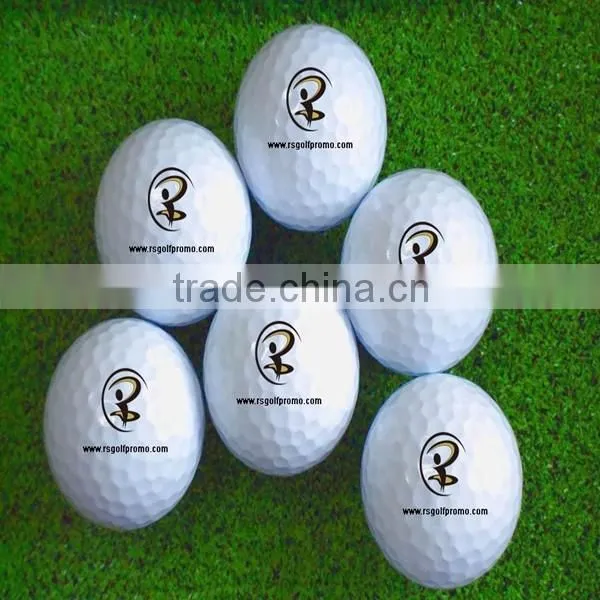

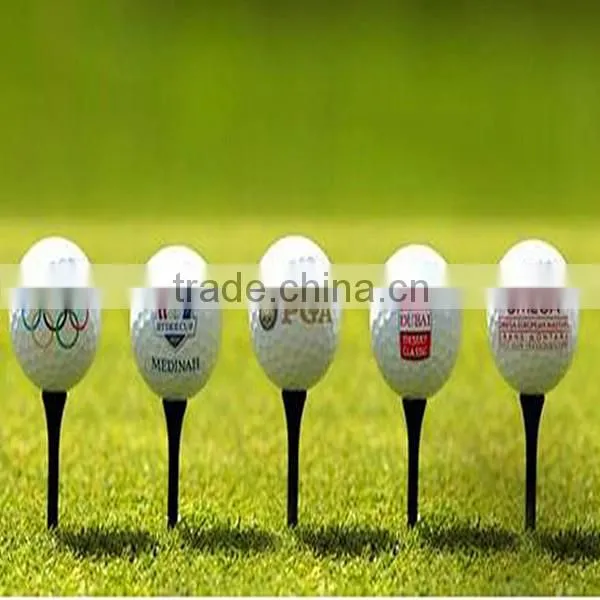

It is applied for print various kind of material,such as metal,glass,chinaware,plastic and so on.It also suitable for small printing area like plane, cambered and irregular surface,such as the button in mobile phone,golf ball and the ball head,toys,pen,mouse,electronic appliance,crafts and so on
Dongguan China Penumatic Sealed cup golf ball pad tampon printing machine



Advantages:

1. Controlled by microprocessor, easy operation, running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.

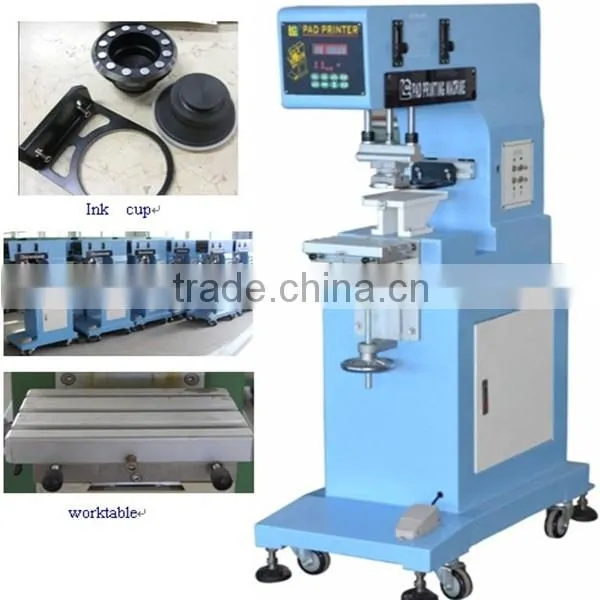

7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. With super long slide stroke to print large size workpiece.



specifications:

Item

Specification

Qty

Unit Price





Dongguan China Penumatic Sealed cup golf ball pad tampon printing machine



1. Model No: LC-PM1-150T
2. Operation: Pneumatic
3. Printing Colors: 1
4. Max. Printing area: 80*135mm
5. Plate area: 100*200 mm2
6. Sealed ink cup diameter: 60 or 90 mm
7. Max printing speed: 1800PCS/H
8. Wattage: 220V/ 50Hz 110V/60Hz
9. Air pressure: 6 Bar
10. Machine size: 1300×460×1400mm
11. Machine weight:103kg

12.Main Parts: FESTO CYLINDER MADE BY GERMANY

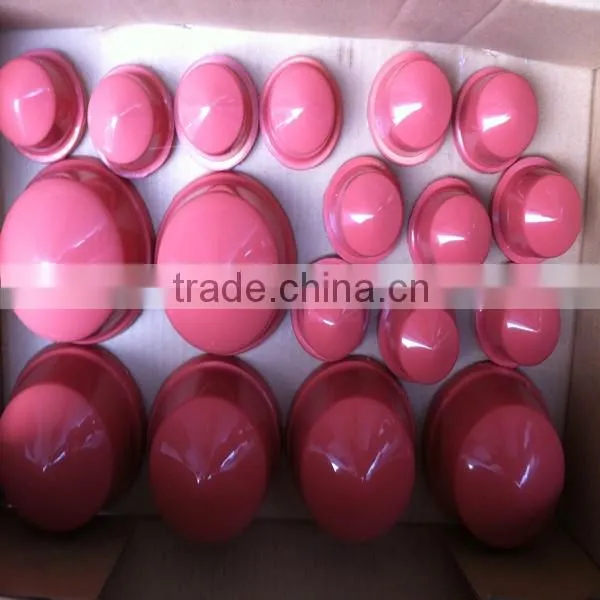

13.Free Fittings :SILICONE PADS, PRITNING PLATES,TOOL, ENGLISH MANYAL



1set

 $1800-2500



Remark:

1. Price Term: FOB Shenzhen, China.



2. Payment Term: 100% T/T in advance.



3. Loading time: 7days after deposit



4. Package: machine wrapped with PVC film, package in wooden case.

Product Overviews









Packaging & Shipping



Shipping way

By sea, by air, by express

Delivery time

Within 7 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China









Certifications



Company Information



 Luen Cheong Printing Equipment Limited   is specializing in manufacturing LC brands including luding :various pad printer, silk screen printer, hot foil stamping machine, UV Curing machines & cliche making machine for 25 years.

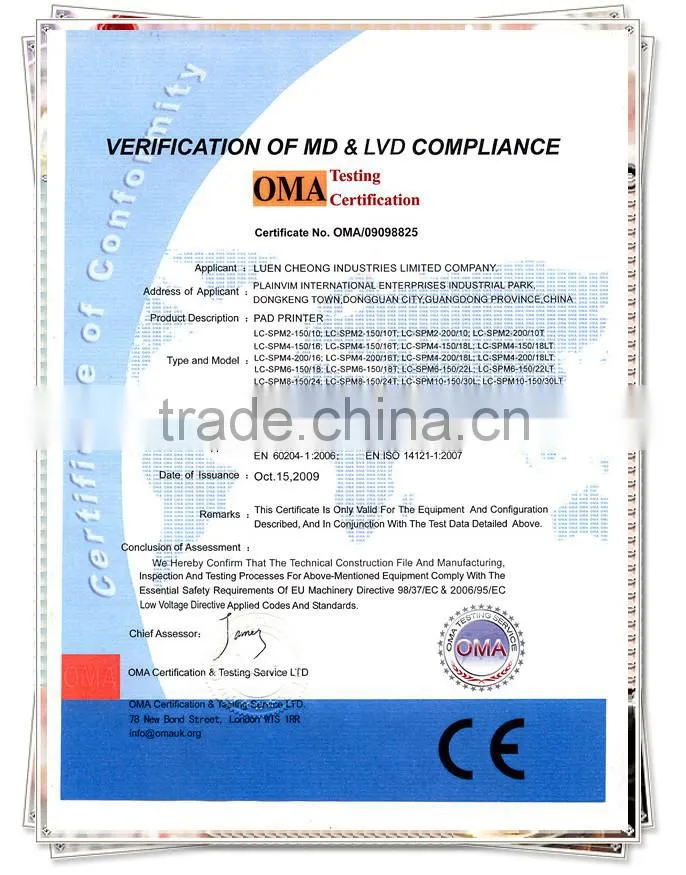

We passed ISO-9001-2000 certification in 2001 and we are a member of SGIA and all of our industrial printers had passed EURO'S CE standard.
There are customers from 98 countries to visit our factory and we had a good cooperation.


Our Services



Should any more informations be required,please feel free to contact with us.

1 .The guarantee time is 1 years, and maintain is lifelong.

2. We will make sure the machine all work well before package.

3.Your inquiry related to our prduct &price will be replied within 12 hours .

4.Our company have 25 years experience in the printing file.
