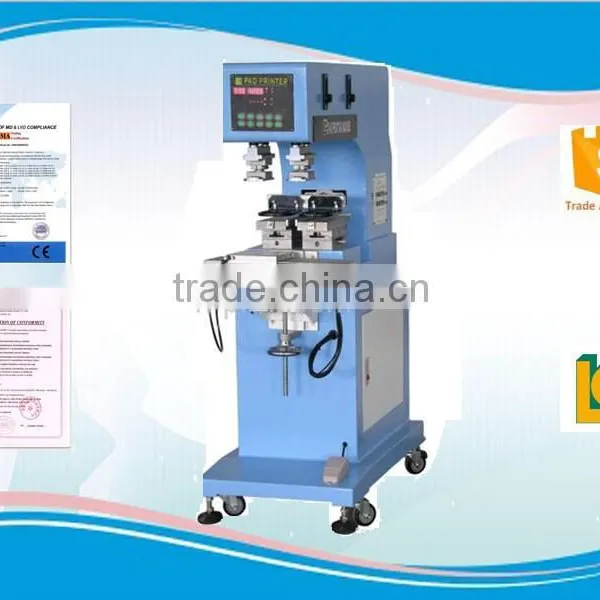

two Color Shutte Sealed Cup pad printer tampografia LC-PM2-100T
| Product name | 2- Color Shutte Sealed Cup pad printer for led bulb LC-PM2-100T |
| Model No | LC-PM2-100T |
| Certificate | CE, ISO-9001-2000 |
| Brand Name | LC,China |
| Description |

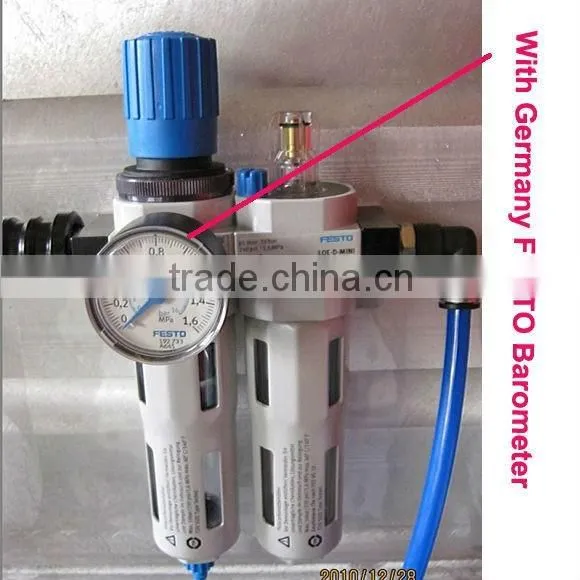

2- Color Shutte Sealed Cup logo pad printer machine Cylinder of pad printer is German FESTO brand.Electrical components are imported from Japan. While vaccum system is from Taiwan. It meets CE standard, with very stable running. 2-color pad printer can print 2 colors at one time. Its printing speed reach 1400 pcs per hour. It is with closed ink cup, can save 60% ink and 90% thinner. Closed ink cup to drive by independent cylinder, so that can ensure removing ink completely and prolong the life of sealed cup and steel plate. |
| Advantage |
1. Controlled by microprocessor, easy operation, running stably and accurately. 2. 4-digit auto counter built-in. 3. Cast aluminum machine frame, low weight and high intensity, turnable machine head. 4. Separate adjustment of the pad up/down stroke speed. 5. Ink scraper is auto balance keeping in printing. 6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying. 7. Ink cup is turnable and adjustable in vertical and horizontal direction. 8. With super long slide stroke to print large size workpiece. |
| Parameter |
1. Model No: LC-PM2-100T 2. Operation: Pneumatic 3. Printing Colors: 2 4. Max. Printing area: 80*90mm 5. Plate area: 100*200 mm2 6. Sealed ink cup diameter: 90 mm 7. Max printing speed: 1400PCS/H 8. Power supply: 110/220V, 60/50Hz 50W 9. Air pressure: 6 Bar 10. Machine size: 910× 550× 1470mm3 11. Machine weight: 120kg |
| Usage |
2- Color Shutte Sealed Cup logo pad printer machine applied for print various kind of material,such as metal,glass,chinaware,plastic and so on, and suitable for small printing area of plane, cambered and irregular surface, such as the button in mobile phone,golf ball and the ball head,toys,pen,mouse, electronic appliance,crafts etc. |
| Free fittings |
1. 2 pcs steel plates 2. 2 pcs rubber pads 3. 1 Work box 4. English operating instruction |
| Shipping way | By sea, by air, by express |
| Delivery time | Within 7 days from the receipt of payment |
| Loading seaport | Shenzhen or Hong Kong, China |
| package | Plywood case |
| Price term | FOB Shenzhen, CFR, CIF, FCA, EXW etc |
| Payment term | 100% T/T in advance(negotiation) |
two Color Shutte Sealed Cup pad printer tampografia LC-PM2-100T
Packaging:Wooden case(depend on your requirements)
Delivery: 7days
1 The guarantee time is 1 years, and maintain is lifelong. During this time, if any work piece dose not work well and which is not caused by worker and can not control naturally, the supplier provide it free of charge, but the carrier cost must be in buyer's side. And the machines have matched an urgent foot switch.
2 The supplier must sure the machine all work well before package.
3 we will provide the working video after delivery the machines.
4 Welcome your engineers to come to our factory for training.
