Specifications
1.manual uncoiling machine2.simple structure and beautiful outlook
3.good service
4.high efficiency high quality

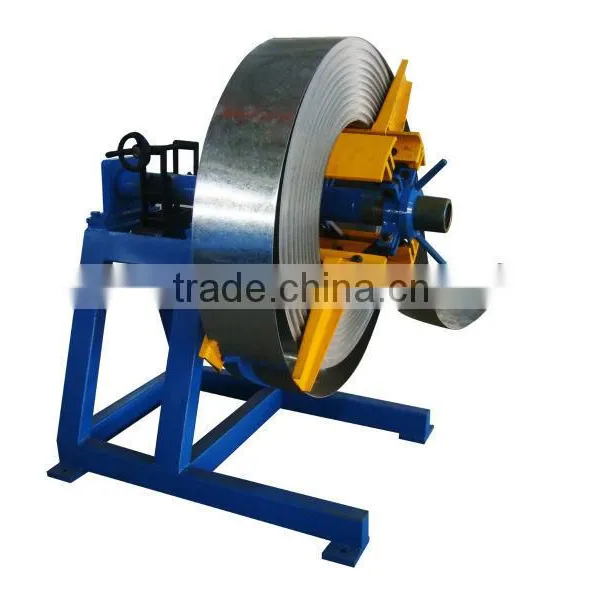

High Quality Color steel uncoiling machine
Specifications:
We are specialied in making uncoiler machine, we can design all kinds of pattern.
Product Name: Simple Uncoiler Machine
Simple Uncoiler Machine Components
The uncoiler consists of the moving dolly, uncoiler with pressing arm, frame with lead rail, and hydraulic system. The moving dolly can be lifted, move on the lead rail, carry the coil to the uncoiler, the leafs of the ucoiler expanse, the coil be fixed on the uccoiler, main axis of the uncoiler rotate, the coil sheet comes out. After the coil sheet fed into the roll forming machine, the coil sheet will be pulled back to minimize the pendant.
Simple Uncoiler Machine Function
The moving dolly can be lifted, move on the lad rail, carry the coil to the uncoiler, the leafs of the ucoiler expanse, the coil be fixed on the uccoiler, main axis of the uncoiler rotate, the coil sheet
comes out. After the coil sheet fed into the roll forming machine, the coil sheet will be pulled back to minimize the pendant.
Work Flow:
Fix coil to the decoiler ---- fix coil sheet to lifting dolly ---- lifting dolly moves to decoiler --- lifting dolly lifts to the same center with decoiler ---- lifting dolly moves more closely to arms of decoiler---- expanse (coil moves to the decoiler) ---- lifting dolly returns ---- axis of decoiler rotate (coil sheet comes out).
2 Ton Simple Uncoiler
3 Ton Simple Uncoiler
5 Ton Passive Uncoiler
3 Ton Hydraulic Uncoiler
5 Ton Hydraulic Uncoiler
Hydraulic Uncoiler with Press Arm and Coil Car
