Please take few minutes to have a look in detail as following. Thank you!
tile forming machine

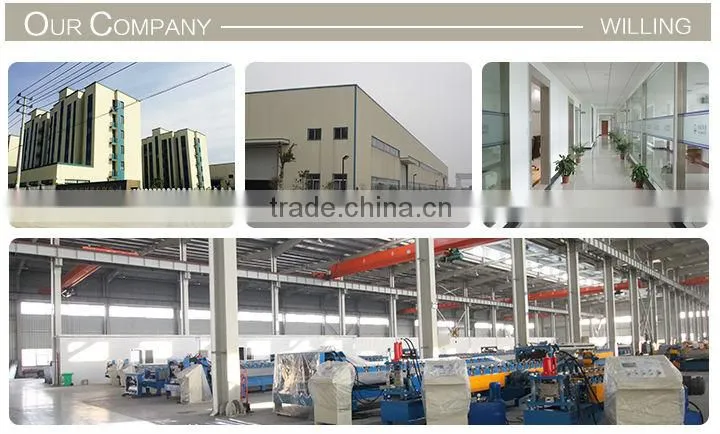

1. Do our best,Brief introduction of our company
HangZhouWilling inernational Co.,ltd located in Jiaxing city of Zhengjiang province and next to 320 National Highway. We are specialized in producing different types of automatic cold roll forming machine, such roofing tile making line, Shutter and door frame roll forming machine and Automatic partial adjustment C purlin machine.
2. We do Detail, Machine Parameters

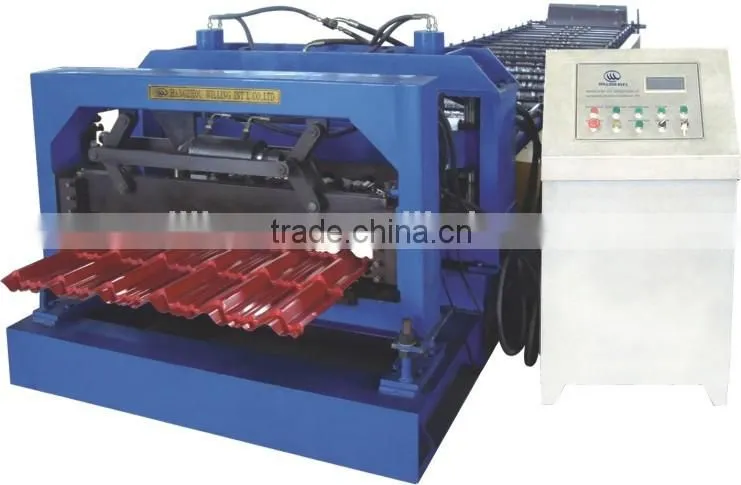

tile roll forming machine is mainly used in the production of corrugated sheetsThe tile forming line includes in decoiler unit, sheet guideing equipment, roll forming system, pressing equipment ,cutting equipment, hydraulic station, electric controlling system and run out table . The machine is artistically made and transmits smoothly at a low noise. The suitable material is galvanized and pre-painted steel sheet. It is used as the roof of modern buildings with better anti-press and anti-bending performance. Its length is set according to customer’s requirements and transportation situation.
payment
30% T/T down payment,and 70%T/T balance before delivery after you inspect the machine.one machine usual need about1* 40’ containers.
Technical Parameters
| tile roll forming machine | |
Material type |
Alizinc steel or galvanized steel |
Material thickness (mm) |
0.4-0.7 |
Material yield stress (Mpa) |
300-350 |
Max. forming speed (m/min) |
8-12 |
Roll material |
PPGI; Steel with chorme treament |
Roller driven type |
Chain transmission |
Controller & operation |
PLC& touch screen and button |
Hydraulic system pressure (Mpa) |
12 |
Hydraulic station motor power (KW) |
5.5 |
Main motor power (KW) |
18.5~22 |
Cutting Tolerance |
≤±2.5mm ( length≤ 5000mm) |
Power Requirement |
Uncoiler power:2.2kw |
Working Speed |
2.0-3.0 m/min. ( nodal distance at 350mm,) |
Total power (KW) |
24~27.5 |
Controlling system |
PLC( Mitsubishi) |
Total weight (Kg) |
About 18000 |
Dimension ( Length/Width/Height ) |
about8000×1550×2000mm |
station groups |
about18 |
380v /220v or as the requirement of the customer |
|
For floor desk roll machine , according to our company standard, we will offer you following components as the standard configuration.
Standard Equipment of Machine
Uncoiler 1pc
Guiding Equipment 1set
Roll Forming Equipment 1set
Pressing equipment 1 set
Post Cut Equipment 1set
Hydraulic Station 1pc
PLC Control Penal 1pc
This floor decking roll forming machine has following components can be selected as customer requirements specially.
3. We do you like,Optional components
1) Coil Feeding Equipment: Consists of one uncoiler with capacity of 3000kgs and its base. The steel sheet is
manually fed to the guiding equipment under the function of friction and traction.
2) Guiding Equipment : Adopting guiding bar and sliding block to control the width and position of the steel sheet. The coil is guided in the correct position and passed to the roll forming equipment
.
3) Mainframe Transmission :Transfer the main motor power to the rollers through chains and sprockets, and also transfer the coil sheet.
4) Roll forming system: The main frame of machine is welded separately and the outside wall is connected by screw after being rotoblasted on the surface.The rollers are surface-chromeplated after being machined by the exact machine tool.
5)Pressing equipment: After formed the shape of the tile panel, pressing the tile panel with pressing equipment which ensures the shape lasting and more beautiful.
6) Post Cut Equipment: The length and blocks can be set by the buyer through the control panel, when reach the set length, the machine will cut the panel automatically. The cutting is finished under the power of hydraulic station which guarantees the precision of cutting. The cutting blade shall be change when the size of purlin is changed. The machine is shipped with cutting blades with all sizes of C purlin.
7) Hydraulic Station: Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.
8) PLC Control Panel:
The electric controlling system of this machine consists of five parts: operating system, screen, PLC, transducer and strong electricity part. The controlling system of this machine are imported from Mitsubishi company of Japan. The system uses modularized structure and has convenient, reasonable, canonical wiring arrangement, and its maintenance is quite easy. The independent operating console facilitates the mutual dialogue between the operator and the machine. The operation is easy and steady and can be choosed operation by manual or automatically.
4. We do Your care, Machine Loading
Because of the long trip and your super trust, we will make sure Purlin roll forming machine can be
appeared in front of you in fully good condition, you will fall in love with it with first glimpse!
5.We do our utmost, Why WILLING
1). Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We
need your machines running in order to keep your business running.
2). Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3). Q: How does your factory do regarding quality control?
A: Quality is priority. WILLING People always attach great importance to quality control from the very
beginning to the end of the production. Every product will be fully assembled and carefully tested before
it's packed for shipment.
4). Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name
components.
5). Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. If you check with WILLING, you will see that we have never got any complaint from our customers.
