Specifications
wall and roof panel roll forming machine1.simple structure and beautiful outlook
2.good service and high efficiency

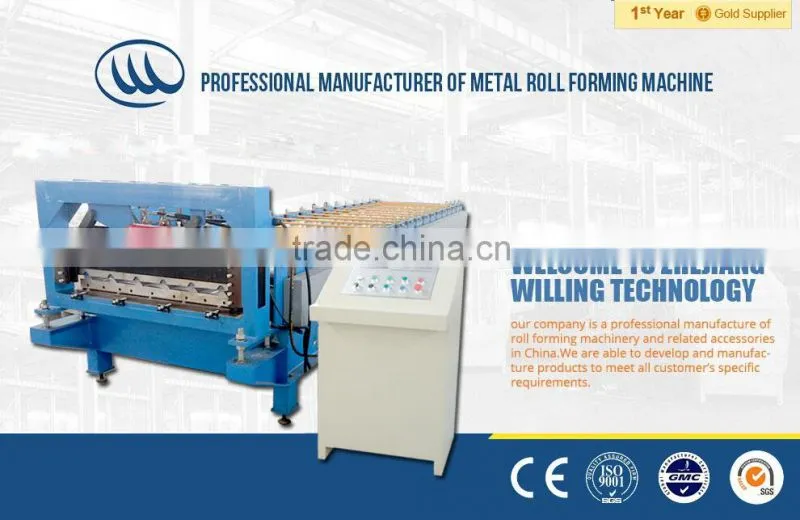

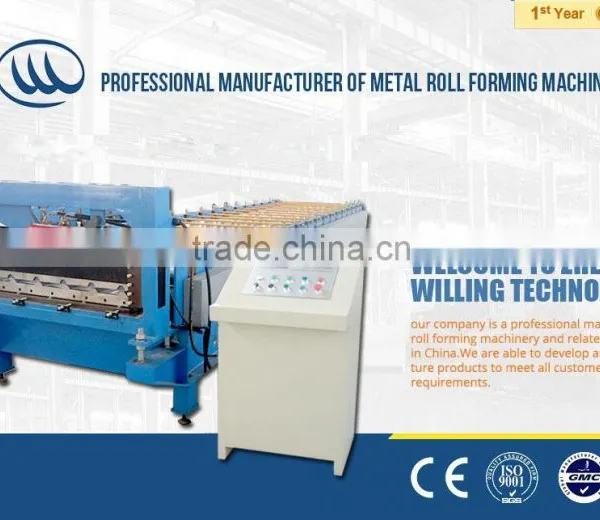

wall and roof panel roll forming machine
Technical parameters: |
|
Material type |
Pre-painted steel sheet |
Material thickness (mm) |
0.2-0.7 mm |
Material yield stress (Mpa) |
230~550 |
Max. forming speed (m/min) |
8-12 |
Roll material |
45# steel with chrome |
Roller driven type |
Chain transmission |
Controller & operation |
PLC& touch screen and button |
Index error of length |
10m±2mm |
Quantity of stands |
about: 24 groups |
Hydraulic system pressure (Mpa) |
12 |
Hydraulic station motor power (KW) |
5.5 |
Voltage |
380V 3 phase 60Hz or at buyer's requirement |
Quantity of stands |
about: 13 groups |
Total power (KW) |
13 |
Total weight (Kg) |
About 10000 |

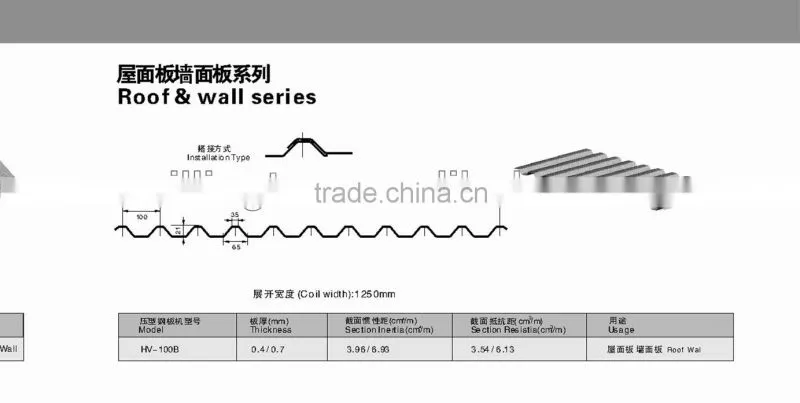

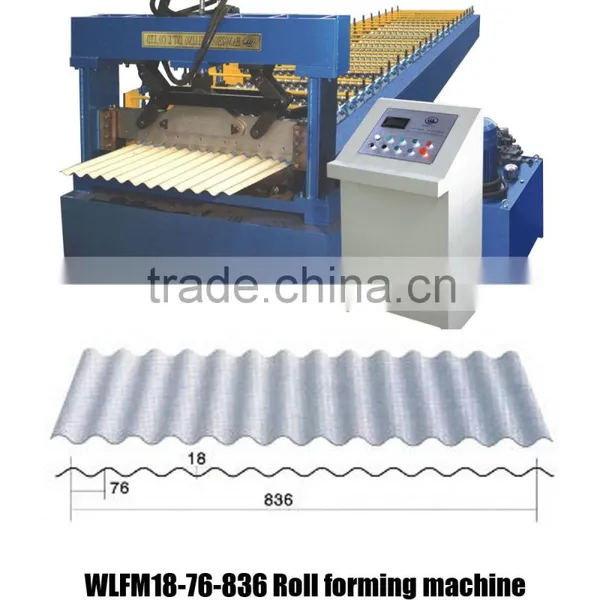

Process sketch

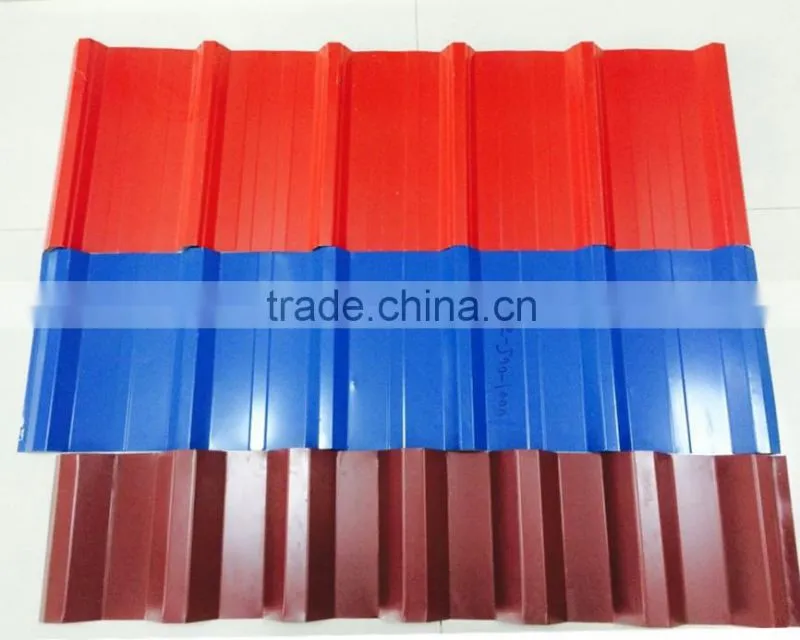

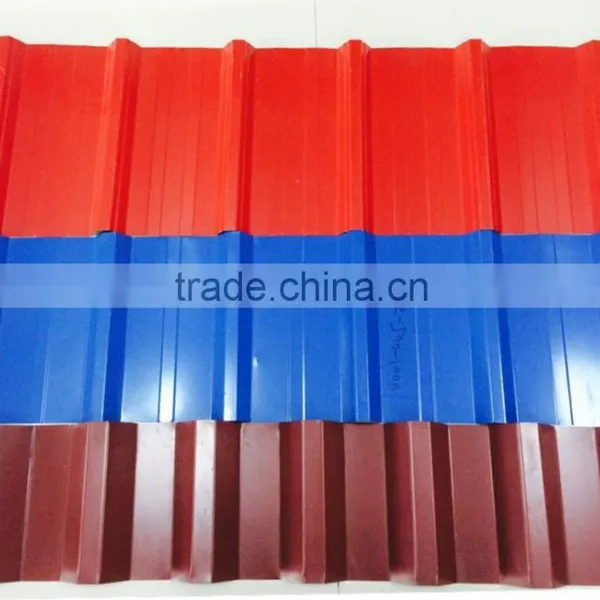

Wall and roof panel roll forming machine uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate. The products of it are used as the roof tile and wall panel outside of building, to increase the beauty and durability of the roof tile and wall panel. This line has no limit on processing length; you can set several different data on the computer control cabinet according to your own need. After pressing the button "Confirm", the machine can produce the panel automatically according to the set data. The molding plate surface smooth and not easy to be marked when it is being stamped. So it is easy to install. The product conforms to National Steel Construction Building Standard.

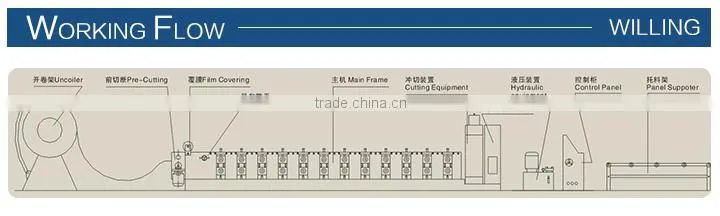

Uncoiling the sheet --- Sheet guiding --- Roll forming --- Measuring length&Shearing --- Sheet to the supporter (option: automatic stacker).

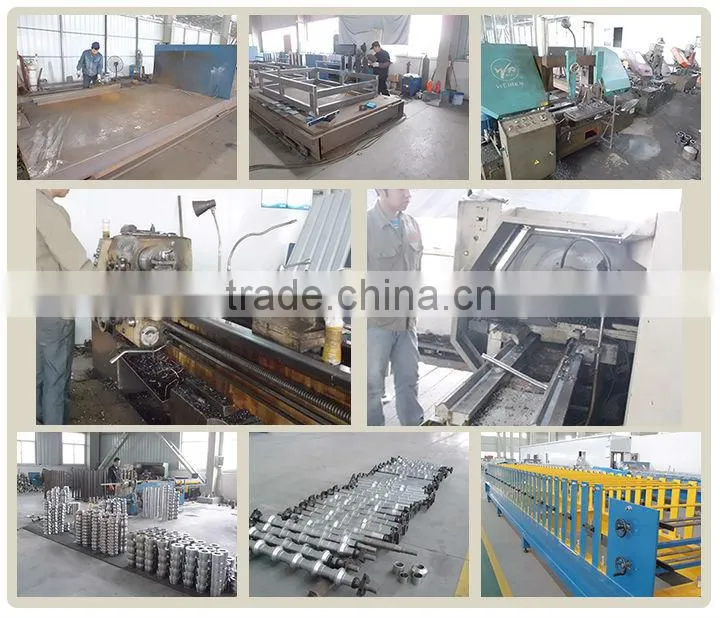

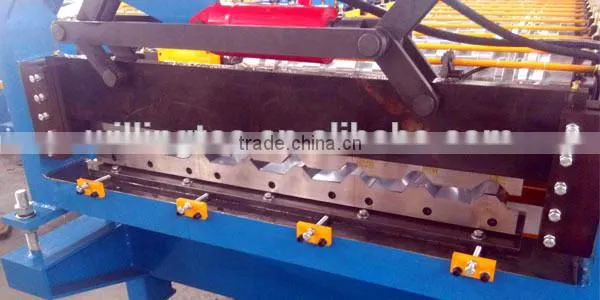

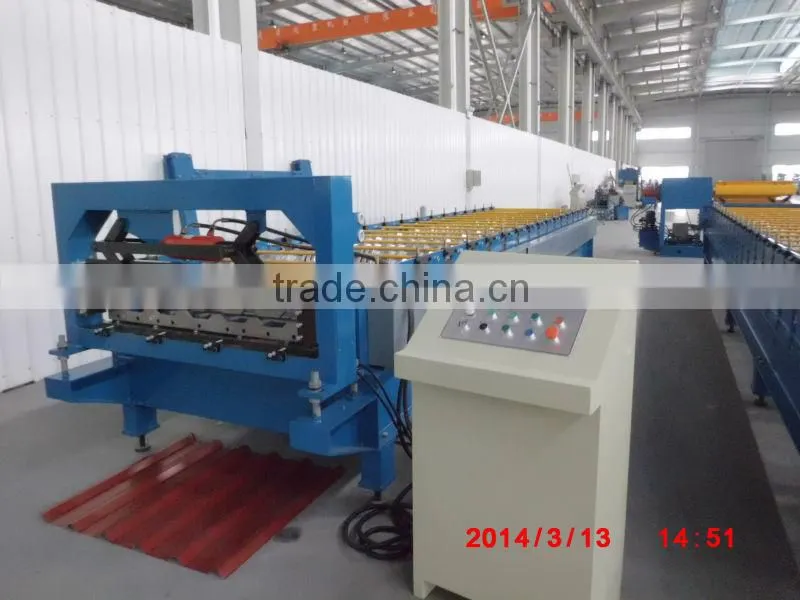

other pics for machine
service
We do our utmost, Why WILLING
1). Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We
need your machines running in order to keep your business running.
2). Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3). Q: How does your factory do regarding quality control?
A: Quality is priority. WILLING People always attach great importance to quality control from the very
beginning to the end of the production. Every product will be fully assembled and carefully tested before
it's packed for shipment.
4). Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name
components.
5). Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. If you check with WILLING, you will see that we have never got any complaint from our customers.
CE and ISO certification

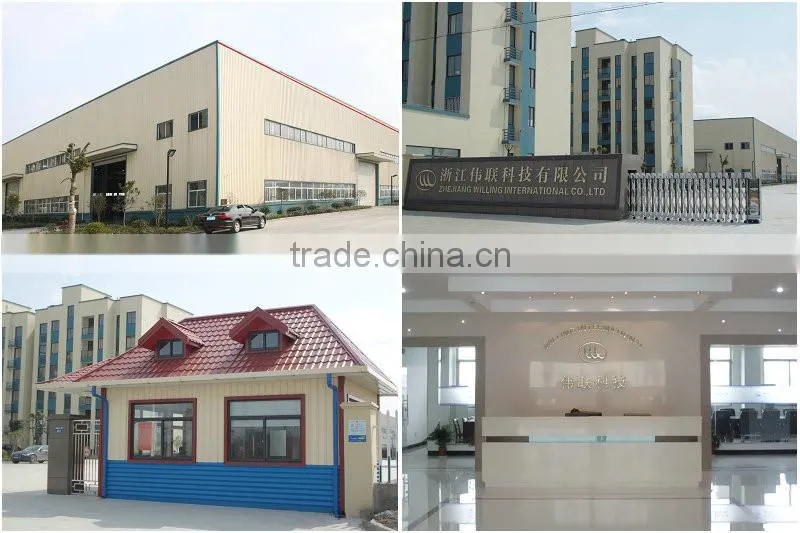

ZheJiang Willing Technology Co., Ltd. is located in Tongxiang economic development zone, which is about 2 hours far from Shanghai.
We are a professional manufacturer and exporter of roll forming machineries and products. The main items: wall and roof panel roll forming machine, folding & bending machines as well as its auxiliary equipment, roofing tile sheets, corrugated steel sheets, decking sheets, sandwich panels, purlins, H beams, galvanized steel coils, pre-painted steel coils, construction ... View detail
