C or Z Steel Purlin Roll Forming Machine
US$ 65,000 - 75,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Steel Purlin Roll Forming Machine
Tile Type:
Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanhai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Steel Roof Tile Roll Forming Making MachineUS$ 27,000 - 36,000MOQ: 1 Set -
IBR Used Roll Forming Machine For Roof And WallUS$ 23,000 - 26,000MOQ: 1 Set
-
Pipe Bending Machine Steel Grill Door MachineUS$ 14,000 - 16,000MOQ: 1 Set
-
CE Glazed Floor Tile Making MachineUS$ 25,000 - 30,000MOQ: 1 Set
-
Quality Products Wall and Roof Roll Forming Machine Prices Made in ChinaUS$ 18,000 - 25,000MOQ: 1 Set
Condition
New
Type
Other, Steel Purlin Roll Forming Machine
Tile Type
Steel
Use
Roof
Place of Origin
Zhejiang, China
Brand Name
WILLING
Power(W)
30KG
Weight
About 12000
Certification
CE GMC ISO Soncap and so on
Warranty
1year
After-sales Service Provided
Engineers available to service machinery overseas

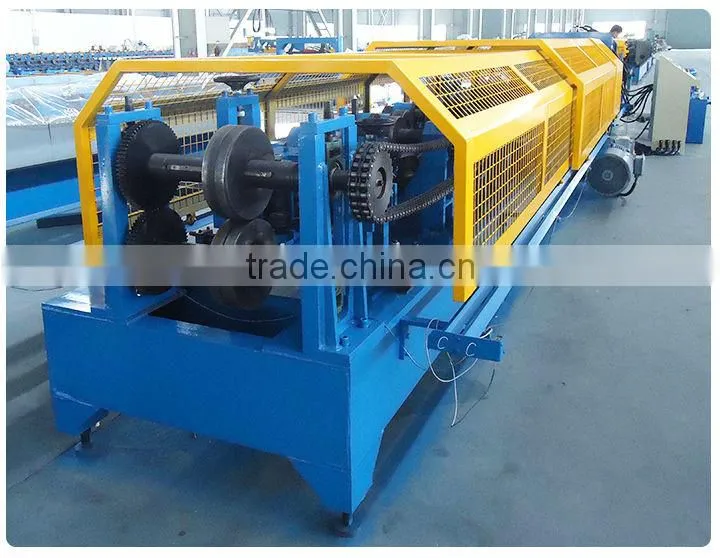

C or Z Purlin Roll Forming Machine
Components of adjustable C&Z purlin roll forming machine

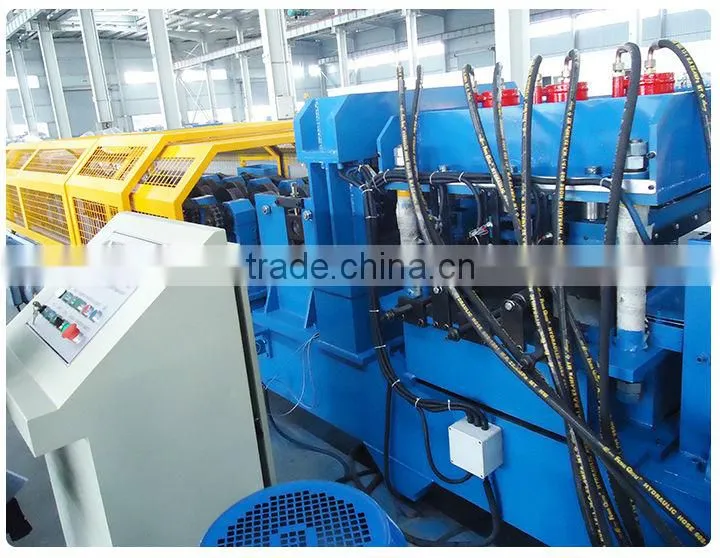

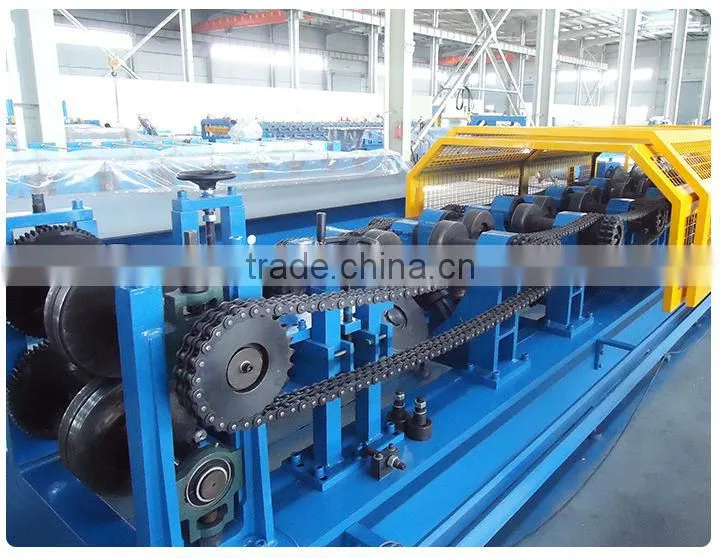

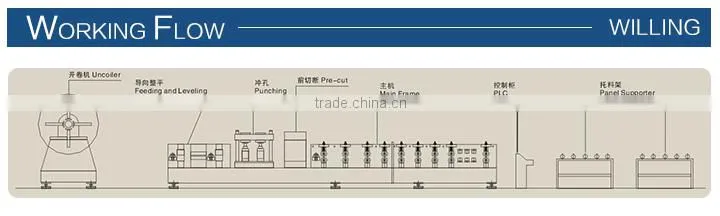

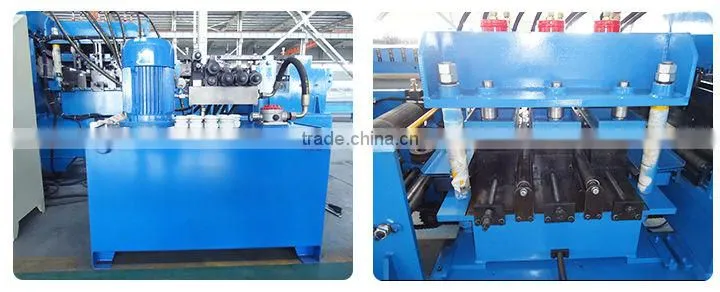

The roll forming machine includes 4tons manual uncoiler unit, sheet guiding equipment, straightening device, pre-punching device, roll forming system, cutting equipment, hydraulic station, electric controlling system(PLC) and run out supporting table.
Main Parameters
Material Spec |
Galvanized or Carbon steel sheet (Q235) |
| Coil thickness | 1.5~3.0mm |
| Working speed | 10~12m/(cutting time is not included) |
| Cutting tolerance | ≤±2.5mm ( length ≤5000mm ) |
| ≤±3.0mm (5000mm <length ≤10000mm) | |
| Power requirement | Main motor power: 15Kw(Confimed by final design) |
| Hydraulic station power: 5.5Kw (Confimed by final design) | |
| 3 tons manual un-coiler | Max. capacity: 3000kgs; Inner Dia.: 508mm |
| Main roller quantity | Around 14 stands (Confimed by final design) |
| Type of cutting | Roll-formed and length-set cutting |
| Voltage | 380V 3phase 50HZ or as customers' requirements |
Material of main equipments
Roller Die Material |
G G Cr15 bearing steel with quenched treatment |
| Active Shaft Material | High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft, shaft diameter 90mm |
|
Electric elements:
|
Control system PLC panel, transducer and touch screen originally imported from Mitsubishi of Japan. Other elements from famous suppliers in China |
| Cutter blade: | Cr12 mould steel with quenched treatment |
