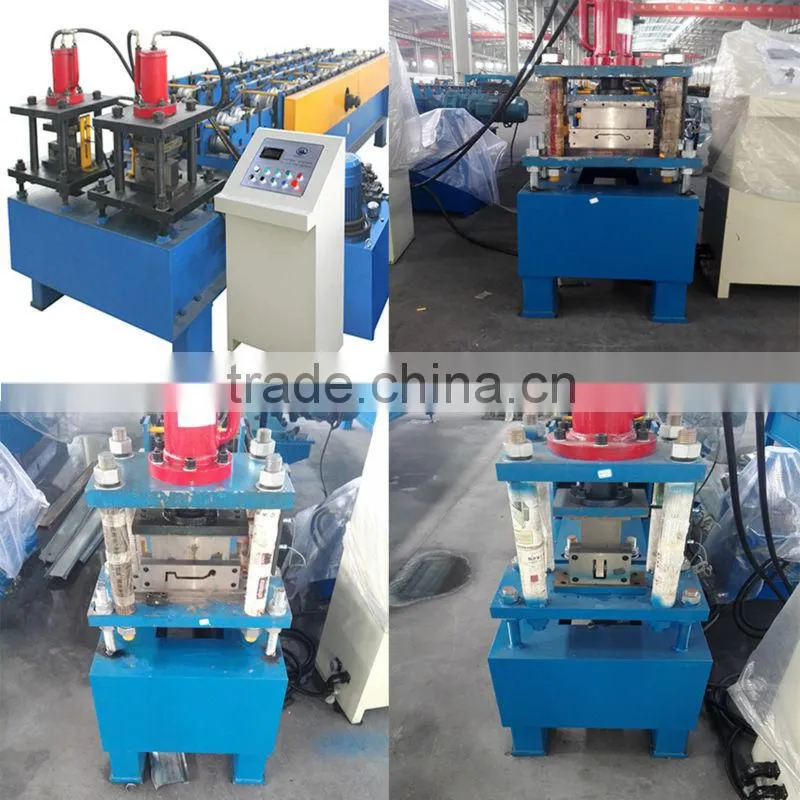

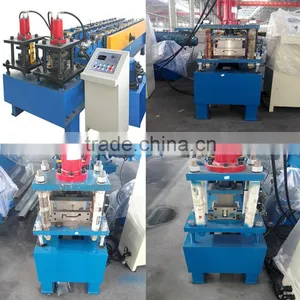

Help CenterHigh Quality Roll Shutter Door Roll Forming Machine/Roller Shutter/Rolling Slats
Related Products
-
2014 New Typer Used Glazed Tile Roll Forming MachineUS$ 25,000 - 35,000MOQ: 1 Set -
Reliable Performance Aluminium Roofing Sheet Making MachineUS$ 22,000 - 35,000MOQ: 1 Set
-
High Speed Used Slitting Machines and Line for SaleUS$ 8,000 - 160,000MOQ: 1 Set
-
High Speed c z Changeable Purlin Roll Forming MachineUS$ 65,000 - 85,000MOQ: 1 Set
-
c z Purlin Roll Forming MachineUS$ 29,000 - 38,000MOQ: 1 Set
Specifications
roll forming machine25m/min standard producing speed
top quality standard
life long professional service
1.We do Best, About Machine
1) To produce the best machine, WILLING is taking EUROPEAN quality standard;
2) Choose the best material and components, and adopting our 10+ years experience;
3) WILLING achieves that the machine capacity is double of the competitors;
4) The machine working speed can be 7.5m/min;
5) Only 1 worker to operate for roll forming machine .
2.We do Detail, Machine Parameters
Product name |
Roll Shutter Door Roll Forming Machine |
Tile Type |
PPGI/GI /Aluminumcoil |
Yield stress |
230~300Mpa |
Thickness |
0.6-0.8 mm |
Material Width |
148mm |
Quantity of stands |
12 |
Max. forming speed (m/min) |
20-30/min |
Main motor power |
7.5kw |
Hydraulic station motor power (KW) |
5.5kw |
Voltage |
380V 3 phase 60Hz or buyer'srequirement |
Controlling system |
PLC( Mitsubishi) |
Operation |
Touch screen and button |
Dimension ( Length/Width/Height ) |
5000mm*500mm*900mm
|
Container required |
40inch |
Total weight (Kg) |
About8000kg |
3.We do Standard, Machine Components
For this machine, according to our company standard, we will offer you following components
as the standard configuration.
Passive Uncoiler |
1pc |
Guiding Equipment |
1pc |
Roll Forming Equipment |
1pc |
Post Cut Equipment |
1pc |
Hydraulic Station |
1pc |
PLC Control Penal |
1pc |
Supporter Table |
2pc |
Working Flow
Uncoiling→Sheet Guiding →Roll Forming→Pressing →Measuring Length & Shearing →Sheet to Support Table

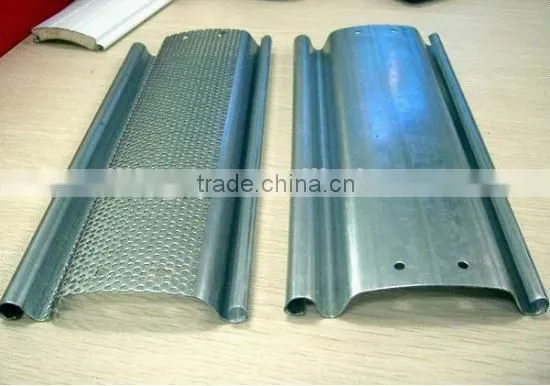

Finished Product Profile
We can make and design what kinds of roll forming machine according to your profile drawings.
1. Customers` Design ,Size,Color&Logo are accepted.
2. With10years professional manufacture experience
3. Prompt Delivery&Competitive Price
4. Main markets: Middle East, Europe, North America, Africa,Southeast Asia.
5. After-sales service:
(1)We provide the technical support for whole life of our machines.
(2)If buyers need the technician to go abroad ,we will arrange the technician,but the buyers should take all the cost,
including visa,roundtrip ticket etc.
6. Feature of our machine:
(1)Our machine can use galvanized steel sheet,colored armor plate or aluminum plate as the material plate.
(2)Controlling by computer,PL display,operationis easy,running is steadyand reliable,endurable,maintence-free.
(3)We can make and design what kinds of roll forming machine according to the request of customers
