EPS Foam Block Molding Machine

Name: EPS Foam Block Molding Machine
Brand: WILLING
SKU: 114544153
Availability: InStock

US$ 40,000 - 90,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Tile Forming Machine

Tile Type:

Colored Glaze Steel

Zhejiang Willing Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai or ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Tile Forming Machine

Tile Type Colored Glaze Steel

Use Roof

Production Capacity 1-5Meters/Min

Place of Origin Zhejiang, China

Brand Name WILLING

Model Number as the client request

Power(W) 42KW

Voltage as the client request

Dimension(L*W*H) 40M X 2M X 5 M

Weight 20TON

Certification CE

Warranty 1 YEAR

After-sales Service Provided Engineers available to service machinery overseas

Specifications

EPS foam block molding machine
1.thickness :0.4mm-0.6mm
il width 1200 mm.
3.yield strength:235MPa.

WE CAN DESIGN THE EPS SANDWICH PANEL MACHINE ACCORDING TO YOUR PROFILE OR SAMPLE.

Product Description

1. Technical Parameters

Sandwich panel specification
1	length	cutting length≥2 m

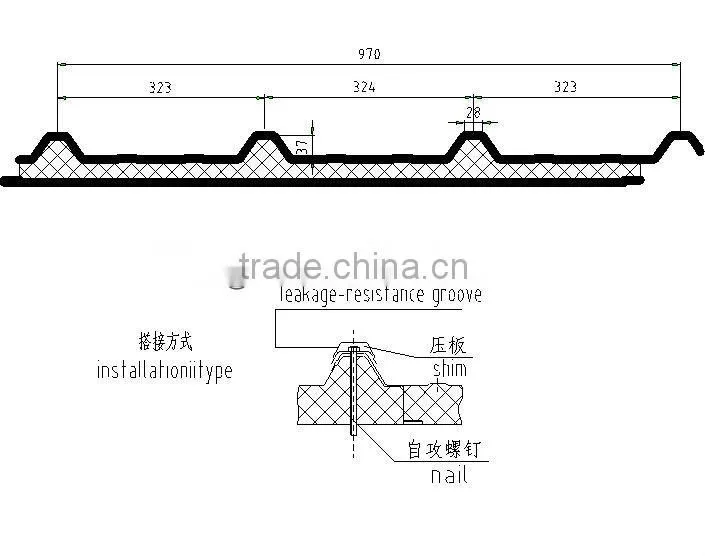

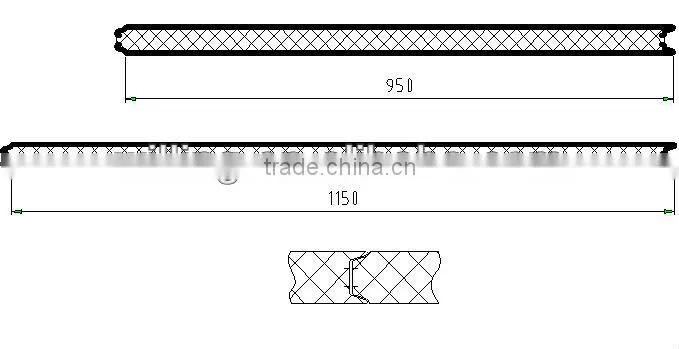

2	width	(see profile drawing)
3	thickness	(see profile drawing)
raw material specification
1	coil thickness	0.4~0.6 mm (steel be flat without ups and downs,deformation and bending)
2	coil stress	≤235MPa
3	coil max width	1200 mm (tolerance±2mm)
4	coil max weight	5t
5	coil ID	500 and 600 mm
6	coil OD	1000 mm
7	EPS material	density is≥18kg/m3,unstraight of each side ≤mm/m,,curve ≤mm/m,surface be even,ineveness smaller than 1.mm/m,EPS material single piece length more than ≥3m.
8	Rockwool material	length more than 100mm,vertical lined,density ≥100kg/m3 ,single piece length more than ≥3m
9	Material suitable shape	see profile drawing.(prepared by customer and according to the )
10	Material suitable width	minimum shall be 1/2mm of the finished panel width.

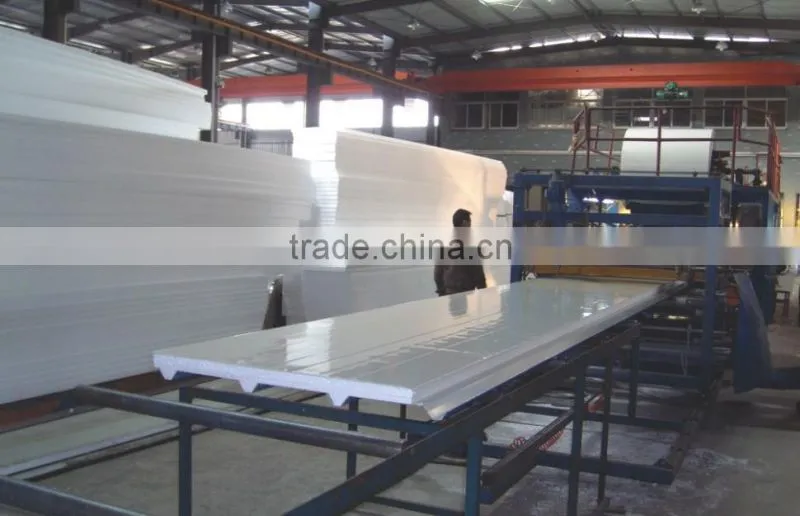

Machine line specification
1	Work line speed	1000-3000mm/min (frequency speed adjustment).attention:depend on glue brand, temperature and proficiency of operators.
2	Machine length	about 40 m
3	Working height	1050 mm(panel output height)
4	Laminating effective length	7.5 m
5	Control way	adopt industrial computer PLC
6	Total power	about 40 kw
7	power	380V/3phase/50 Hz
8	control voltage	24 V/110 V/220 V
9	pneumatic	0.7 Mpa (self prepared by factory)
10	best working temperature	around 25°C

2. Component

1) roll foming machine
A)	Hydraulic uncoiler
B)	Guide device
C)	Filming system
D)	Flat sheet slitting system
E)	Roll forming system
F)	Panel support frame
G)	Assistant forming system
2) Laminating body
A)	Guiding device
B)	Inside material feeding device
C)	Laminating
D)	Film covering device
E)	Cutting device
F)	Glue supplying system
G)	Gelatinizing device
H)	Core material groove making system
I)	Dusting device
J)	Electrical controller
