High Speed Eps Raw Material Line Price

Specifications

specifications

We can make and design will kinds of EPS Sandwich Panel Machine according to customer's request,and has passed CE,ISO certificat

EPS Sandwich Panel Machine Feature:

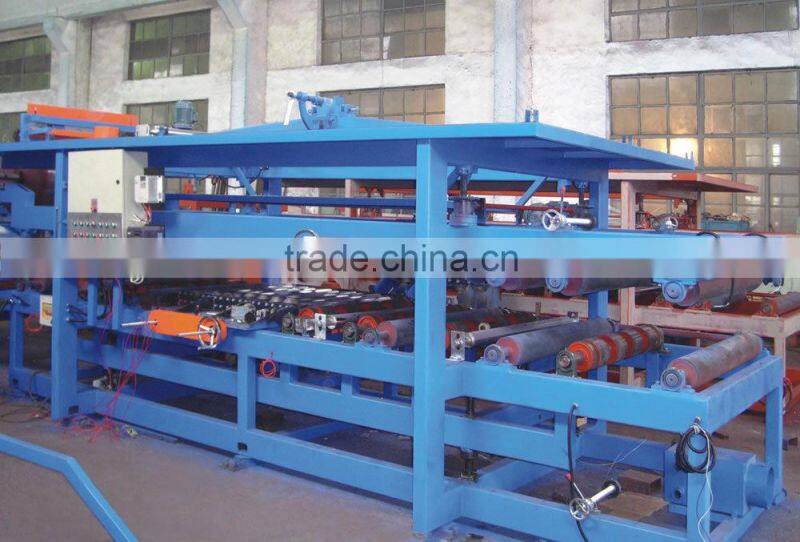

Introductionlaminator for corrugated sandwich panel mainly consists of a roll forming machine
and a sandwich panel laminating system. Through this line, corrugated sandwichpanels can be produced directly, without the shortcoming that traditional corrugatedsandwich panels have to be laminated manually after the forming of corrugatedsheet. Moreover, both the roll forming machine and the laminating system canwork independently. The roll forming machine of the line consists of feeding system,roll forming system and cutting system, while the laminating system is madeup of such equipments as uncoiler, feeding, squeezing, gelatinizing, heating, laminating,edge rolling, edge turn-over, groove-making, edge pruning, pneumaticdevice, automatic cutting and PLC. The whole machine possesses advanced workingcrafts, merging mechanical and electrical equipments into an organic whole. Annualproduction of this line (eight ours a day) is about 600,000 square meters.

Features:

1. Beautiful appearance, low noise, high efficiency.

2. Multiple function: In addition to corrugated sandwich panels, this line can be used to produce simple corrugated sheets, and different model sandwich panels.

3. The transmission of the laminating system is achieved by worm and worm gear which make the laminating speed smooth and steady.

4. The line employs advanced PLC and sets the length and cuts the panel automatically.
5. The main body is welded with type "H"section steel as its material. The surface
is treated by rotoblast
.6. Rollers of the laminating system are covered with rubber, which is advantageous
to the protection of the surface color of galvanized sheets and makes the equipment
laminate steadily.
Main technical specification:

1. Size: 42000mm ¡Á 3600mm ¡Á 3300mm (Length ¡Á Width ¡Á Height)

2. Total weight: about 25000kg

3. Controlling system: PLC

4. Total power (including heating): about 40kw

5. Working speed: 1000~4000mm/min

6. Suitable working temperature: about 25'C

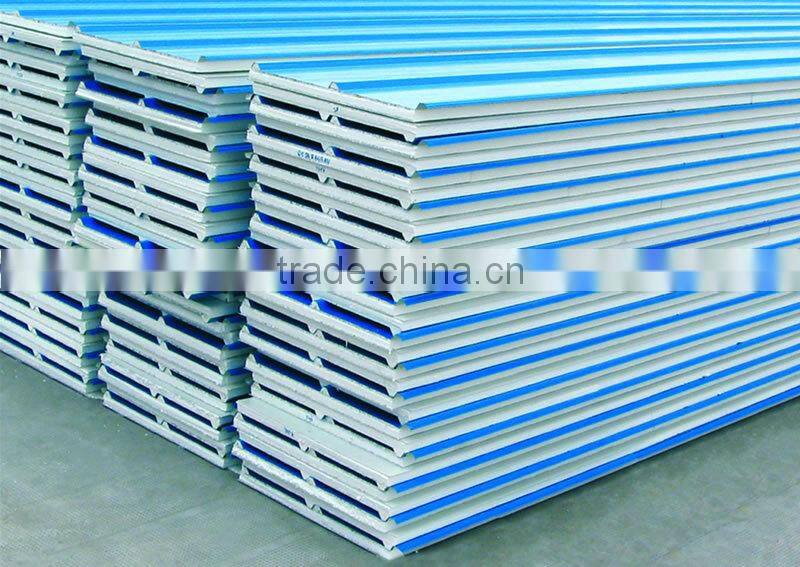

7. Density of EPS: >18kg/m3Suitable material for productionSuitable material of out layer: colored galvanized steel sheetSize: 1000mm (1200mm) ¡Á (0.5~0.6)mm ¡Á mmRecommended internal material: polystyrene (EPS)product usageThe products of this line are widely used as the roof and wall of factory, warehouse,garage, exhibition center, cinema, theatre, gymnasium, civil construction,stadium, cold storage, etc.
