Specifications
200kW - 450kW Deutz diesel genset1) Deutz engine
2)Engga generator
3)Good quality and reasonable price
Xiamen Huadong Machine Equipment Co.,Ltd
200kW - 450kW Deutz diesel genset Features:
Compact,heavy duty steel skid base to sllow safe and easy handling by forklift
Steel base frame serves as fuel tank
Easy start up and trouble free maintenance
Fully engineered with wide range of options and accessories
Every generator set is subject to a comprehensive test program to include full load testing and safety shut down function testing.
Engine:
Brand:DEUTZ
Starting Method:Self-start
Cooling Method:Fan-cooled
No. of cylinder:3/4/6/8/12/16
Cylinder Arrangement:In line
Injection Method:Direct injection
Aspiration Method:Natural Asp./Turbocharged./Tobercharged air intercooler./Turbocharged water cooled
Governor Method:Machanical or Electronic speed governor
Alternator
Brand:Stamford.Leroy Somer,Marathon and Engga avaliable
Excitation Method:Brushless,single bearing system,flexible disc,4 poles
Insulation Class:H
Protection Class:IP21-23
Voltage Control Modle:Automatic Voltage Regulator
Cooling Method:Self-fan-cooling
Load from 0-100%,frequency vibration ratio within 0.25%
No load wire volts max undeulation ratio within 5%
Generator Controller:
Brand:Deep sea or Disaier avaliable
Standard Manual Remote Start Controller
Effective system Integration
Digital Display Engine Parameters
True Voltage and current RMS measurement
3 phase power measurement
Simple Monitoring
Graphic LCD display in English and Chinese
User friendly remote supervising and servicing
Auto Mains Failure Controller avalible upon request
Multi-set load shsre systems for complex paralleling application avalible upon request
Chassis:
The complete generator set is mounted as whole on a heavy duty fabricating steel base frame
The generating set can be lifted or carefully pushed /pulled by the base frame
Fuel tank can be sperated from base frame if customer required
Anti Vibration Mount are fixed between the engine ,alternator base and the base frame
Dial type fuel gauge and drain plug on the fuel tank

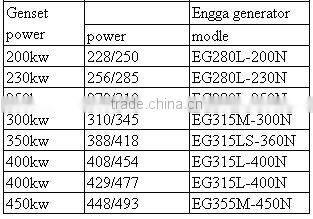

The following is the parameter of Deutz genset:
Automatic Transfer Switch:
Control system:DSE5100
Control system:DSE5110
Control system:DSE5500G
