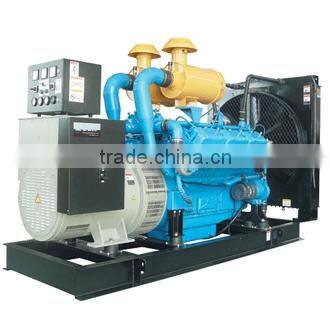

Shangchai Generator Prices Pakistan List Sale With Stamford Alternator

Shangchai Generator Prices Pakistan List Sale With Stamford Alternator thumbnail-1
Shangchai Generator Prices Pakistan List Sale With Stamford Alternator photo-1
US$ 2,000 - 200,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Shangchai
Model Number:
12V135BZLD1
Contact Supplier Request Quote Chat Now
Xiamen Huadong Machine Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Shangchai
Model Number 12V135BZLD1
Output Type AC Three Phase
Speed 1500rpm
Frequency 50
Rated Power 625kva
Rated Voltage 220v/380v 240v/415v
Rated Current 900A

Specifications

Generator prices pakistan
Shangchai engine sale
Low noise, good quality
Used widely in plateau
Water cooled

Shangchai generator prices pakistan list sale with stamford alternator



Genset technical parameter
Power factor: 0.8
Governor way: Mechanical
Insulation: H
Protection: IP23
Fuel: 0 light diesel
Intake way: Normally Aspirated
Rated output Voltage: 380/440V(optional)
Rated Frequency(Hz): 50/60(optional)
Rated speed: 1500r/m
Voltage Control: AVR Soundproof Canopy(the color of the canopy can be changed)
Norminal ambient condition of genset: Sea level elevation of 1500m,
Ambient temperature of 40 Celsius degree



Technical parameters of Alternator:
Brand: Stamford/Marathon/Leroy Somer(Optional)
Frequency fluctuation: ≤ ± 0.5%
Frequency regulation: ≤ ± 0.5%(stable)
Voltage Setting Range: ≥ ± 5%
Temperature Rise: H
Class of Insulation: H
Grade of Protection: IP22
Efficiency: 93.60%
Electromagnetism Interference Factor: THF<2%, TIF<50
Steady Voltage Regulation Factor: ≤ ± 1.0%



Technical parameters of Control Panel:
Brand: Smartgen/Upwin/Deepsea(Optional)
Start or stop generator set
Manually/AutomaticallyGenerator over/under frequency protection
Open controller output can be defined as Pre-heat/Idle outputGenerator over/under/unbalance voltage protectionHigh coolant temperature protection
Over speed protection
Low oil pressure protection
Over current protectionOver load protection
Available for remote control
Note: Indicate this function depeed on the set points of the controller in field.



Shangchai generator prices pakistan list sale with stamford alternator



Shangchai generator prices pakistan list sale with stamford alternator





The data of other shangchai generator set below:

Genset Model Prime power Standby power Engine model Fuel consumption Cylinder number Displacement Bore x Stroke Weight Size Current
DSS63 50 63 55 69 4135D-1 231.2 4L 8 135×140 1380 2300×800×1350 90
DSS80 64 80 70 88 4135AD 231.2 4L 8.6 135×150 1520 2250×800×1350 115.2
DSS94 75 94 83 104 4135AZD1 220 4L 8.6 135×150 1660 2350×800×1450 148
DSS94 75 94 83 104 6135D-3 229 6L 12 135×140 1860 2600×900×1400 148
DSS113 90 113 99 124 4135AZD 220 4L 8.6 135×150 1660 2370×800×1450 162
DSS125 100 125 110 138 4135AZD-2 220 4L 8.6 135×150 1660 2310×800×1450 180
DSS125 100 125 110 138 6135AD 231.2 6L 12.9 135×150 1900 2680×900×1400 180
DSS150 120 150 132 165 6135JZD 225.8 6L 12.9 135×140 2120 2670×1020×1690 216
DSS188 150 188 165 206 6135AZD-1 225.8 6L 12.9 135×150 2340 2670×1020×1690 270
DSS188 150 188 165 206 12V135D 231 12V 24 135×140 3000 3200×1350×1900 297
DSS225 180 225 198 248 G128ZLD 225 6L 12.9 135×150 2340 2860×1100×1600 324
DSS250 200 250 220 275 G128ZLD2 225 6L 12.9 135×150 2390 2860×1100×1600 360
DSS250 200 250 220 275 12V135AD 231 12V 25.8 135×150 3160 3250×1350×1900 397
DSS275 220 275 242 303 G128ZLD1 225 6L 12.9 135×150 2440 2860×1100×1600 396
DSS313 250 313 275 344 G128ZLD11 225 6L 12.9 135×150 2560 2860×1100×1600 450
DSS375 300 375 330 413 12V135AZD 220 12V 24 135×150 3460 3400×1350×1900 540
DSS400 320 400 352 440 12V135AZLD 210 12V 25.8 135×150 3980 3400×1350×1900 576



Our advantage:

1. Best price with good-after-sale-service

2. Professional engineer

3. Quickly- respond

4. Skilled genset

5. Professional team
