Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Loader > Lonking 6t Wheel Loader CDM860, Reinforced Loader

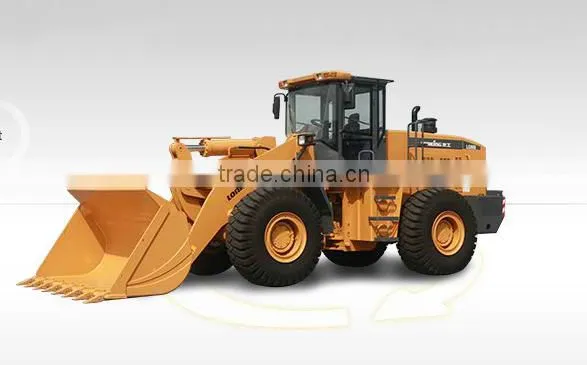

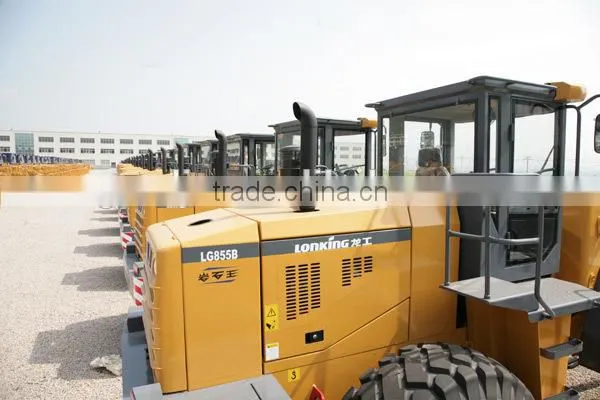

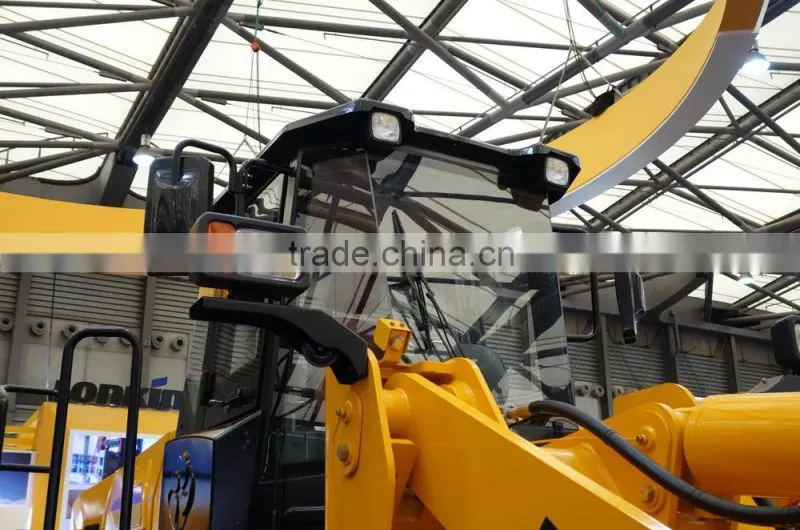

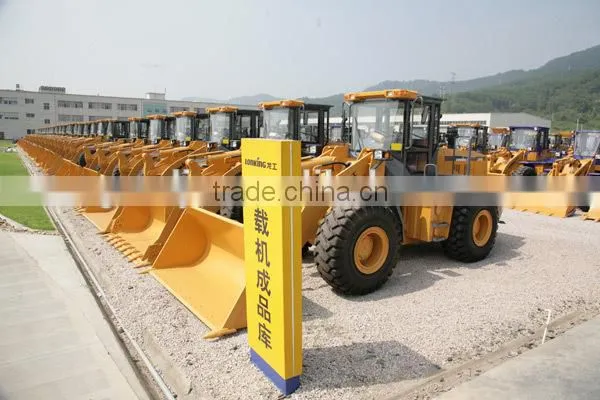

Lonking 6t Wheel Loader CDM860, Reinforced Loader

Name: Lonking 6t Wheel Loader CDM860, Reinforced Loader
Brand: Lonking
SKU: 114520975
Availability: InStock

Lonking 6t Wheel Loader CDM860, Reinforced Loader thumbnail-1

Lonking 6t Wheel Loader CDM860, Reinforced Loader photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Brand Name:

Lonking

Model Number:

CDM860

Contact Supplier Request Quote Chat Now

Guangzhou Zhongda Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

GUANGZHOU

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Brand Name Lonking

Model Number CDM860

Place of Origin China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 8610*3050*3430

Rated Load 6T

Certification CE

After-sales Service Provided No overseas service provided

Construction Machinery CDM860 features:

Powerful WEICHAI Engine
ZF Transmission
Lonking Axles
Standard Pilot Control

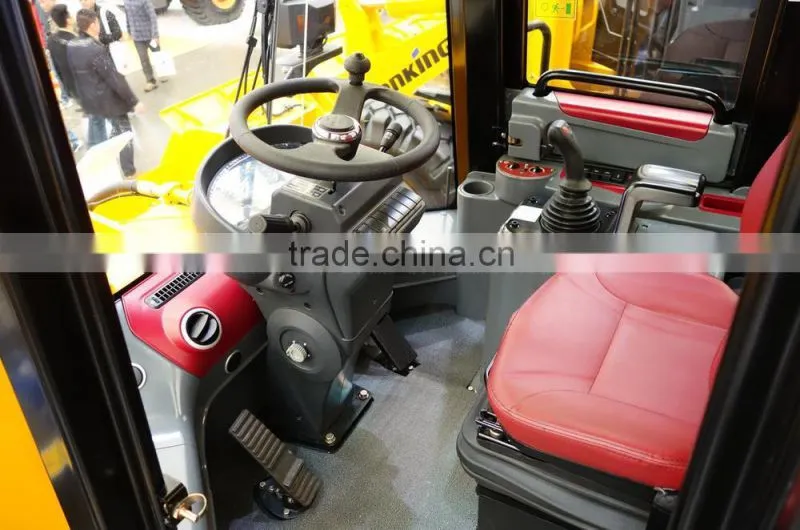

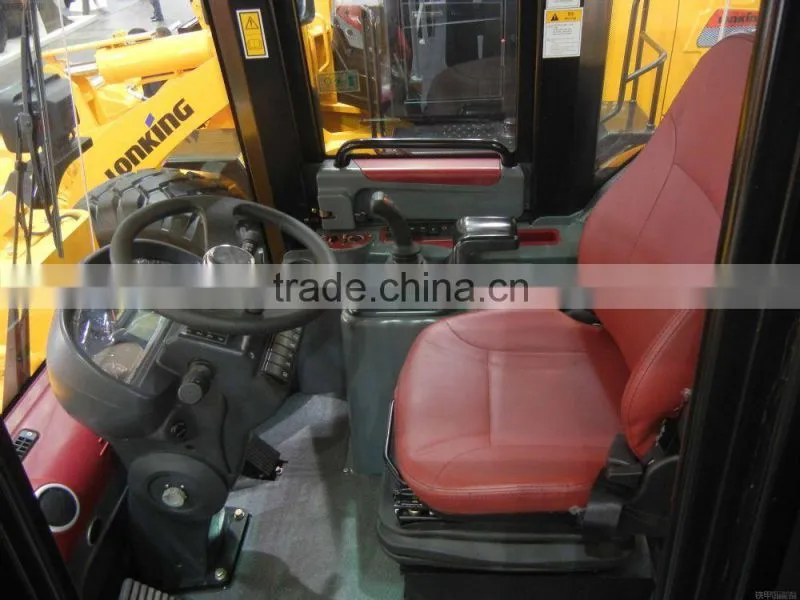

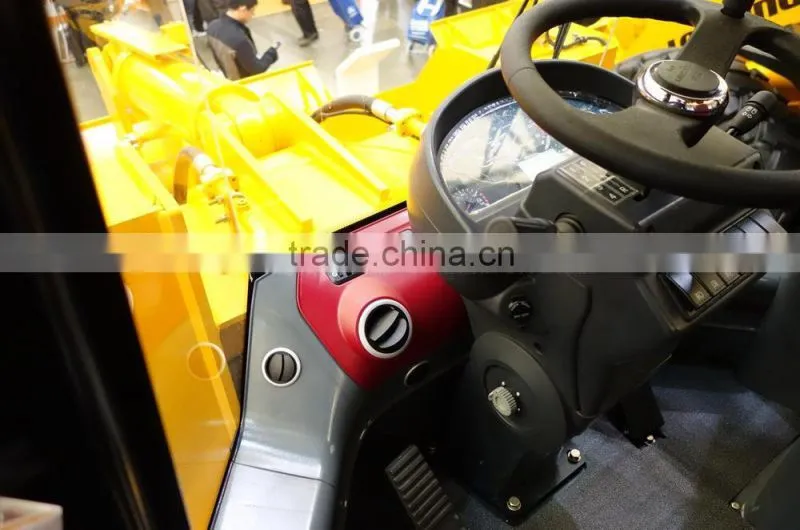

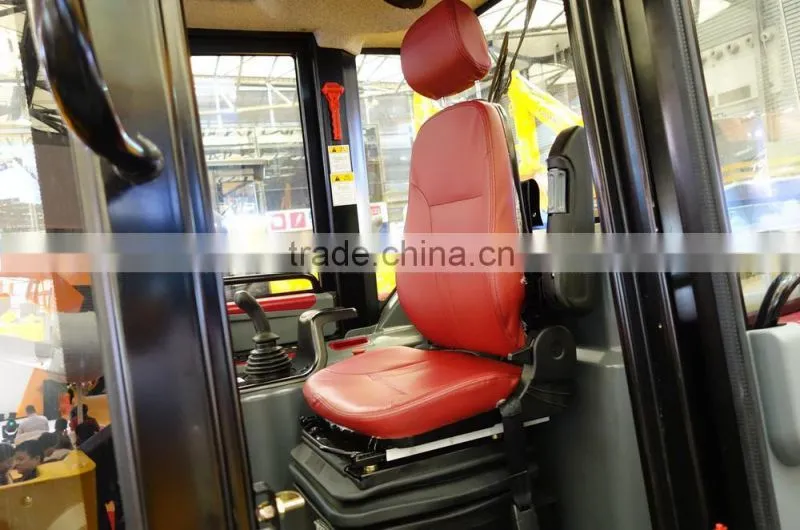

Standard AC Cabin

Variety with Attachment
Convenient Maintenance

Adopt Weichai “landking the second generation” engine, which is of strong power, low oil consumption, noise and failure rate.
Electro-hydraulic ZF transmission and Lonking dry-brake axles.
KD key:When load is high,The Operator only need to press KD key to shift from second gear to first gear,Which raise the efficiency and shorten the working time.
Full hydraulic power steering system with flow load-sensing,Single joystick controlling single pump shunt working hydraulic system,Together with boom lifting limitation & bucket auto-balancing function.
Firmer and more durable frame structure.

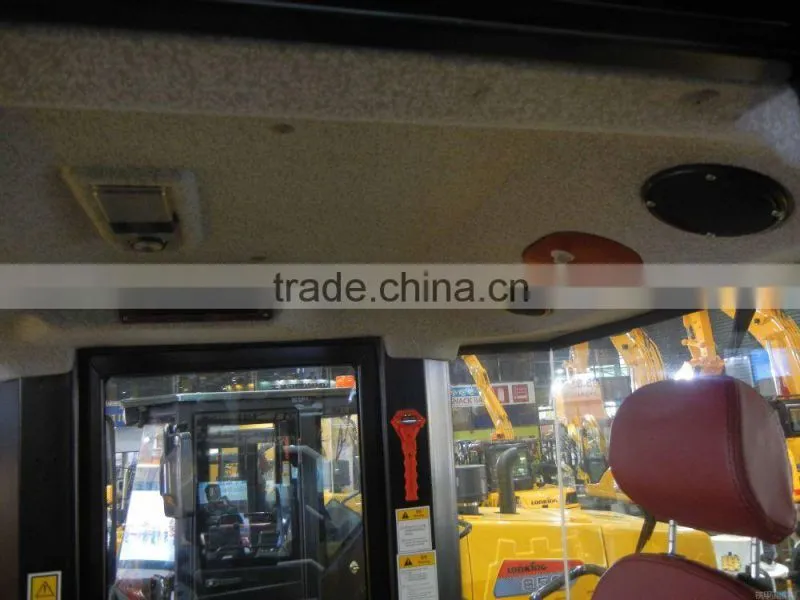

Efficient and healthy air conditioner.

Overall Data					Steering System
Bucket Capacity (m³)		3.5			Type Hydraulic Load Sensing System
Rated Payload(kg)		6000			Cylinders-bore×Stroke(mm)			2-100×324
Operating Weight(kg)		20850±300			Steering Pump			Gear Pump
Traction Force(kN)		175±3			System Pressure(MPa)			16
Breakout Force(kN)		200±3			Flow Rate(L/min/rpm)			176/2200
L×W×H(mm)		8610×3050×3430			Steering Angle			±35°
Travel Speeds (km/h):					Hydraulic System
	Ⅰ	Ⅱ	Ⅲ	IV	Lift Cylinders-bore×Stroke(mm)			2-180×864
Forward	6.7	11.7	23.8	37.5	Tilt Cylinder-bore×Stroke(mm)			1-200×626
Reverse	6.7	11.7	23.8		Model of Implement Pump			Gear Pump
Engine		WEICHAI WD10G240E21			Flow Rate(L/min/rpm)			275/2200
Rated Power(kW·hp/rpm)		175·(240)/2200			System Pressure(MPa)			16
Peak Torque(Nm/rpm)		949/1500			Pilot Control System Pressure(MPa)			2.5
Starting Voltage(V)		24			Hydraulic cycle time, Rated load in bucket(In second):
Drive Train					Raise(Loaded)	Dump	Lower(Empty)		Total
Torque Converter		Single-stage, Single-turbine, 3-element			6.3	1.2	4.3		11.8
Torque Ratio		2.56			Electrical System
Transmission		Countershaft Powershift Transmission			System Voltage(V)			24
Gear		4F/3R			Battery (2 in series)(Ah)			120
Pressure of Transmission(MPa)		1.6~1.8			Lamp Voltage(V)			24
Main Reducer		Spiral Bevel, 1-stage Reduction			Service Refill Capacity
Final Reducer		Planetary Reduction			Fuel Tank(L)			285
Tire		23.5-25 L-3 20PR TT			Hydraulic Tank(L)			270
Brake System					Crankshaft(L)			20
Service Brake		Single-Circuit Air Drive Brake			Transmission(L)			52
Setting Pressure (MPa)		0.78			Front Axle(L) /Rear Axle(L)			31/31
Parking Brake		Hydraulic Actuated Drum Brake			Air Conditioning System
Emergency Brake		Hydraulic Actuated Drum Brake			Heating Capacity(W)			5800 (±10%)
					Cooling Capacity(W)			4500 (±10%)

Standard	Optional
WEICHAI Engine ZF Transmission LONKING Axle Standard Bucket-3.5m³ Pilot Control Detachable Cab Air Conditioner	Coal Bucket (M) -4.5/5.0m³ Rock Bucket (K)-3.5m³ Radial Tire TT/TL
