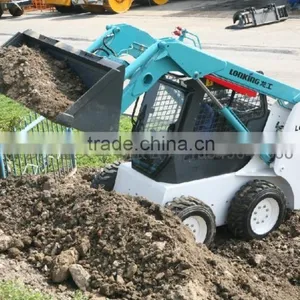

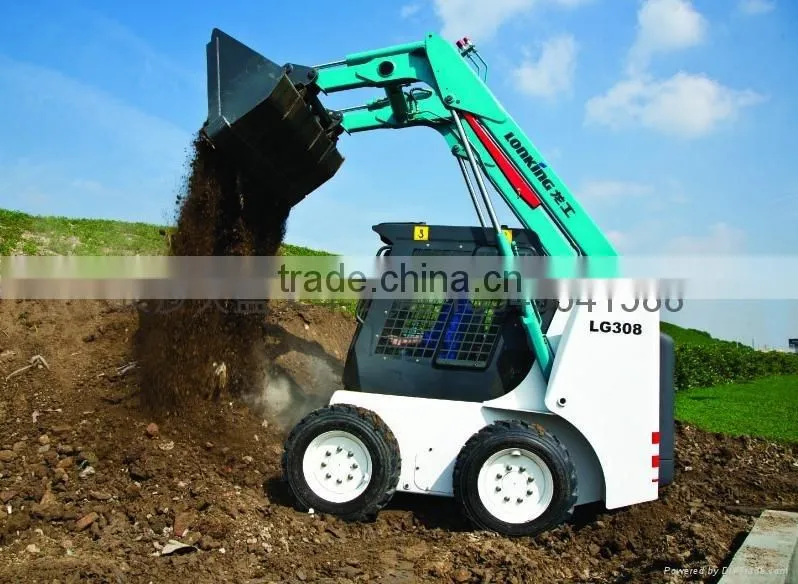

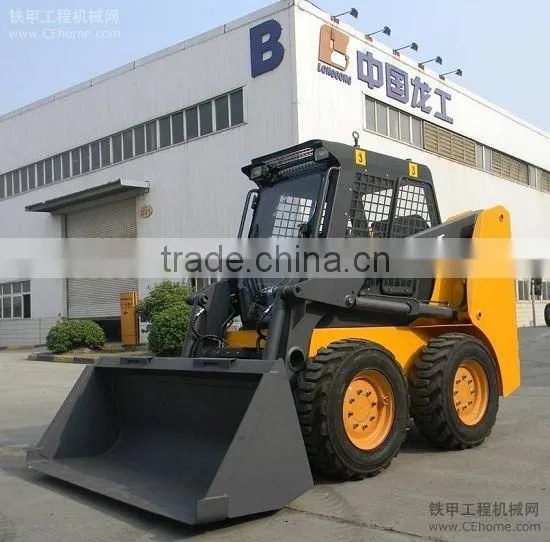

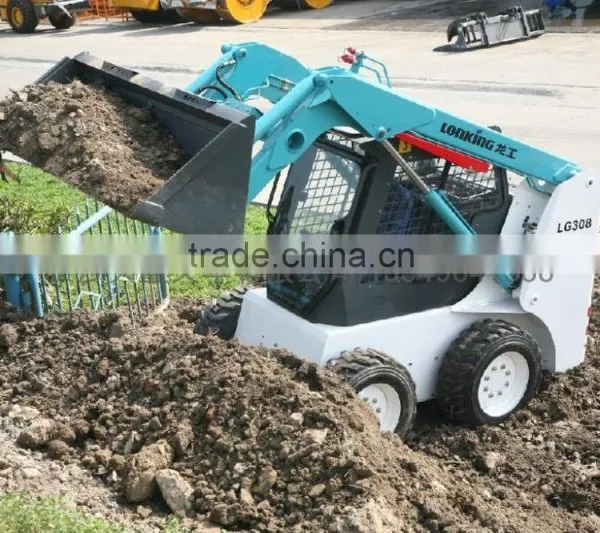

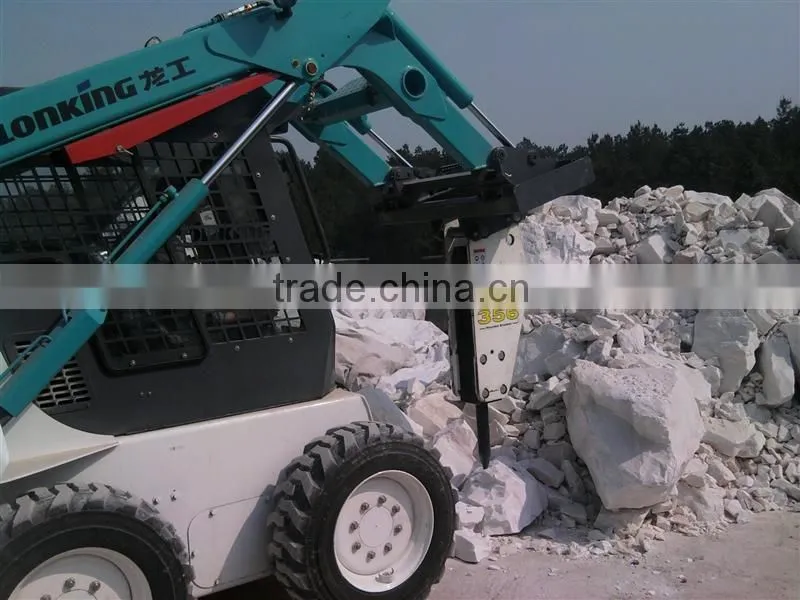

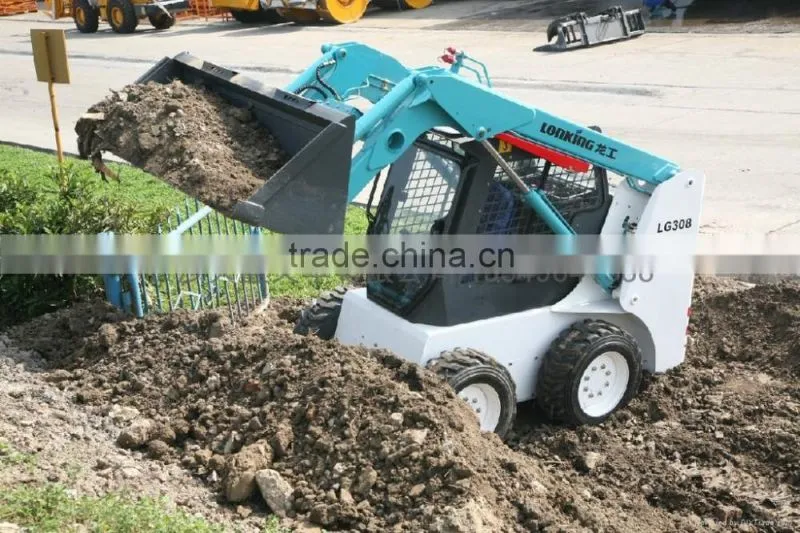

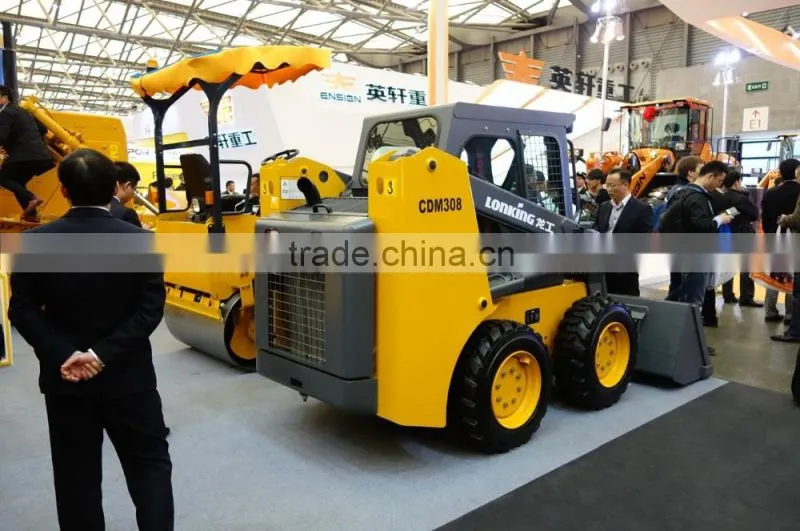

Hydraulic Skid Steer Loader 0.43m3

Name: Hydraulic Skid Steer Loader 0.43m3
Brand: Lonking
SKU: 114520871
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

Lonking

Model Number:

LG307

Guangzhou Zhongda Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name Lonking

Model Number LG307

Place of Origin Shanghai, China

Type Skid Steer Loader

Moving Type Wheel Loader

Rated Load 750KG

Certification CE Certificate

Warranty 1 Year

EU Stage IIIA Kubota Engine

Advanced Hydraulic System

Low Effort Mechanical Servo Controls

Comfortable Operator Station

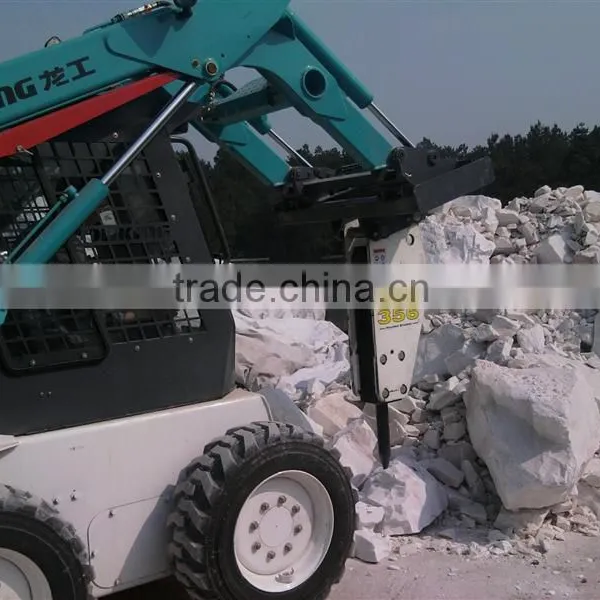

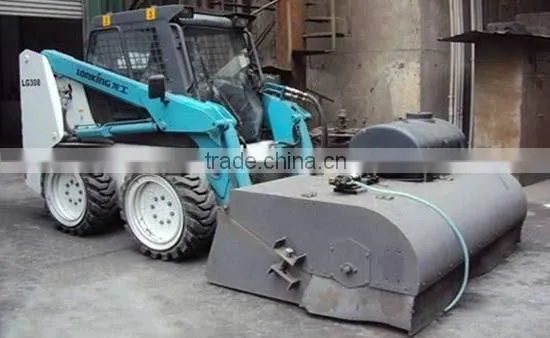

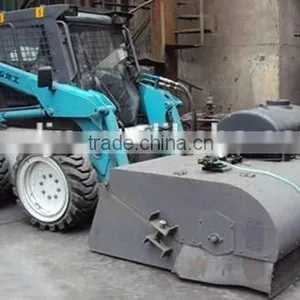

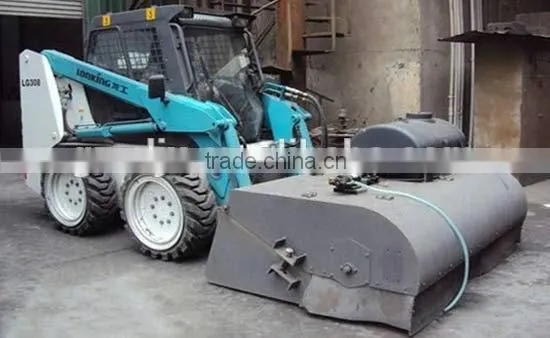

More Work Tools

LG307

Machine Model	Unit
Engine Model		Kubota Engine
Emission Standard		EuroⅢA
Rated Power	kW/rpm	36.8/2500
Operating Weight	kg	2800
Rated Payload	kg	760
Bucket Capacity	m³	0.43
L×W×H	mm	3230×1820×2000
Engine
Engine Model		XINCHAI A498BT1-75
Rated Power	kW/hprpm	36.8/502500
Displacement	L	3.168
Stroke	mm	98
Bore	mm	105
Weights
Operating Weight	kg	2800
Power Train
Travel Speed -F&R	km/h	11.5
Tire
Tyre		10×16.5
Hydraulic System
Hydraulic Flow – Standard	L/min/rpm	74
Loader Hydraulic Pressure	Mpa	21
Hydraulic Flow – High Flow	L/min/rpm	_
Loader Hydraulic Pressure	MPa	19
Operating Specifications
Rated Payload	kg	760
Tipping Load	kN	1520
Breakout Force	kN	18.9
Traction Force	kN	20.3
Service Refill Capacities
Chain Box, each side	L	9
Cooling System	L	12
Engine Crankcase	L	8
Fuel Tank	L	83
Hydraulic Tank	L	65
Dimensions
A Max.Operation Height	mm	3850
B Bucket Pin Height	mm	2920
C Cab Roof Height	mm	2020
D Max.Height at Bucket Leveled	mm	2730
E Length without Attachment	mm	2420
F Length with Standard Bucket	mm	3340
H Dumping Height	mm	2180
J Reach Rollback	mm	790
M Wheelbase	mm	1050
P Ground Clearance	mm	210
R Front Turning Radius without Attachment	mm	1200
S Front Turning Radius	mm	2060
T Rear Turning Radius	mm	1520
U Tail Length	mm	960
V Center Distance between Two Wheels	mm	1240
W Bucket Width	mm	1620
G Dumping Angle at Max.Height	mm	39°
K Bucket Angle on Ground	mm	28°
L Bucket Rollback Angle At Max.Height	mm	94°
Q Start Angle	mm	27°
