3tons Electric Forklift for Sale Price of Forklift

3tons Electric Forklift for Sale Price of Forklift thumbnail-1
3tons Electric Forklift for Sale Price of Forklift photo-1
US$ 1 - 2 MOQ: 1 Box
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
lonking
Contact Supplier Request Quote Chat Now
Guangzhou Zhongda Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name lonking
Model Number LG30B
Type Other, diesel fork lift
Power Souce AC Motor
Rated Loading Capacity 3ton
Max. Lifting Height 3500mm
Min. Lifting Height 30mm
Fork Length 1070mm
Fork Width 120mm
Overall Dimensions 3380*1265*2108mm
Certification CE

3tons electric forklift for sale price of forklift
  Safe, Powerful, Ergonomical!
Lonking offers you 3-wheel and 4-wheel electric forklift from 1.3T to 3.5T, with AC and DC motor optional, and adopting ZAPI & Curtis Control, powerful performance and ergonomical design. Chinese electric forklift

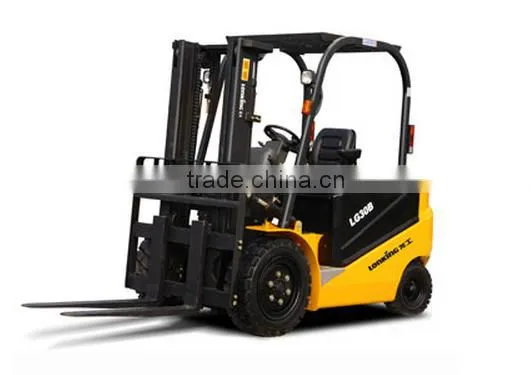

Logistics Equipment LG30B features:



Battery Counter-Balanced Forklift

•AC motor(alternating current motor) imported from USA(Brand:CURTIS),no need to worry about change the carbon brush if its continuous current motor

•The whole equipment adopt import electric control system(CURTIS),instruments and other important parts are  strictly inspected and examined,which make sure the whole machine’s stability

•Adopt advanced Turning speed automatic reduction system,no need to tread the break pedal by foot during truning

•Scientific structure,storage battery‘s location is low,which greatly lower the center of the whole machine,makes the forklift more stable

•Higher transporting efficiency,faster driving speed

•High efficient oil pump motor(sino-us),higher lifting speed,lower noise



Model LG30B
Power type Battery
Rated capacity (Kg) 3000
J Load centre (mm)                                     500
h1 STD Max.lifting height (mm) 3000
h3 Free lifting height (mm) 165
L5*W*T Fork size (mm) 1070×125×45
Mast tilt angle (deg) 6/12
L3 Front overhang (mm) 478
Overall dimension
L1 Overall length(with fork)(mm) 3608
W1 Overall width (mm) 1225
h2 Mast lowered height (mm) 2077
h4 Overhead guard height (mm) 2175
R1 Min.turning radius (mm) 2370
Min.intersecting aisle (mm) 3728
Speed(load/unload)
Max.traveling speed (km/h)(F/R) 13/15
Max.lifting speed (mm/s)(load/unload) 240/350
Max.gradient (load/unload)(%) 30/30
Dead weight (kg) 4920
S/P Tread(front/rear)(mm) 1000/980
L2 Axle distance (mm) 1700
Min.ground clearance
m2 Mast (mm) 132
Tire Front 23×9-15-12PR
Rear 18×7-8-14PR
Motor Travel(AC)(kW) 11
Lift(AC)(kW) 13.5
Battery(V/Ah) 80/500
Working pressure(Mpa) 16
Controller ZAPI
Cascade, Antwell and other Chinese brand attachments are applicable.


all kinds of fork lift,diesel/electric fork lift,from1ton to 16tons3tons electric forklift for sale price of forklift3tons electric forklift for sale price of forklift3tons electric forklift for sale price of forklift3tons electric forklift for sale price of forklift3tons electric forklift for sale price of forklift3tons electric forklift for sale price of forklift
