Main advantage
1.Give you the best price in china.
2.our product are passed international standard, ISO9001, SGS,CE certification.
3.The factory test for per machine.

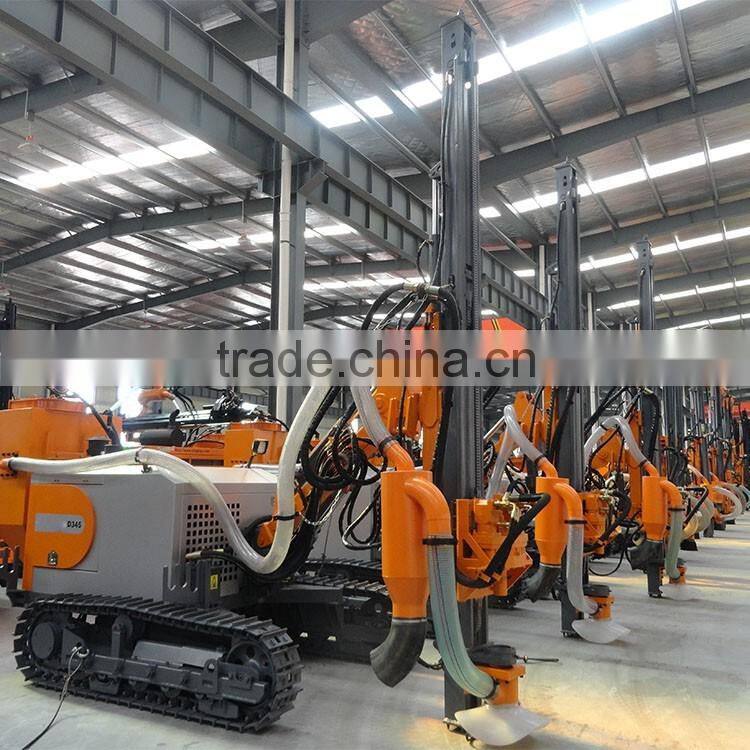

LGX-ZD345 Separate DTH Drilling Rig
Application
LGX-ZD345 hydraulic DTH rig is designed for blast hole drilling in mining or construction of road, railway and water power station. It is wisely equipped with diesel engine, excavator track and dust colleting devices that result an excellent performance to environment and cost saving.
Advantage(Features & benefit )
1.Standard equipment of Φ68mm x 3m drill pipes, dry type dust collector and reinforced traction motor.
2.Cycloid motor drives the rotation unit that reduces the size and decrease the failure rate comparing with former heavy steel ball motor. And the torque is improved that make the rig to be suitable in larger holes range.
3.The high performance wet air filter and dry filters compose patented 3stages filtering system to protect the diesel engine better.
4.New profile design brings convenient maintenance and better appearances to the rig.
5.Standard reinforced travel motor provides powerful climbing ability with proven quality.
6 .Lgx-ZD345 designed guiding wheel and hydraulic traction system reduce off track.
7.The series of the rig are labeled with anti-fake marks which can be inquired at any time.
Specifications
Work Pressure(Bar) |
7-20 |
F.A.D(m3/min) |
8-20 |
Hole Range(mm) |
90-130 |
Hammer (mm) |
90A |
Hole Depth (Max.)(m) |
30 |
Drill Pipe Length(mm) |
3000 |
Drill Pipe Dia(mm) |
68 |
Climbing Ability(Max.) |
30° |
Tramming Speed(Max.) |
2-3.2 |
Rotation Speed(Max.) |
0-80 |
Rotation Torque(N.m) |
1970 |
Weight(Kg) |
5290 |
Dimension(mm) |
5100×2260×2550 |
Power Pack |
YC4D80 |
Dust collector |
Option |
Enhanced Traction |
Standard |

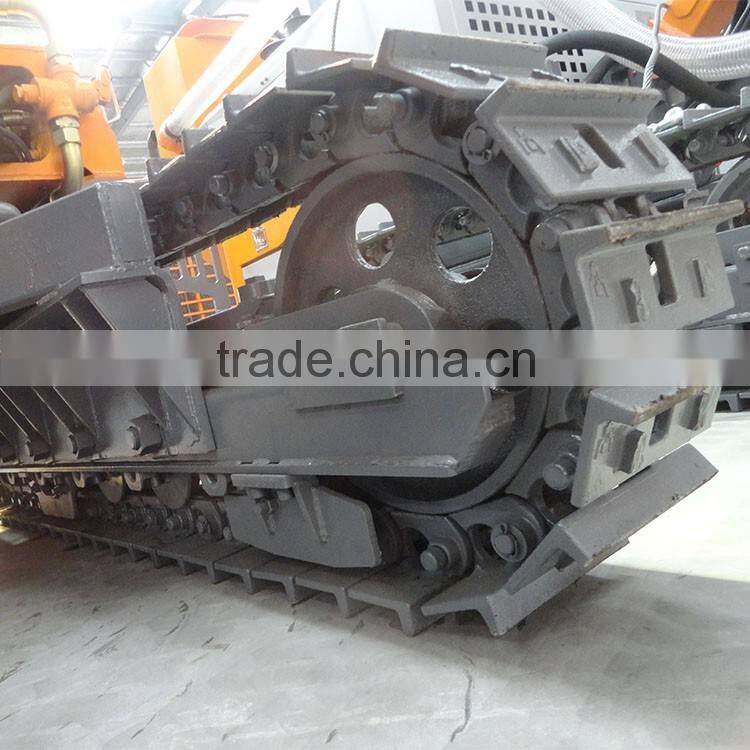

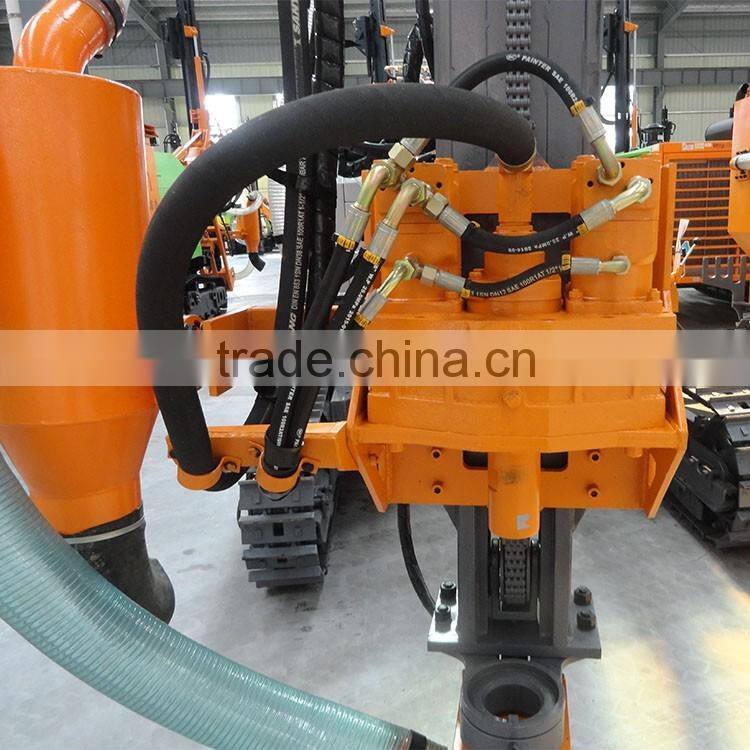

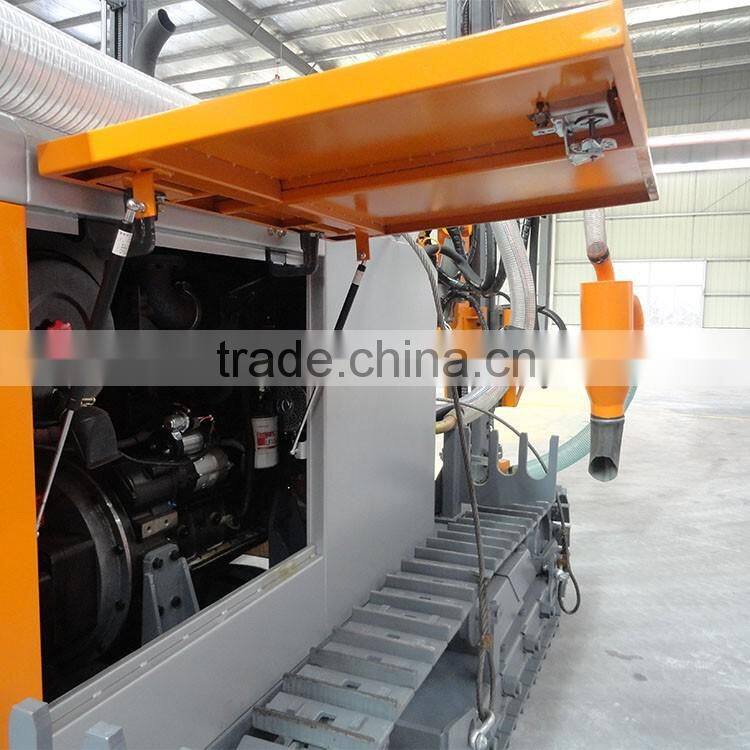

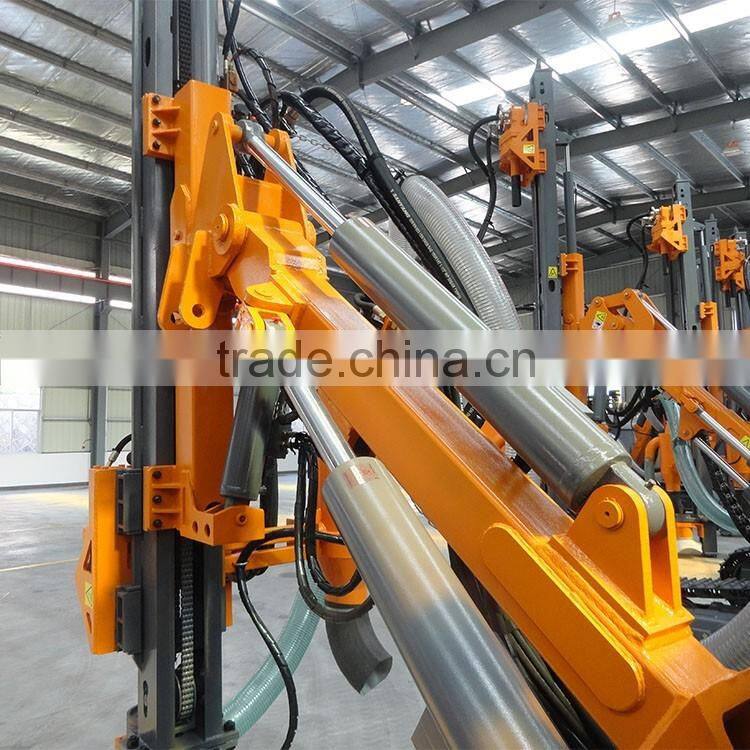

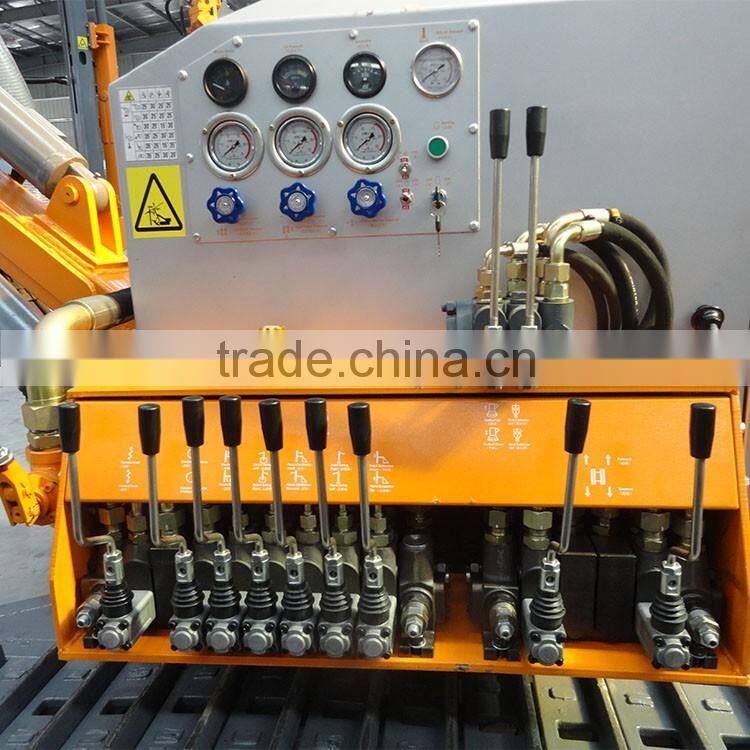

LGX-ZD345 Part Display
Air compressor
1. High altitude : 250SCY-17
2. Normal altitude: 177SCY-17, 191 SCY-17
3. Medium pressure : 178SCY-14.5, 138SCY-14.5, 139SCY-14.5, 190SCY-16
4. High pressure : 177SCY-17, 250SCY-19, 260SCY-21
5. Portable electric medium air pressure: 90SDY-14.5, 132SDY-13
6. Portable electric high pressure: 185SDY-17, 200SDY-21
Note:Air compressors selection is subjected to holes diameter and connecting air hose length.
