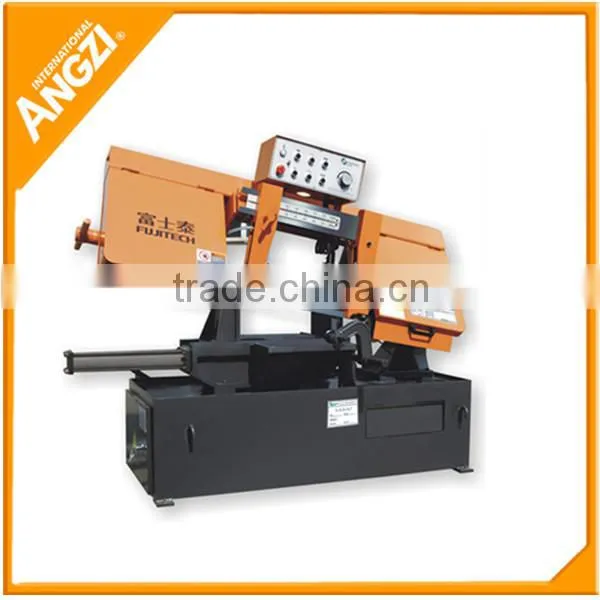

Help CenterRoller Bearing Carbide Blade Guide Steel Bar Cutting Machine
Related Products
-
Fujitech FS4038 Chinese Goods Online Horizontal Band Saw Cutting MachineUS$ 1,500 - 15,000MOQ: 1 Set -
Fujitech FS4230GNC High Margin Products Cnc Steel Bar Cutting MachineUS$ 1,500 - 30,000MOQ: 1 Set
-
FUJITECH FS4303ANC High Quality Manual Aluminium Profile Cutting MachineUS$ 3,268 - 3,837MOQ: 1 Set
-
FUJITECH FS4830HP Multi Driven Ultra Width Type Metal Band SawUS$ 3,799 - 4,499MOQ: 1 Set
-
FUJITECH FS4280 Stable Decerease Dead Weight Saw Cutting MachineUS$ 799 - 1,499MOQ: 1 Set
The Excellent Quality of steel bar cutting machine:
The Specification of steel bar cutting machine:
|
Item Model |
FS4028 |
FS4038 |
||
Capacity(MM) |
Round |
280 |
380 |
|
Square |
W300*H200 |
W450*H300 |
||
|
Blade Speed (M/MIN) |
20, 35, 50, 65, (80) |
20, 35, 50, 65, 80 |
||
Blade Size (MM) |
L3505*W27*T0.9 |
L4230*W34*T1.1 |
||
Blade Tension |
Handle Tension/Release |
|||
|
Motor |
Blade Drive(KW) |
2.2 |
2.2-6P |
|
Hyd.pump(KW) |
0.38 |
0.75 |
||
Coolant Pump(KW) |
0.04 |
0.04 |
||
Oil Scupper Volume |
Hyd fluid(L) |
20 |
25 |
|
Cooland Pump(L) |
40 |
50 |
||
Weight( KG) |
760 |
1200 |
||
Floor Space(MM) |
L1880*w800*H1420 |
L2230*W1000*H1570 |
||
The Product features of steel bar cutting machine:
1,Main Technical Parameters:
1.1 Capacity:Round Φ380mm
Spare 400×300(W×H)
1.2 Blade Speed:20 35 50 65 80
1.3 Blade size:
length is according to the sewing machine; The width is 27mm;The thickness should be less then 1mm.
1.4 Motor:Total power is about2.7KW.
1.5 Install conveniently and perform stably.
2,Function:
2.1 Blade tension:Manual control
2.2 Blade speed adjustment:Belt gear shift
2.3 Chip cleaning:motive power driven steel brush cleaning device
2.4 Front feeding,four feet assistant rack
2.5 Electrical feeding(Optional),length 2.0M
3,Machine
3.1 Weight:about 780kg
3.2 Floor space(L×W×H):1880×800×1420
3 Safeguard device according to National safety standard. Noise <85dB(A).
4,Environment condition:
4.1 Power supply:380±10%,50Hz±0.5;
4.2 Temperature:0~40℃
Function and Characteristics
1,Applying hydraulic clamping structure, the workpiece can feed from back or front.
2,Moving the workpiece and positioning by Manual control.
3,Specific Double current valve Oil pressure system,Cutting down speed is controlled by Speed Adjusting Valve. This system can avoid the blade running abnormally
broken, and achieve best cutting effect.
4,Integration design of Worktable and Hinge hole, makes up stable cutting structure.
5,Constant temperature system for whole oil-way makes cutting more stable.
6,Safety device:
A. The machine cannot startup if the material hasn’t clamped the blade well;
B. No-load noise is less than 70dB(A).
Some parts of steel bar cutting machine:
For H-Beam:
Our Factory for steel cutting machine:
ANGZI manufactures heavyduty, high performance horizontal band sawing machines large horizontal band saws, horizontal miter band saws, CNC horizontal band saws, vertical plate saws, power hacksaws, sawing systems, manual, semi automaticmiter circular cold saws, automatic miter circular cold saws, CNC circular sawing centers, automatic carbide circular cold saws, automatic vertical circular cold saws, etc.
Our Team for steel cutting machine:
Packaging Details: Standard seaworthy packing or According Customer Requirement for steel bar cutting machine .
Delivery Time:7-10 days after the deposit of steel bar cutting machine.
Our service for steel bar cutting machine:
1.Timely delivery with short production period
2..We offer the professional after-sale team service
3.E-mail will be get back in 24 hours
4.We have professional knowledge to solve any question
5.We will provided door to door service if you need
