Mining Sump Slurry Pump/ Centrifugal Slurry Pump
US$ 700 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
DK
Model Number:
VS
Payment & Shipping
Payment Methods:
Port of Shipment:
Any ports
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Hebei, China
Brand Name
DK
Model Number
VS
Theory
Centrifugal Pump
Structure
Single-stage Pump
Usage
Other, slurry
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, diesel, electric
Pressure
High Pressure
Application
Other, mining, slurry, ash, sump.
Specifications
1.ISO9001,BV,CE,IONET and so on.2.Q:1~400 l/s
3.H:0~40m

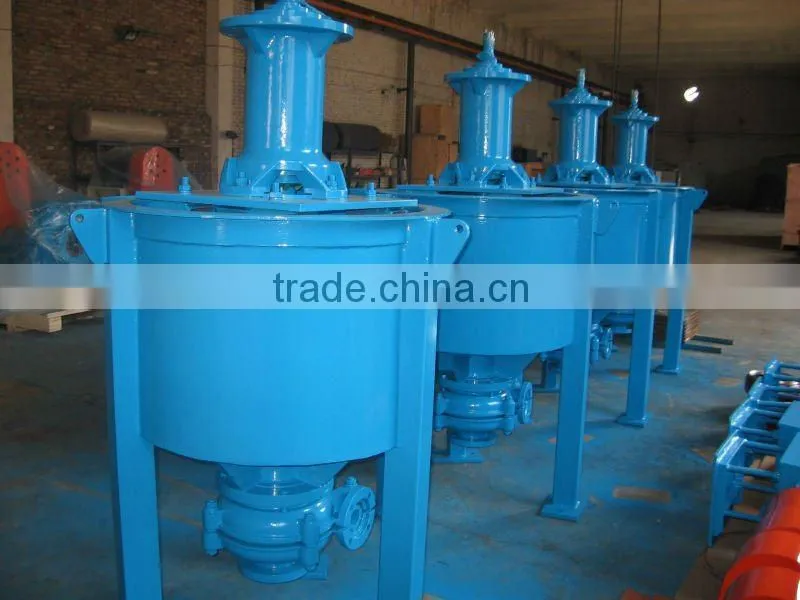

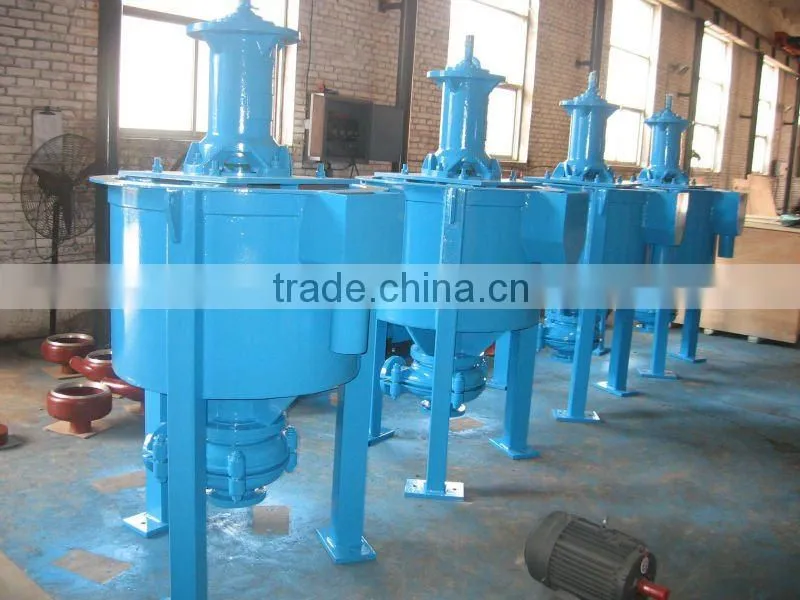

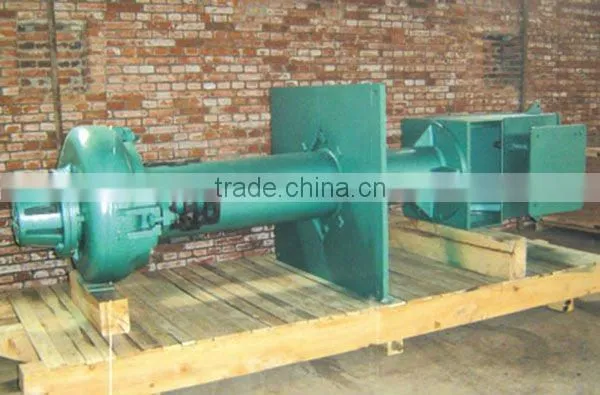

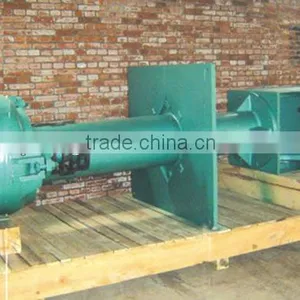

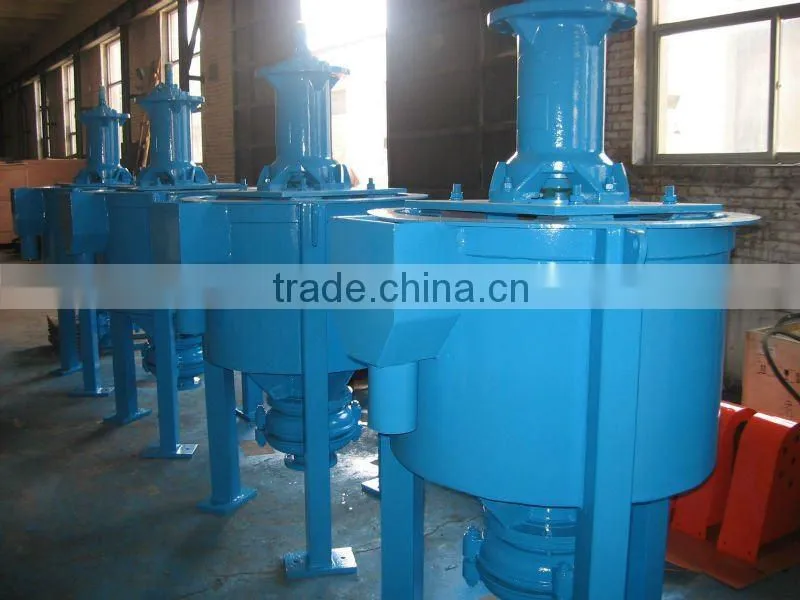

Mining Rubber Lined vertical slurry pumps
Type VS slurry pump is vertical , centrifugal slurry pump submerged in sump to work. These pump have no need of any shaft seal and sealing water.
The pumps are widely used in mining, construction, metallurgy, power plant, sewage water treatment, dredging, and chemical and petroleum industries.
VS, VSR centrifugal slurry pumps are mainly used to pump high-hardness, strong-corrosion and high-concentration liquids that contain suspended solid particles, such as finished ores, refuse ores, ashes, cinders, cements, mud, mineral stones and etc.
Size: 1.5-12 inches |
| Capacity: 17-1267 m3/h |
| Head: 4-40 m |
Material: Cr27, Cr28 and rubber liner material |

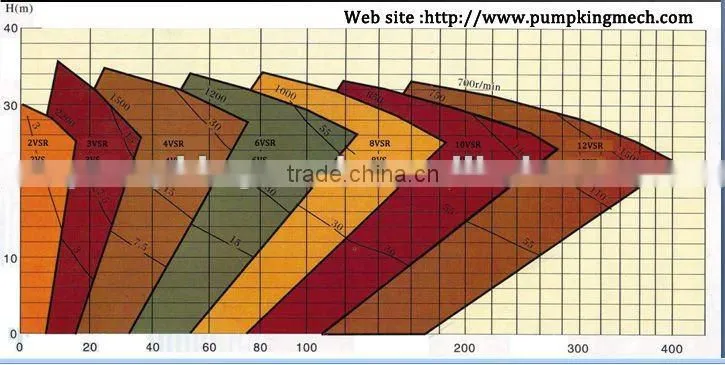

| Type | Max power | Material | Range of performance | Impeller | ||||||
| Liner | Impeller | Capacity(m3/h) | Head m | Speed rpm | Max.eff % | NPSH m | No. Blades | Impeller diametter mm | ||
| 2PV-VS | 15 | M | M | 19.44~43.2 | 4.5~28.5 | 1000~2200 | 40 | 5 | 188 | |
| 2PV-VSR | RU | RU | 17.28~39.6 | 4~26 | 1000~2200 | 40 | 5 | 188 | ||
| 3QV-VS | 30 | M | M | 23.4~111 | 5~29.5 | 700~1500 | 50 | 5 | 280 | |
| 3QV-VSR | RU | RU | 22.5~105 | 5.5~30.5 | 700~1500 | 51 | 5 | 280 | ||
| 4RV-VS | 75 | M | M | 54~289 | 5~35 | 500~1200 | 56 | 5 | 370 | |
| 4RV-VSR | RU | RU | 64.8~285 | 7.5~36 | 600~1200 | 62 | 5 | 370 | ||
| 6SV-VS | 110 | M | M | 108~479.16 | 8.5~40 | 500~1000 | 52 | 5 | 450 | |
| 8SV-VS | 110 | M | M | 189~891 | 6.5~37 | 400~850 | 64 | 5 | 520 | |
| 10TV-VS | 200 | M | M | 261~1089 | 7.5~33.5 | 400~750 | 60 | 5 | 575 | |
| 12TV-VS | 200 | M | M | 288~1267 | 6.5~33 | 350~700 | 50 | 5 | 610 | |
