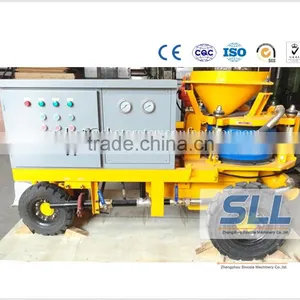

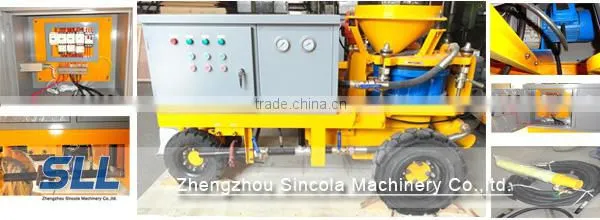

//.SPZ3000 Wet And Dry mix shotcrete machine
-
Moder SPZ3000 Output 5 m³/h nvey dist. 35 m Max.aggregate size φ15 mm Concrete slump 8-15 cm Hose inner size φ50/65 mm Operating air pressure 0.2-0.6 MPa Air consumption 9-10 m³/min Discharge height 1.17 m Rotor Rev. 11 r/min Main electric motor power 7.5 kW Dosing pupmp model BRJ15 Dosing pump rated pressure 0.6 MPa Dosing pump output 17.5-88 L/h Overall dimension 2050×950×1180 mm weight 1200 kg
-
//.SPZ3000A Air mortar type shotcrete machine Main Technical Data
Output Capacity 9 m³/h Max. Horizontal Conveying Distance 150 Suitable Mix Ratio(Cement/Sand) ≤1:3~5 Max. Aggregate Size Φ20 mm Conveying Hose Inner Diameter Φ64 mm Conveying Pressure 0.2-0.4MPa Air Consumption for conveying material 9-10 m³/min Air Motor Air Pressure 0.5MPa Material Charging Height 1.2m Rotor Speed 10rpm Air Motor Type TMH8A Air Motor Air Consumption 9.5 m³/min Overall Dimension(length×width×height) 15000×830×1320 mm Net Weight 900kg
Injection Mould Manufacturer With "wet-process shotcrete" a low-slump concrete mix is pumped with a Concrete Pump to the end of the pipeline. conveys the pre-dampened mix by compressed air. the pre-concrete is mixed firstly . and then putted into shotcrete machine. This compressed air typically comes from a 165-185cfm air compressor - sold separately. The addition of the compressed air adds velocity to the concrete so it sprays out of the nozzle. This velocity, combined with the low slump of the shotcrete mix, allows the concrete to be sprayed on slopes, vertical walls, and overhead .
1. Shotcrete Swimming Pool Construction.
2. Soil Retention and Tetaining Walls.
3. Rockscaping.
4. Refractory Spraying.
5. Mine Support.
6. Tunnel Linings.
7. Concrete Repair.
8. Artificial Rocks and Caves.
9. Low-volume Refractory Spraying.
Features of Injection mould manufacturer
- Going-through rotor and forced vibrating hopper make mixture smoothly falling.
- Hose dosing pump unit provides constant dosing.
- Thin flow conveying method, used for wet-mix and dry-mix shotcrete.
- Reinforced wet shotcrete with steel or various polyment fibre. For the most specific risks of this machine, safety and compliance with the essential requirements of the Directive has been based on elements of EN ISO 12100-1:2003, EN ISO 12100-2:2003/A1:1995, EN 60204-1:2006 and EN 1050:1997

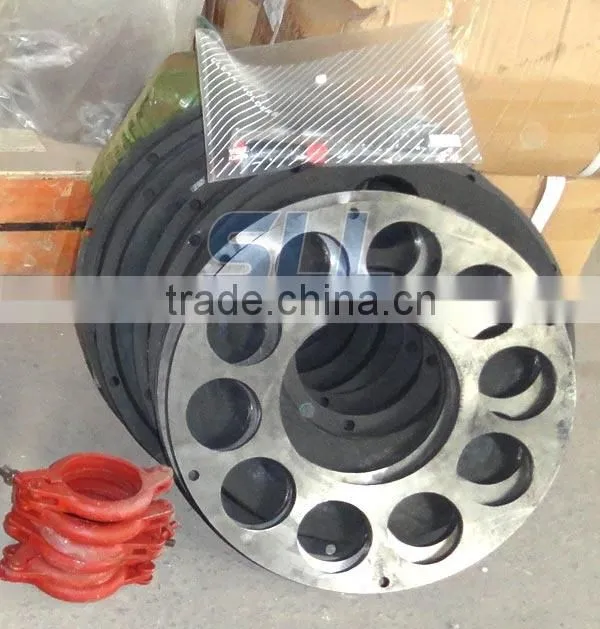

Spare Parts that we offer:
- Three Quick Coupling
- One Long Joint
- Four Joint Clamp
- One Conveying hose
- One Upper sealing plate
- One Lower sealing plate
- One Rubber Elbow
- One Taper sleeve
- Ten ubber Chamber
- One Nozzle and seat
- One Nozzle
FAQ:
1. How many people that need to operate this kind of machine?
Two persons, one loading the material and the other for the spraying.
2.MOQ:
1set can be acceptable for Trail Order.
Over 3sets can enjoy the wholesale price.
Welcome to join us as our sales agent in your market.
3. How long the life time the main engine?
more than three years, 1 year guarantee for quality problems.
4. Does this kind of machine can work singlely?
No, it need match one air compressor to cooperate.
5.Delivery time:
1 week for Standard Model(motor:380v 50hz 3phases)
15-25days for Cusmoized Model.
6.Payment:
TT, 30% deposit ,70% before shippment.
L/C at sight (high bank charge, not suggest , but acceptable).
100%TT in advance (specially for air shipment or small amount).
7.Available Shipment:
FOB Qingdao
FOB Shanghai
FOB Tianjin
Packaging & Delivery
Wooden case packing or according to customers’requirement
Within 7 working days after we received advanced payment
Zhengzhou Sincola Machinery Co.,Ltd is a stated- designated manufacturer and exporter of road and building construction machineries. We are one of the big manufacturer and supplier in China .
Our products are dry and wet Shotcrete machinery and Concrete Pump,Plaster Machine,Mortar Pump,Spraying Machine,Industrial Hose Pume,Grouting Pump,Automatic rendering machine. Also we are the manufactur,supplier and exporter of semi-automatic and full-automatic dry motar mixing plants.large and medium size of concrete mixing plants.
Our company engaged an international expert guidance, the study has been made a number of patents.Our technical experts from the United States, Germany, Italy and other multi-national team of experts.
Our products are well known to international market such as Russia, UzbekistanRussia,Uzbekistan,Cyprus,Algeria,Cameroon,Macedonia,Malaysia,Austrialia,Yemen,Oman etc.
Our products have widely been applying in construction, railway and super highway engineering, underground engineering, tunneling, mining operation,hydropower projects and slope stabilization.
...
