What is the Shotcrete Machine?
The following is SINCOLA--Shotcrete Machine from China.
Introduction Of Gunite Shotcrete Machine
- Efficient spray dry mix concrete;
- Widely employed in Construction ,such as mining,tunnel lining,channel lining,culvert,subway,seismic rehab,specialty projects,hydropower,engineering,etc.
- The dynamic system of Dry shotcrete machine have three types: Air Motor,Diesel Motor and Electric Motor.
The technical parameters of SPZ-3 Dry Gunite Machine:
Model: SPZ-3
Output (m3/h): 3
nv.dist: 200m
Water cement ratio: < 0.4
Max.Aggregate.size: 10mm
Hose inner size: φ42/50
Operating air pressure: 0.2-0.6 MPa
Air consumption: 5-6 m3/min
Motor power: 3 kW(4hp)
Dimension(LxHxW): 1130x1020x540mm
Weight: 520kg
Voltages: 220V/380V/400V/415V/440V/660V 50Hz/60Hz
Basic chassis: Tyre, Skid or Rail-wheel
Driving Type: Electric Motor
The Applications Of Dry Spraying Concrete Equipment
1. The Spraying Concrete Machine can be Used for dry mix concrete spraying operation.
2. Gunite machine, shotcrete for Civil Underground Foundation , Express-way Construction, Railway Construction;
3. We sale High Quality Shotcrete Machine ,and use it to shotcrete for building surface;
4. Shotcrete for Tunneling , Mining ,Hydropower Project;
5. We supply this Machine to Shotcrete for Slope Stabilization.
For example, build up the swimming pool,
Advantage of SINCOLA--Dry Mix Gunite Shotcrete Swimming Pool:
Our product SPZ-3 Shotcrete Equipment mainly includes drive device, rotor assy., air conveying system,spraying system and electric control casing etc.
- This spraying machine adopts non-adhesive, through-going rotor with lining plastic chamber in its each hole. With this special rotor, it can improve the capacity to handle wet mixture and reduce clearing and maintenance work.
- Rotor Disk: There are two rotor disks on the opposite sides of rotor, it is made of high-qualified alloy steel and can handle concrete more than 4000m3 during its working Period.
- Rubber Sealing Plate: There are two plates (upper and lower). Both of the upper and lower plates are made of anti-abrasive special rubber and can handle concrete 300-400m3 during its working period.
- Clamping Device: By this device, the force of gunite machine is acted through the screws and cylindrical springs, which works as elastic auto-clamping device. Tight clamping by the turnover frame floating can provide a constantly uniform pressure at the sealing surfaces with a high tightening effect and low dust emission, and can avoid rubber plate over-worn, too.

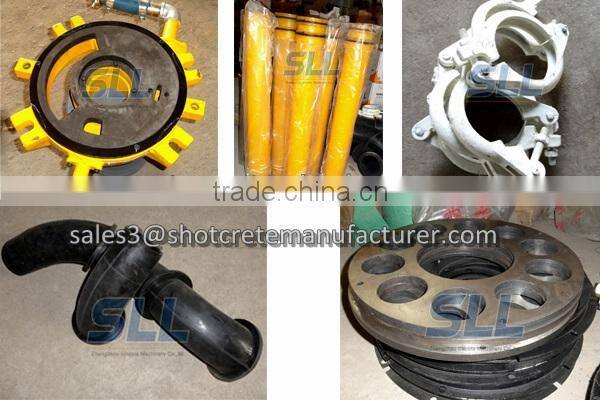

Matching Spare Parts
- Three Quick Coupling
- One Long Joint
- Four Joint Clamp
- One Conveying hose
- One Upper sealing plate
- One Lower sealing plate
- One Rubber Elbow
- One Taper sleeve
- Ten ubber Chamber
- One Nozzle and seat
- One Nozzle
1. The premixed materials are filled into vibrating hopper 1, and then passing through vibrating sieve to hopper 3. From there it flows into the through-going chambers of rotor 7 by the action of agitator 2 and moves to the discharge outlet with rotor running, where it is blown to Vortex Stream Implement 10 by compressed air leaded by air pipe 14. Here it is blown by scattering, accelerating, whirling, and floating vortex stream and through conveying hose to the nozzle, where a little adjustable amount water (for damp-mix shotcreting) is added.
Shotcrete Machine mainly includes drive device, rotor assy., air conveying system, spraying system and electric control casing etc.
FAQ:
1. How much is the output of SPZ-3 Shotcrete Machine?
Output: 3 m3/h, if you want a large output ,you can choose SPZ-5.or SPZ-9.
2. Is the voltage of the machine variable?
Acceptable if you need.
3. How much is Max.Aggregate.size ?
10mm,maybe lager,we suggest you purchase SPZ-5.or SPZ-9,they can.
4. Can be used to build a swimming pool, etc.?
Of course,It is suitable.
5. What is it used for ?
mining,tunnel lining,channel lining,culvert,subway,seismic rehab,specialty projects,hydropower, engineering, etc
6. How much is the lenght of delivery rubber hose?
It is 20m, If the length is not enough, a few rubber hose can be spliced together.
7. What is the difference between the wet spray machine and dry shotcrete equipment?
Wet Mix Shotcrete Machine sprays the wet concrete, While dry shotcrete equipment is dry concrete.
More question, please contact me by following ways in time.
If any questionof Gunite Shotcrete Swimming Pool , please contact me.
My Skype is sincolasale.
...
