Specifications
Popular Single Piston Mortar PumpWet Mixed Piston Mortar Pump
Mechanical transmission
lower failure
Switch by ball valve
Item |
RG50-40 |
Cylinder Dia |
φ90 mm |
Output |
50 L/min |
Pressure |
4 Mpa(40bar, 580psi) |
Piston stroke |
85 mm |
Piston Speed |
95 /min |
Inlet diameter |
75 mm |
Outlet diameter |
50 mm |
Max.Aggregate.size |
5 mm |
Cement : Sand |
≥1:3 |
Dimensions |
1610×1024×900 mm |
Weight |
300 kg |
Power unit |
5.5 kW(Electric)/10hp(Diesel) |
Note: Single or Double Passageway.Skid or Tyre | |

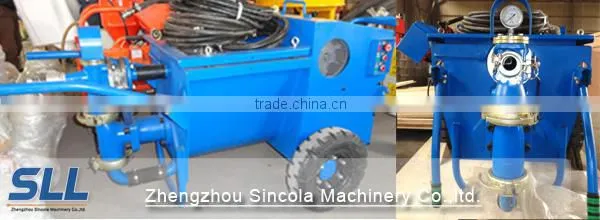

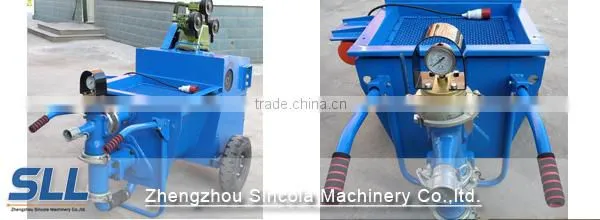

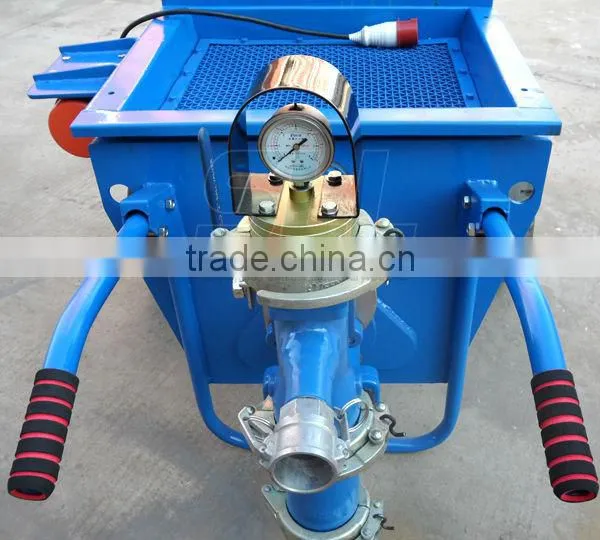

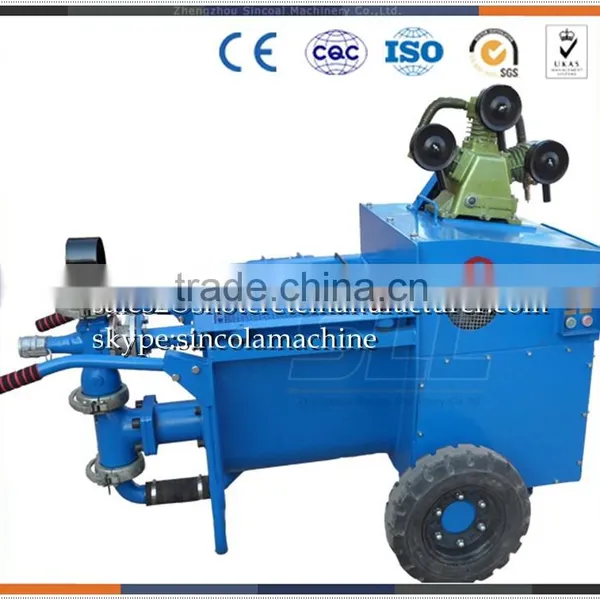

SG50-40 Single Piston Mortar Pump with single cylinder or piston and double acting is widely used for its convenient maintenance, high working pressure and high efficiency, working reliability, compact structure etc. it can be used not only for grouting cement mortar and sand mortar, combined with accessories such as compressor and spraying gun, it is also ideal equipment applied in spraying. It is widely used for grouting in mine gallery, rail and road tunnel, hydropower construction, slope consolidation, underground engineering, subway and civil engineering etc.
- Single piston mortar pump single acting
- Switch by ball valve
- Mechanical transmission, lower failure rate
- Integrate pump head and hopper; prevent eduction and deposition together with the paddle agitating
- Compact structure, convenient for maintaining
- High working pressure and working reliability
- Convenient maintenance
- High quality of singgle piston mortar pump
FAQ:
1. How many people that are need to operate this kind of machine?
Two persons, one loading the material and the other for the spraying.
2.MOQ:
1set can be acceptable for Trail Order.
Over 3sets can enjoy the wholesale price.
Welcome to join us as our sales agent in your market.
3. How long the life time the main engine?
more than than years, 1 year guarantee for quality problems.
4. Does this kind of machine can work singlely?
No, it need match one air compressor to cooperate.
5.Delivery time:
1 week for Standard Model(motor:380v 50hz 3phases)
15-25days for Cusmoized Model.
6.Payment:
TT, 30% deposit ,70% before shippment.
L/C at sight (high bank charge, not suggest , but acceptable).
100%TT in advance (specially for air shipment or small amount).
7.Available Shipment:
FOB Qingdao
FOB Shanghai
FOB Tianjin
