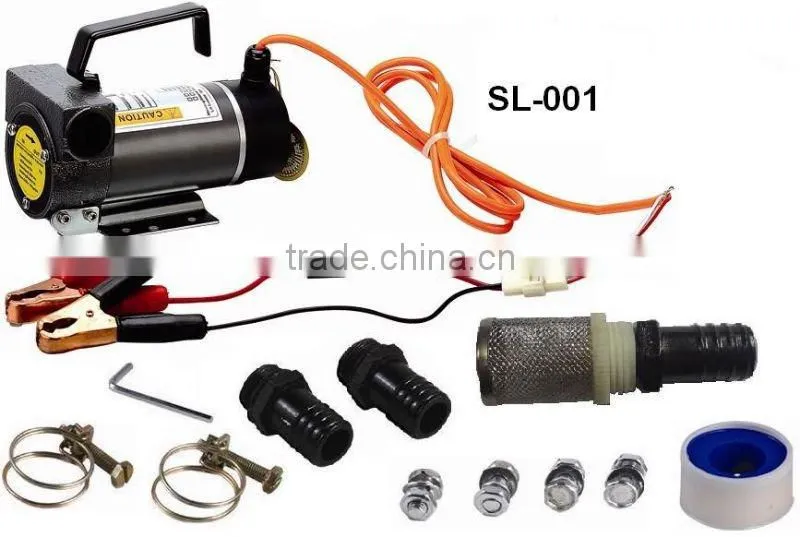

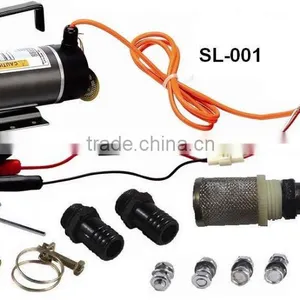

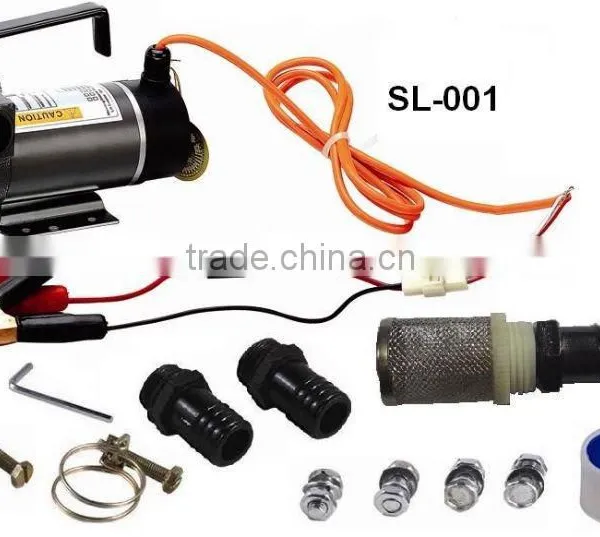

Help Center12volt Diesel Pump
Related Products
Specifications
12volt Diesel Pump1>Rated Current: 13A
2>Flow Rate: 33L/min
3>Suction Lift: 3m
4>Total Lift: 6m
1. Specification:
Art. Name: 12volt Diesel Pump Art. No.: KLR-01
| Packing: | QTY.: 6pcs/ctn | |
| G.W.: 28.5kgs | ||
| N.W.: 26kgs | ||
| Size of Carton: 51*31*34cm | ||
2. Operation Manual:
KELIER Self-Priming DC Diesel Pump
This manual for safety and precautions, before use please read following items carefully to reduce pump damage.
Add some diesel in pump house before start Motor to ensure Maximum suction when first operate.
1> The self-priming pump only for pumping Diesel, do not pump low ignition oil like Gasoline and high viscous oil like Engine Oil
2> caution connected Voltage suit with pump’s Rated Voltage. Voltage Tolerance not exceed ±12%
3> Direct Current electrode divided into Anode (+) and Negative (-), Red wire is Anode. Don’t connect electrode wrong or pump Motor reversed and no diesel output.
4> do connect pipe to suction port and output port completely as arrow indicate and ensure no leakage to guarantee efficient Suction flow.
5> Install Filter in the end of Suction pipe to avoid solid and dust into motor house and damage rotor and impeller. Frequently eliminate dust on the surface of Filter iron net. Don’t coat denser net on Filter to avoide filter jammed to cause suction flow reduction and damage pump rotor. Filter Diesel denser by install a denser Filter in the end of outlet pipe.
6> Pump continually workable. Don’t idle more than 5 minutes or rotor and diaphragm friction heat too high and damage
Maintain pump by mechanical experts afte operating 500 hours
3. Technology and Function:
|
Rated Voltage (V) |
Rated Current (A) |
Flow rate (L/Min) |
Suction Lift (M) |
Total Lift (M) |
12 |
13 |
33 |
3 |
6 |
|
Lift Distance (M) |
Absorbing Distance(M) |
Speed Range (R/Min) |
Rated Torqueuction (W) |
no-load speed (R/Min) |
6 |
3 |
3000 |
200 |
4200 |
Diameter of Hose Barb: 25mm
4. Mulfunction Diagnosis and Elimination:
Mulfunction |
Reason |
Elimination |
first operate no stream in outlet pipe |
1.error connect (+) (-)electrode |
Right connect (+)(-)electrode |
2.leakage between pipe and suction port |
Adjust inlet pipe and screw fasten ring firmly |
|
3.didn’t add some diesel into motor house before operate |
Add some diesel in pump house |
|
Small stream in outlet pipe |
1.low connect voltage |
Rise voltage to rated voltage, caution not to over rated |
2.over suction Head and Total Head |
Ajudge Suction Head and Total Head |
5. Maintaining
Maintain Circle |
Maintain Way |
Per month |
|
