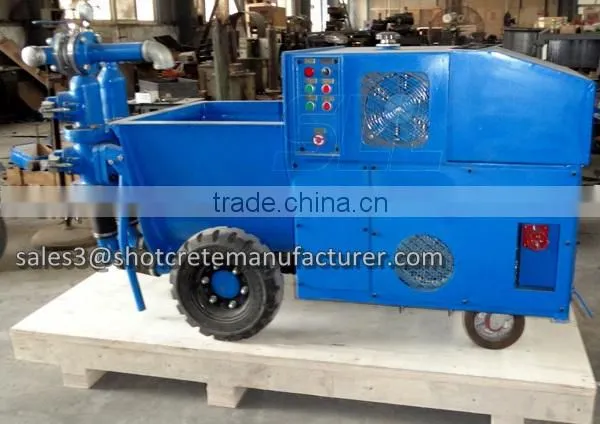

Help CenterHigh Pressure Mortar Pump, Mortar Pump With OutPut 60L/min
Related Products
-
High-pressure Slurry Pump, Mortar Pump With OutPut 60L/minUS$ 555 - 55,555MOQ: 1 Set -
High Quality Convery Mortar Pump With OutPut 60L/minUS$ 555 - 55,555MOQ: 1 Set
-
High Quality Convery Mortar Pump, Pump for Convery Cement Mortar, Mud MortarUS$ 555 - 55,555MOQ: 1 Set
-
Pump for Convery Cement Mortar, Mud MortarUS$ 555 - 55,555MOQ: 1 Set
-
SINCOLA-(60 L/min) Mortar Pump for Convery Cement MortarUS$ 555 - 55,555MOQ: 1 Set
Specifications
High Pressure Mortar PumpFor rail, tunnel,hydropower construction,slope consolidation subway
Pump and Convery Mortar
What is Convery Cement Mortar Pump?
Where can we buy high quality mortar pump?
Introduction Of High Pressure Mortar Pump
- Cement Mortar Pump with Double cylinder and double acting is widely used for its convenient maintenance, high working pressure and high efficiency, working reliability, compact structure etc.
- Mortar pump for Rail Tunnel is used not only for grouting cement mortar and sand mortar, combined with accessories such as compressor and spraying gun, it is also ideal equipment applied in spraying.
- Apply to grouting in mine gallery, underground engineering, rail and road tunnel, hydropower construction, slope consolidation,subway and civil engineering etc.
- Professional design,reasonable price, good after-sale service.
Technical Parameters of High Pressure Mortar Pump
Technical Parameters | |
Model: |
SG6050 |
Output |
60 L/min |
Cylinder Dia |
φ 90 mm |
Working Pressure |
5.5 MPa(55bar) |
Cylinder |
2 |
Piston stroke |
145 mm |
Piston Speed |
82 /min |
Inlet diameter |
75 mm |
Outlet diameter |
50 mm |
Max. Aggregate. size |
5 mm |
Cement/Sand |
≥ 1/3 |
Hopper Volume |
160L |
Conveying Dist. |
50-120m |
Power |
7.5 kW |
Transmission |
Hydraulic drive |
Overall Dimensions |
1400× 650× 920 mm |
Weight |
800 kg |
Applications Of Double-cylinder Mortar Pump
Mortar Pump is mainly applied for pumping or grouting mortar or the similar material.and always used for tunnel, mining project, dam, foundation engineering of big bridge and high-rise building, and the different kinds of underground engineering etc.
FAQ:
1. How many people that need to operate the mortar pump machine?
One or two workers can use it successfully.
2. What can we do, if the voltage isn't suit in our country?
We can change the voltage according to your requirements.
3. Available shipment port?
FOB SHANGHAI
FOB TIANJIN
FOB QINGDAO
4. How much is mortar pump machine price?
It's cheap than the other similar products!
5. Our company have some high quality mortar pump for sale,do you want to to buy?
Contact me,I'll give a reasonable quotation.
More question of Convery Cement Mortar Pump , please feel freely to contact me by following ways in time.
