Specifications
API 610 RMD Boiler Feed Water Pump is sectional caing, horizontal multi-stage centrifugal pump.

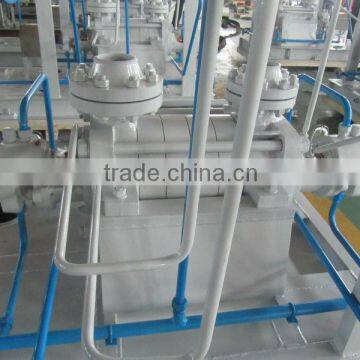

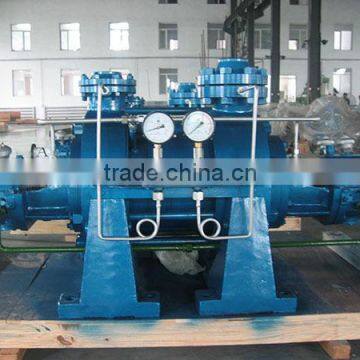

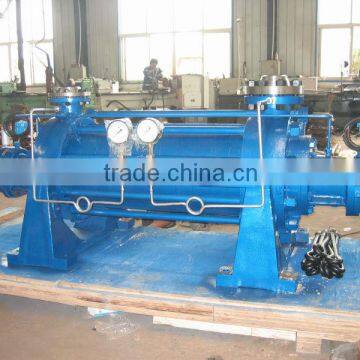

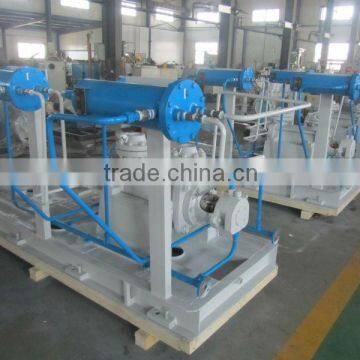

API 610 RMD Boiler Feed Water Pump
API 610 RMD Boiler Feed Water Pump
is sectional single caing, Radially split ,
horizontal multi-stage centrifugal pump.
Application
RMD high pressure multistage centrifugal pumps
are designed for water injection in oil field or
pumping any other high pressure liquid.
Performance Range:
Size:4-10inches(100-250mm)
Range of capacity:100-580m3/h.(440-2552gpm)(28-162l/s)
Range of total head:740-2150m.(2434-7073ft)
Temperature:0-210C(410F)
Material: Cast steel, SS304(L), SS316(L), SS316Ti, SS316L, CD4MCu
Shaft sealing
The shafts of these pumps are sealed by
soft-packing and cooled by cooling water.
In the region of shaft sealing, the pump
shaft is protected by renewable sleeve.
The mechanical seal can be used
according to the customers'requirement.
Bearings and axial balancing device
The rotating assembly is supported by
sliding bearings on both ends of the pump shaft.
The bearings of pump are forced lubricated.
The oil supply system is equipped for type RMD Pump.
The axial thrust of rotor is balanced by balance disc.
And the thrust bearing is also provided which is used
to bear extra axial force caused by the change of
working conditions.
Drive
The pump is directly driven by the motor through the coupling.
The gear, membrane coupling and hydraulic coupling
can be used according to customers' requirements.
The pump can be driven by turbine of motor.
The rotating direction of pump is clockwise when viewed
from the driving end.
SHIJIAZHUANG DAMEI KINGMECH PUMP CO., LTD( Kingmech Pump) is a professional and leading pump
manufacturer for mining and petro-oil industry in China.
Strong Products
Kingmech pump produces slurry pump, API610 cheminical pump,
Magnetic driven pump, and resistance wearing castings,
as well as spare parts. There has tens of series, more than
100 varieties, thoudsands of models.
The pumps are widely used in mining, metallurgy, coal mining,
power plant, petroleum, chemical, water supply and drainage
industry, and so on.
New Developed products
Kingmech Pump insists on expending product species
and technology. in recent years, we developed many
new products, including hi-chrome material A09
similar to ASTM A532III;
Titantium and Ti alloy pump and valves;
Horizontal froth pump;
Huge BB2 pump with self oil lubrication station
(kingbury bearings) ;
Carbon silicon bearing for VS4 pumps.
Breaking through technical problem,
we had already reached to produce
the max 15MT 20/18inches Slurry pump,
pump motor power achieved to 1000kw,
pump head reached 1100m, temperature
reached to 400°C. Specifications exceed
this can also be produced by us.
Technology
Kingmech pump developed the above pumps by importing
some advanced technology from some west countries,
America, Austrilia, Germany and Japan and etc.
Factory
Kingmech pump owns one slurry pump factory locates
in Shijiazhuang City,
one API610 petrol-oil pump factory in Shenyang City,
and one Chemical pumps & magnetic drive pump
factory in Dalian City.
Quality Control
We have very strictly QA/QC quality control system,
and provide quality control record and report,
such as 'main parts material physical and
chemical properties analysis report',
'rotor dynamic static balance report',
'hydrostatic test report',
'performance test report before delivery' .
Sales
Damei Kingmech’s pumps had been sold and applied to
Anglo-American, Barrick golden,Codeclo, BHP Billiton,
Philex copper mining, NFC mining,
Kazakhstan copper mining,
Kazakhstan zinc mining, India Aluminum mining,
Pakistan Fitama fertilizer plant etc.
Team
Kingmech Pump has proffessional senior engineers,
outstanding technicians. Also it has a professional
marketing team, they can speak english, russian,
spanish skillfully,
“FIRST CLASS QUALITY, ADVANCED TECHNIQUE,
FAIRY PRICE, IN TIME DELIVERY, BEST SERVICE.
is the operation principle of Kingmech Pump.
We sincerely welcome all the experts or friends all over
the world who are interested in our products to
do business with us.
